P_2x3T_132

P_2x3T_132_A

Production testing

Date:6/11/2007

Operator: Emily Grace

start testing time:9:29 AM

Sensor: S_2x3T_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W45_D3LQFLT 57B

ROC1 W45_D3LQFLT 57A

ROC2 W45_D3LQFLT 56C

ROC3 W45_D3LQFLT 39A

ROC4 W45_D3LQFLT 39B

ROC5 W45_D3LQFLT 39C

ROC	ROC wafer	Label
ROC0	W45_D3LQFLT	57B
ROC1	W45_D3LQFLT	57A
ROC2	W45_D3LQFLT	56C
ROC3	W45_D3LQFLT	39A
ROC4	W45_D3LQFLT	39B
ROC5	W45_D3LQFLT	39C

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 146 152 140 170 160 160

Vana, VanaData 145 135 133 166 149 148

CalDelData and plots 70 76 98 66 93 86

VthrCompData and plots 90 88 76 90 85 85

TestDdata ,TestD Plots 0 1 119 4 2 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD BAD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	100	95	100	95	95
Vsf	145	145	140	160	150	150
VoffsetOp	90	100	80	115	115	125
VIbias_PH	100	105	105	105	95	105

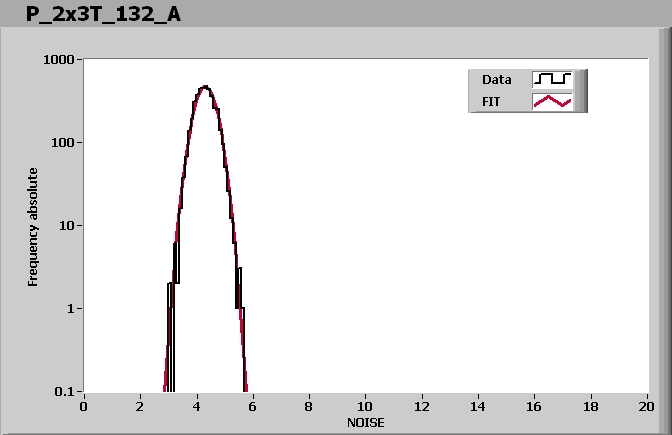

ROC0 NOISE			MEAN = 4.300878 SIGMA = 0.352323
ROC1 NOISE			MEAN = 4.334754 SIGMA = 0.319463
ROC2 NOISE			MEAN = 4.370213 SIGMA = 0.358733

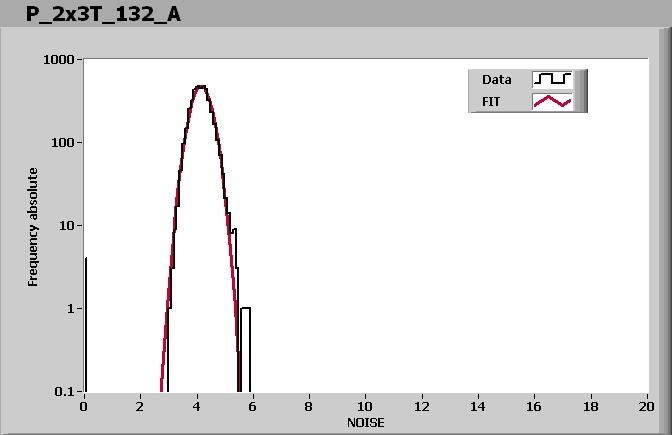

ROC3 NOISE			MEAN = 4.150252 SIGMA = 0.343368
ROC4 NOISE			MEAN = 3.980033 SIGMA = 0.326154
ROC5 NOISE			MEAN = 3.830321 SIGMA = 0.293537

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 9:55 AM

Ibias_DAC, Ibias_DAC Data	146	152	140	170	160	160
Vana, VanaData	145	135	133	166	149	148
CalDelData and plots	70	76	98	66	93	86
VthrCompData and plots	90	88	76	90	85	85
TestDdata ,TestD Plots	0	1	119	4	2	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	BAD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
