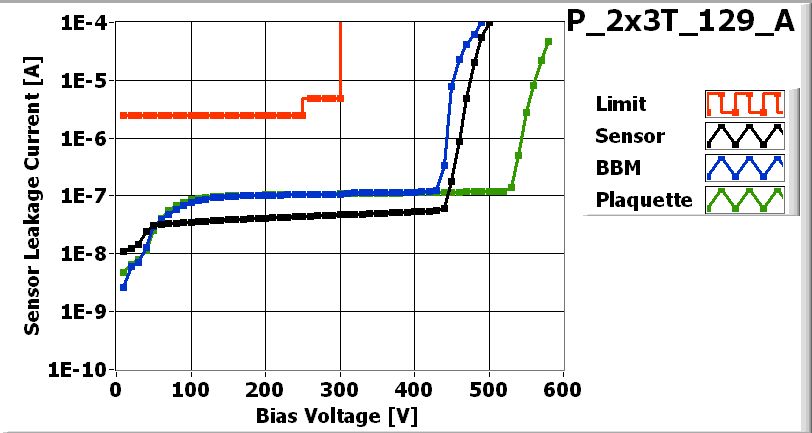

![[IMAGE] of](P_2x3T_129_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 580 V |

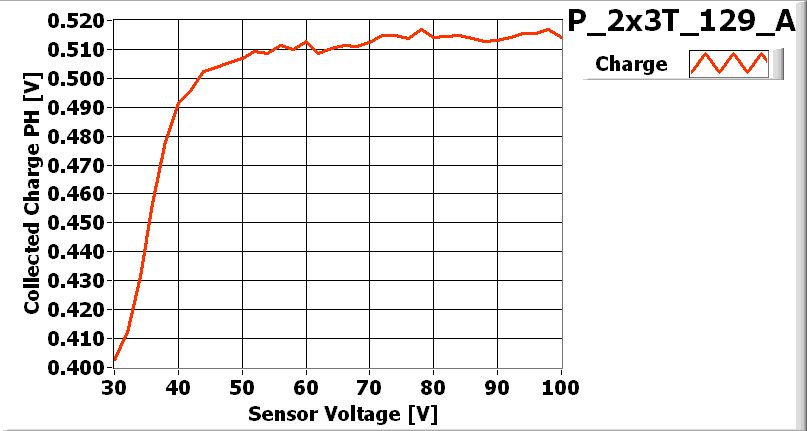

![[IMAGE] of](P_2x3T_129_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 4/23/2007
| Part | ID |
|---|---|
| BBM | BBM_129-2x3T |
| VHDI | 2x3_551 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W32_XA4K5NT | 23B |
| ROC1 | W32_XA4K5NT | 22C |
| ROC2 | W33_XC4K5LT | 15C |
| ROC3 | W31_X44K5UT | 73C |
| ROC4 | W31_X44K5UT | 74A |
| ROC5 | W31_X44K5UT | 74B |
Inspected by Arndt Kirk on date 4/26/2007
| LR_dev | 0.074 |
| LL_dev | 0.072 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Arndt Kirk | No assembly problems. ROC1 chn 1 three attempts, ROC4 chn 1 two attempts to bond. All wirebonds OK. |
PLAQUETTE made READY for ENCAPSULATION on 4/26/2007 by Arndt Kirk
PLAQUETTE encapsulated on 4/26/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/26/2007 by Ozhan Koybasi
P_2x3T_129_Aon 4/30/2007 1:16 PM
P_2x3T_129_Aon 4/30/2007 1:16 PM
PLAQUETTE TESTED on 2007-04-30 by mia tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 142 | 142 | 144 | 136 | 128 | 144 | |
| Vana | 137 | 126 | 140 | 133 | 129 | 140 | |
| Cal_Del | 74 | 87 | 81 | 79 | 84 | 79 | |
| Vthrs_Comp | 73 | 76 | 88 | 76 | 77 | 79 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

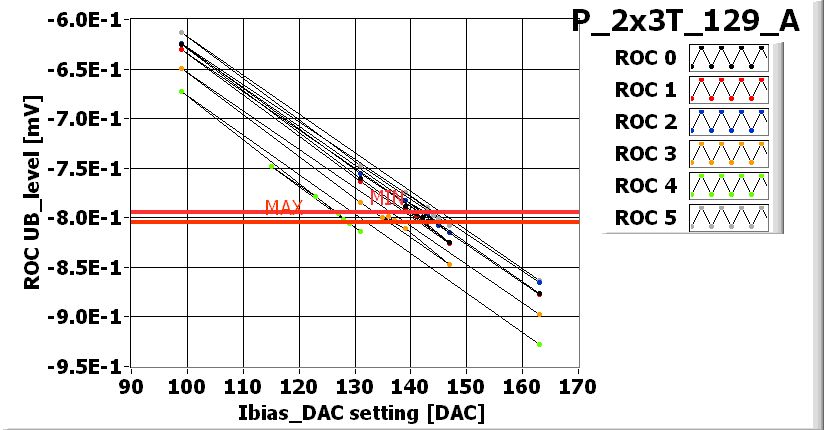

![[IMAGE] of](P_2x3T_129_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

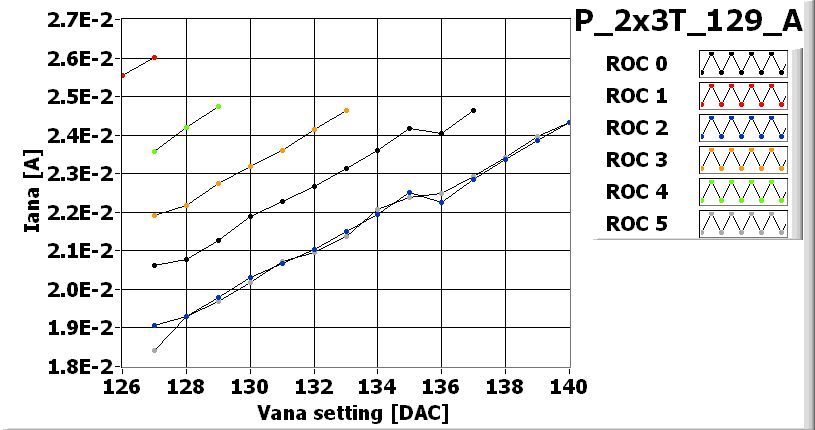

![[IMAGE] of](P_2x3T_129_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_129_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_129_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_129_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_129_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 125 | 105 | 115 | 125 | 100 |
| Vsf | 140 | 135 | 140 | 135 | 135 | 140 |
| VoffsetOp | 75 | 85 | 95 | 80 | 65 | 80 |
| VIbias_PH | 100 | 100 | 100 | 100 | 105 | 100 |

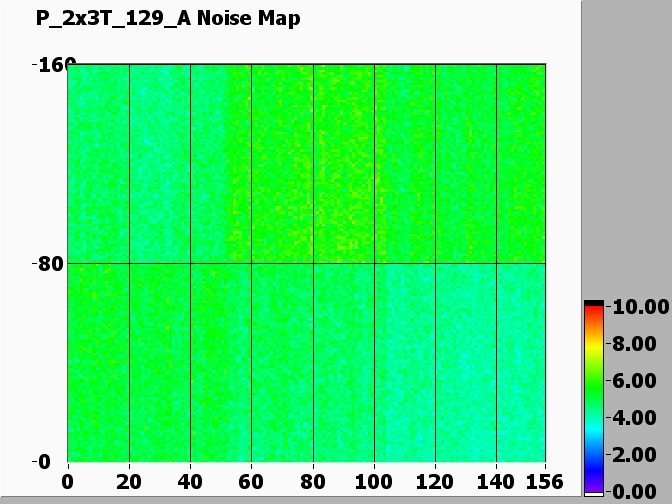

Noise MAP
![[IMAGE] of](P_2x3T_129_A-560-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_129_A-560-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
