P_2x3T_129

P_2x3T_129_A

Production testing

Date:4/30/2007

Operator: mia tosi

start testing time:1:16 PM

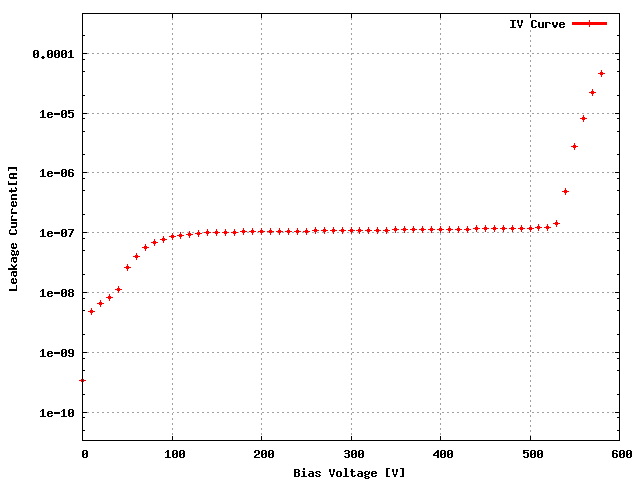

Sensor: S_2x3T_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W32_XA4K5NT 23B

ROC1 W32_XA4K5NT 22C

ROC2 W33_XC4K5LT 15C

ROC3 W31_X44K5UT 73C

ROC4 W31_X44K5UT 74A

ROC5 W31_X44K5UT 74B

ROC	ROC wafer	Label
ROC0	W32_XA4K5NT	23B
ROC1	W32_XA4K5NT	22C
ROC2	W33_XC4K5LT	15C
ROC3	W31_X44K5UT	73C
ROC4	W31_X44K5UT	74A
ROC5	W31_X44K5UT	74B

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 142 142 144 136 128 144

Vana, VanaData 137 126 140 133 129 140

CalDelData and plots 74 87 81 79 84 79

VthrCompData and plots 73 76 88 76 77 79

TestDdata ,TestD Plots 0 1 0 7 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	105	125	105	115	125	100
Vsf	140	135	140	135	135	140
VoffsetOp	75	85	95	80	65	80
VIbias_PH	100	100	100	100	105	100

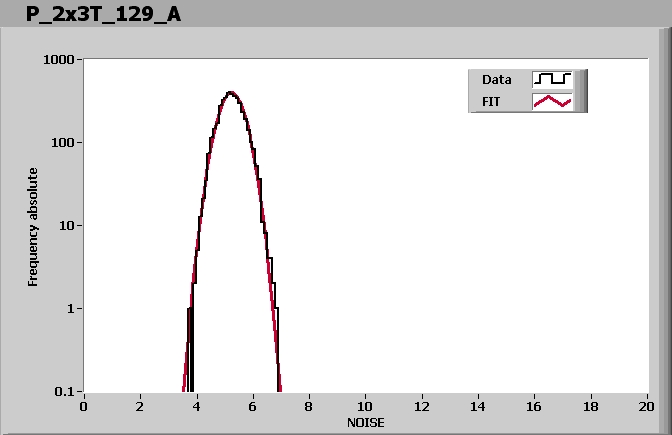

ROC0 NOISE			MEAN = 5.097327 SIGMA = 0.390079
ROC1 NOISE			MEAN = 4.710148 SIGMA = 0.366758
ROC2 NOISE			MEAN = 4.219184 SIGMA = 0.321631
ROC3 NOISE			MEAN = 5.234557 SIGMA = 0.421663
ROC4 NOISE			MEAN = 5.610269 SIGMA = 0.449655
ROC5 NOISE			MEAN = 4.657715 SIGMA = 0.385009

Comment (if any): good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:38 PM

Ibias_DAC, Ibias_DAC Data	142	142	144	136	128	144
Vana, VanaData	137	126	140	133	129	140
CalDelData and plots	74	87	81	79	84	79
VthrCompData and plots	73	76	88	76	77	79
TestDdata ,TestD Plots	0	1	0	7	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
