![[IMAGE] of](P_2x3T_123_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_123_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 11/8/2007
| Part | ID |
|---|---|
| BBM | BBM_123-2x3T |
| VHDI | 2x3_742 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W47_DXLQF5T | 12B |
| ROC1 | W47_DXLQF5T | 12A |
| ROC2 | W47_DXLQF5T | 11D |
| ROC3 | W55_D3LQE4T | 63C |
| ROC4 | W55_D3LQE4T | 64B |
| ROC5 | W55_D3LQE4T | 64C |
Inspected by Lockwood Gale on date 11/27/2007
| LR_dev | 0.053 |
| LL_dev | 0.059 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 5, Ch 33, 2FL, 2 tries, ROC 8 Ch 35, 2 FL 3 tries, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 11/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 11/28/2007 by Ozhan Koybasi
P_2x3T_123_Aon 11/28/2007 6:12 PM
P_2x3T_123_Aon 11/28/2007 6:12 PM
PLAQUETTE TESTED on 2007-11-28 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 150 | 146 | 158 | 156 | 168 | 146 | |
| Vana | 129 | 129 | 151 | 138 | 149 | 141 | |
| Cal_Del | 84 | 84 | 78 | 103 | 70 | 93 | |
| Vthrs_Comp | 89 | 92 | 88 | 77 | 90 | 88 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 1 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 1 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_123_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

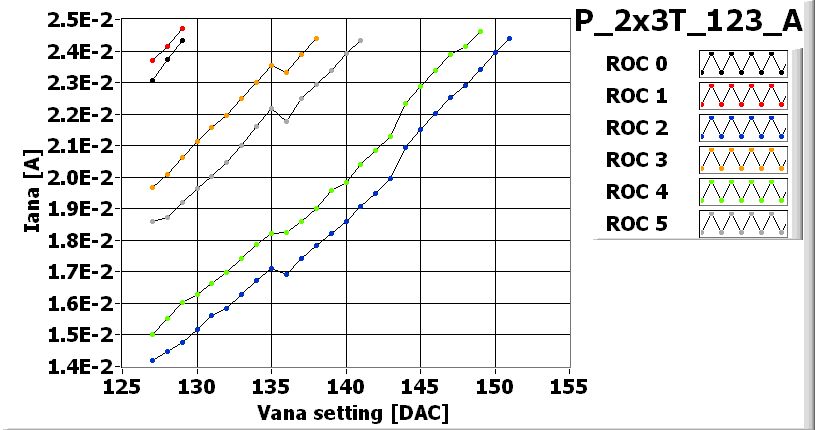

![[IMAGE] of](P_2x3T_123_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_123_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_123_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_123_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_123_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 115 | 95 | 85 | 95 | 105 |
| Vsf | 140 | 140 | 145 | 145 | 150 | 140 |
| VoffsetOp | 110 | 85 | 105 | 90 | 120 | 100 |
| VIbias_PH | 105 | 100 | 100 | 100 | 100 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3T_123_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_123_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x3T_123_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_123_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
