P_2x3T_123

P_2x3T_123_A

Production testing

Date:11/28/2007

Operator: Ozhan Koybasi

start testing time:6:12 PM

Sensor: S_2x3T_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W47_DXLQF5T 12B

ROC1 W47_DXLQF5T 12A

ROC2 W47_DXLQF5T 11D

ROC3 W55_D3LQE4T 63C

ROC4 W55_D3LQE4T 64B

ROC5 W55_D3LQE4T 64C

ROC	ROC wafer	Label
ROC0	W47_DXLQF5T	12B
ROC1	W47_DXLQF5T	12A
ROC2	W47_DXLQF5T	11D
ROC3	W55_D3LQE4T	63C
ROC4	W55_D3LQE4T	64B
ROC5	W55_D3LQE4T	64C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 150 146 158 156 168 146

Vana, VanaData 129 129 151 138 149 141

CalDelData and plots 84 84 78 103 70 93

VthrCompData and plots 89 92 88 77 90 88

TestDdata ,TestD Plots 3 0 1 1 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	115	115	95	85	95	105
Vsf	140	140	145	145	150	140
VoffsetOp	110	85	105	90	120	100
VIbias_PH	105	100	100	100	100	95

ROC0 NOISE			MEAN = 4.198886 SIGMA = 0.332231

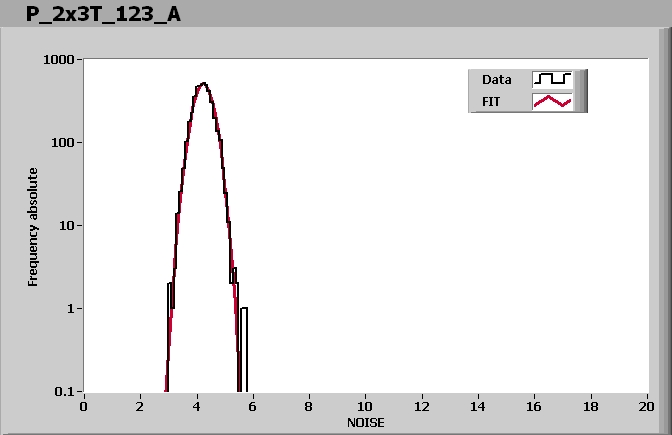

ROC1 NOISE			MEAN = 4.226940 SIGMA = 0.321665

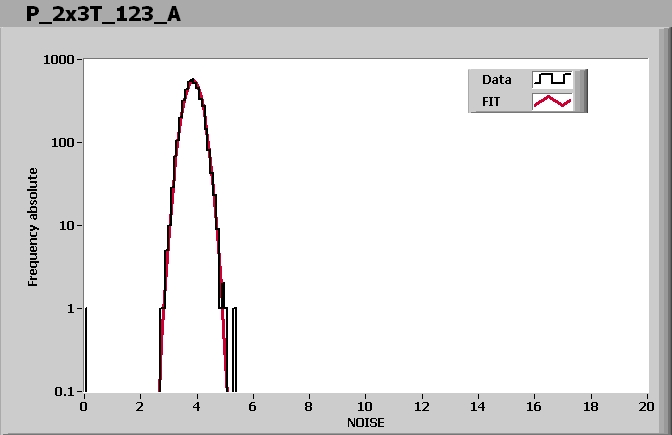

ROC2 NOISE			MEAN = 3.862511 SIGMA = 0.291462
ROC3 NOISE			MEAN = 3.808785 SIGMA = 0.289985

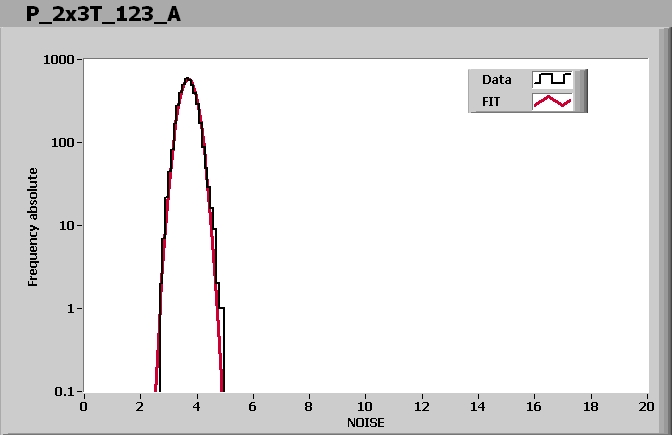

ROC4 NOISE			MEAN = 3.697598 SIGMA = 0.282915
ROC5 NOISE			MEAN = 4.007563 SIGMA = 0.300336

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 6:36 PM

Ibias_DAC, Ibias_DAC Data	150	146	158	156	168	146
Vana, VanaData	129	129	151	138	149	141
CalDelData and plots	84	84	78	103	70	93
VthrCompData and plots	89	92	88	77	90	88
TestDdata ,TestD Plots	3	0	1	1	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
