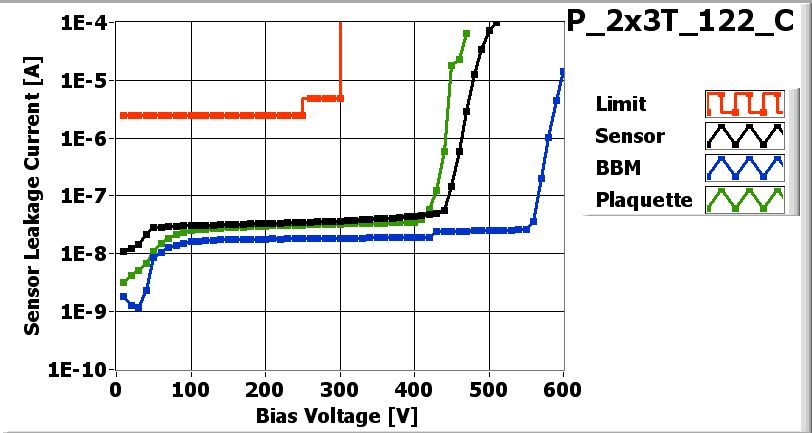

![[IMAGE] of](P_2x3T_122_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 470 V |

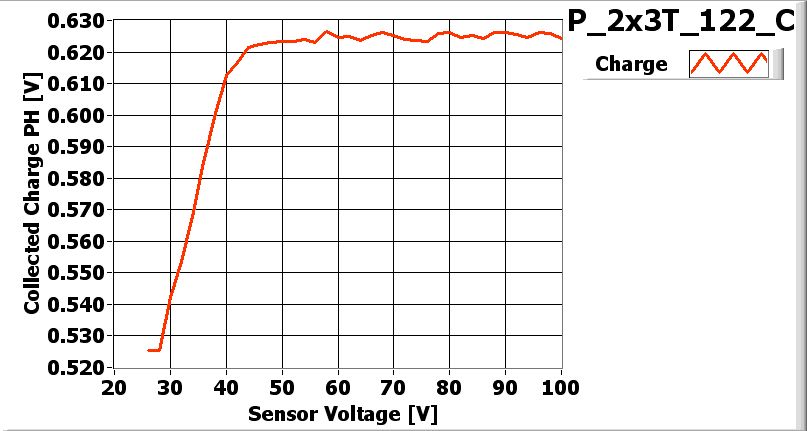

![[IMAGE] of](P_2x3T_122_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_122-2x3T |
| VHDI | 2x3_631 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 41A |
| ROC1 | KMNG2DT | 61C |
| ROC2 | KMNG2DT | 41D |
| ROC3 | KMNG2DT | 61D |
| ROC4 | KMNG2DT | 41B |
| ROC5 | KMNG2DT | 51A |
Inspected by Lockwood Gale on date 6/4/2007
| LR_dev | 0.060 |
| LL_dev | 0.064 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. ROC 0, Ch 20,21, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/4/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/4/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/4/2007 by Kozak Brian
P_2x3T_122_Con 6/5/2007 1:05 PM
P_2x3T_122_Con 6/5/2007 1:05 PM
PLAQUETTE TESTED on 2007-06-05 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 170 | 146 | 154 | 180 | 146 | 156 | |
| Vana | 131 | 132 | 139 | 151 | 122 | 126 | |
| Cal_Del | 66 | 91 | 71 | 81 | 67 | 76 | |
| Vthrs_Comp | 80 | 74 | 84 | 88 | 84 | 80 | |
| Unbumped | 43 | 1050 | 3 | 20 | 11 | 28 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 26 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 43 | 1050 | 3 | 20 | 11 | 54 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

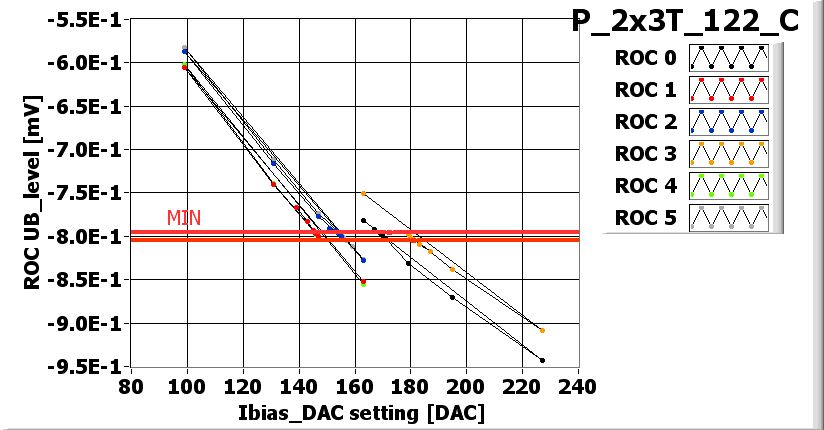

![[IMAGE] of](P_2x3T_122_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

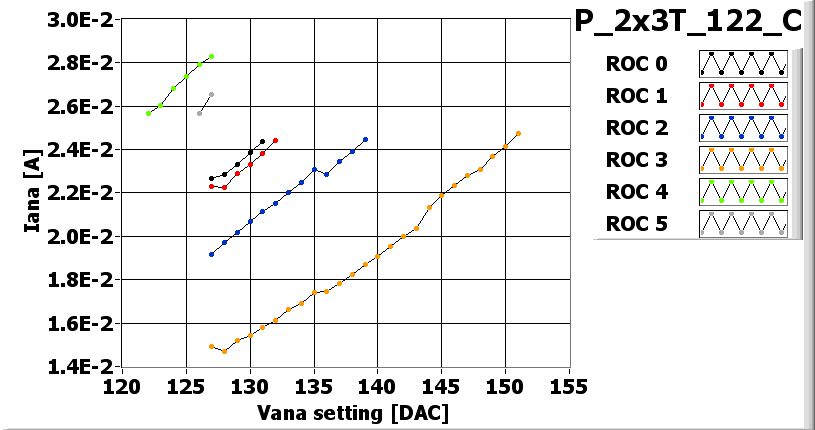

![[IMAGE] of](P_2x3T_122_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_122_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_122_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_122_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

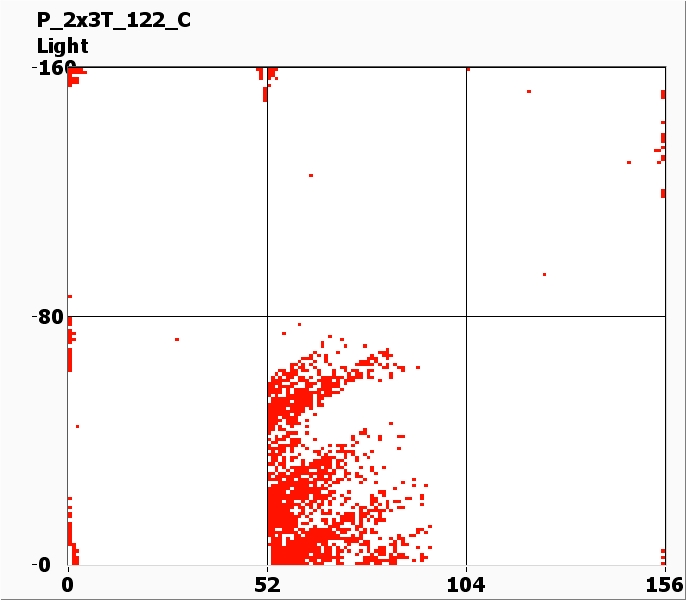

![[IMAGE] of](P_2x3T_122_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 120 | 115 | 105 | 160 | 130 |
| Vsf | 140 | 140 | 140 | 145 | 135 | 135 |
| VoffsetOp | 100 | 75 | 90 | 120 | 80 | 90 |
| VIbias_PH | 100 | 100 | 105 | 100 | 100 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3T_122_C-450-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_122_C-450-efficiency.jpg)

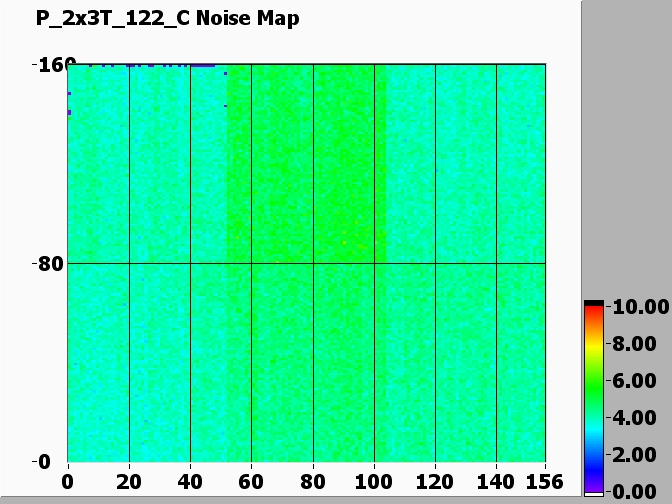

Noise MAP at -200 V
![[IMAGE] of](P_2x3T_122_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_122_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
