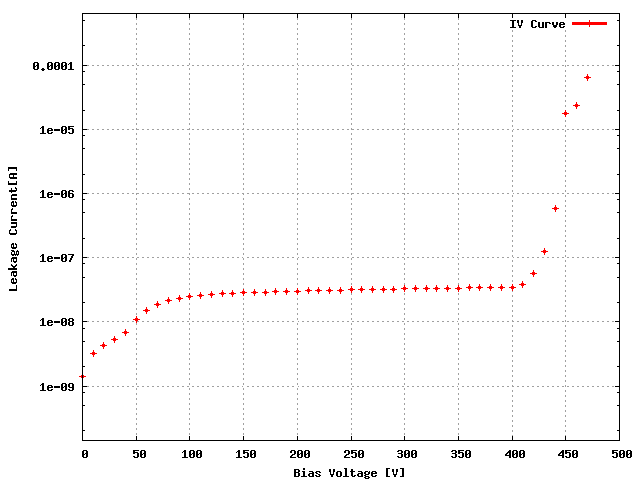

Sensor: S_2x3T_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | KMNG2DT | 41A |
ROC1 | KMNG2DT | 61C |
ROC2 | KMNG2DT | 41D |
ROC3 | KMNG2DT | 61D |
ROC4 | KMNG2DT | 41B |
ROC5 | KMNG2DT | 51A |
Ibias_DAC, Ibias_DAC Data | 170 | 146 | 154 | 180 | 146 | 156 |
Vana, VanaData | 131 | 132 | 139 | 151 | 122 | 126 |
CalDelData and plots | 66 | 91 | 71 | 81 | 67 | 76 |
VthrCompData and plots | 80 | 74 | 84 | 88 | 84 | 80 | Depletion Voltage is -44 and suggested operational voltage is -84
TestDdata ,TestD Plots | 1 | 76 | 1 | 1 | 3 | 107 |
LightData ,Light Plots | 43 | 1050 | 3 | 20 | 11 | 28 |
Pass/Fail TestD | GOOD | BAD | GOOD | GOOD | GOOD | BAD |
Pass/Fail LIGHT | BAD | BAD | GOOD | GOOD | GOOD | GOOD |

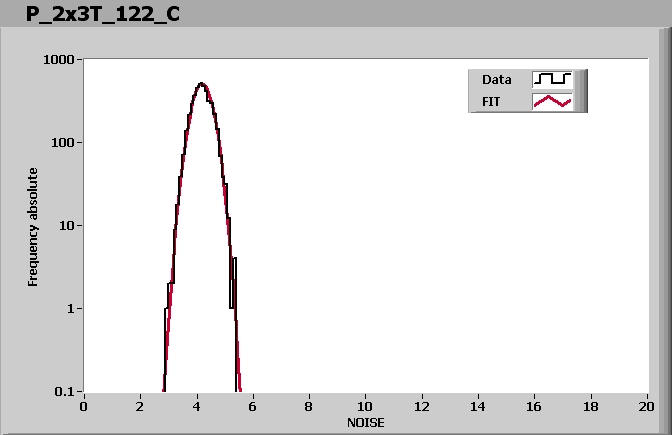

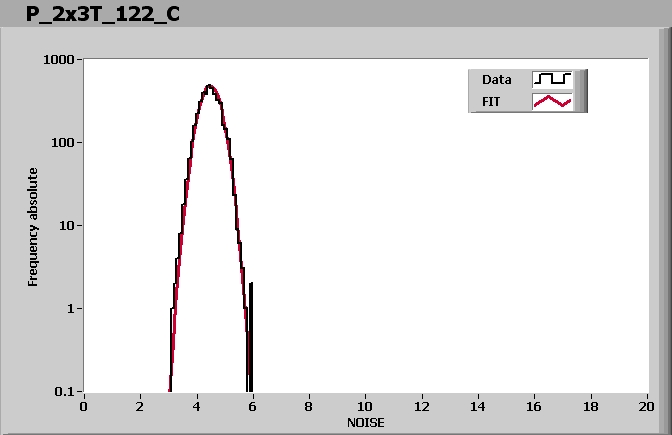

Noise MAP at VMAX
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 100 | 120 | 115 | 105 | 160 | 130 |
Vsf | 140 | 140 | 140 | 145 | 135 | 135 |
VoffsetOp | 100 | 75 | 90 | 120 | 80 | 90 |
VIbias_PH | 100 | 100 | 105 | 100 | 100 | 95 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:28 PM
