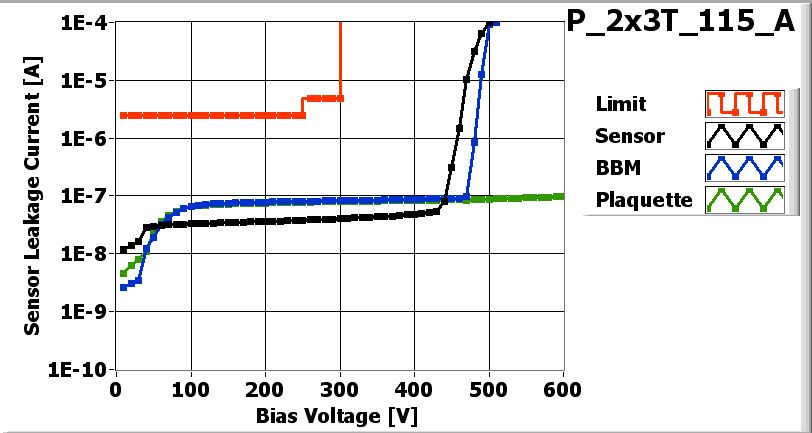

| IV_XML-File |
| Maximum Voltage 600 V |

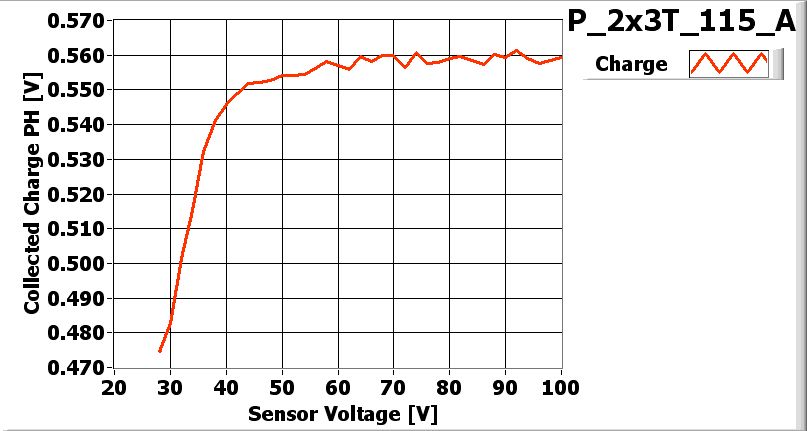

![[IMAGE] of](P_2x3T_115_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Arndt Kirk on date 3/1/2007
| Part | ID |
|---|---|
| BBM | BBM_115-2x3T |
| VHDI | 2x3_615 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 52C |
| ROC1 | W34_XA4K3PT | 52A |
| ROC2 | W34_XA4K3PT | 51D |
| ROC3 | W34_XA4K3PT | 48D |
| ROC4 | W34_XA4K3PT | 49A |
| ROC5 | W34_XA4K3PT | 49B |
Inspected by Arndt Kirk on date 3/9/2007
| LR_dev | 0.037 |
| LL_dev | 0.076 |
| FINAL COMMENT by Arndt Kirk | no assembly problems ROC1 chn 24,35; ROC2 chn 15 required multiple attempts to bond to VHDI pads. All wirebonds OK. |
PLAQUETTE made READY for ENCAPSULATION on 3/9/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/9/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/9/2007 by Ozhan Koybasi
P_2x3T_115_Aon 3/12/2007 12:51 PM
P_2x3T_115_Aon 3/12/2007 12:51 PM
PLAQUETTE TESTED on 2007-03-12 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 144 | 152 | 142 | 134 | 152 | 126 | |
| Vana | 123 | 139 | 140 | 127 | 151 | 123 | |
| Cal_Del | 100 | 92 | 83 | 90 | 72 | 78 | |
| Vthrs_Comp | 70 | 83 | 73 | 75 | 88 | 80 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

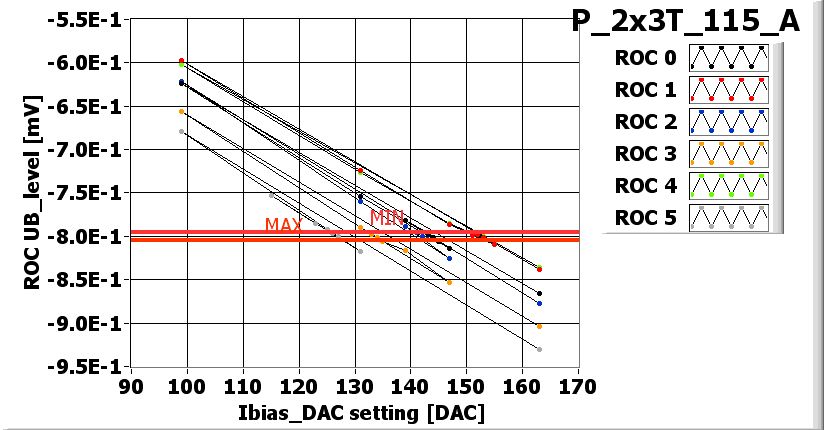

![[IMAGE] of](P_2x3T_115_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

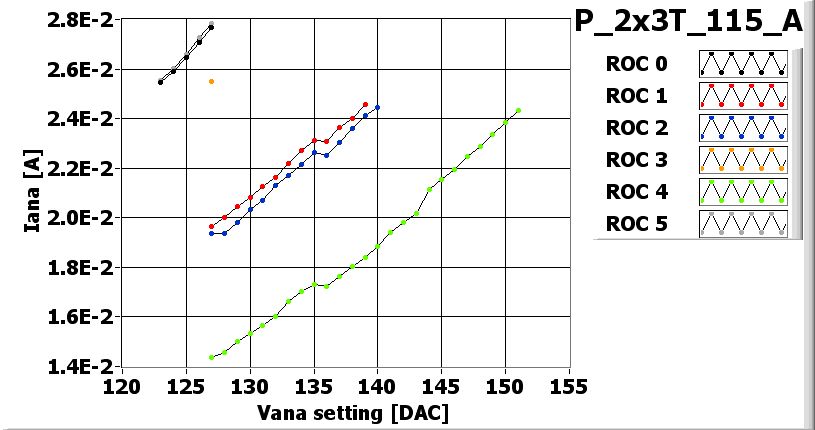

![[IMAGE] of](P_2x3T_115_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_115_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_115_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_115_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_115_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 140 | 90 | 95 | 140 | 105 | 165 |
| Vsf | 135 | 140 | 140 | 135 | 145 | 135 |
| VoffsetOp | 80 | 115 | 80 | 90 | 140 | 75 |
| VIbias_PH | 100 | 100 | 100 | 105 | 100 | 105 |

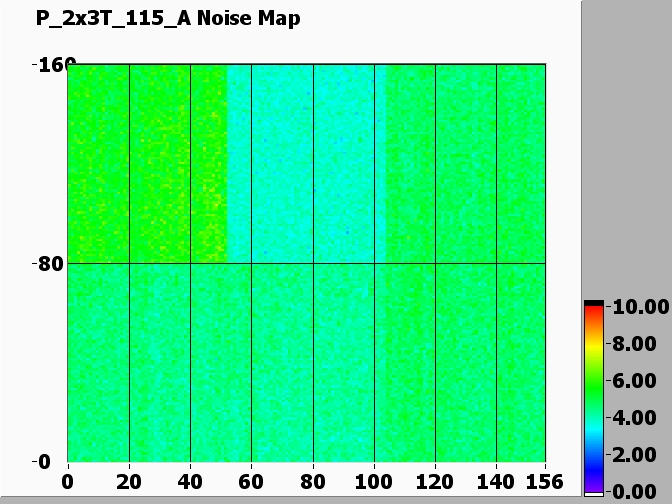

Noise MAP
![[IMAGE] of](P_2x3T_115_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_115_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
