| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_111_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 8/23/2007
| Part | ID |
|---|---|
| BBM | BBM_111-2x3T |
| VHDI | 2x3_689 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DWLQFTT | 54B |
| ROC1 | KNNGODT | 43D |
| ROC2 | DWLQFTT | 64D |
| ROC3 | DWLQFTT | 54A |
| ROC4 | DWLQFTT | 66A |
| ROC5 | DWLQFTT | 63B |
This plaquette was reworked. Old results here
Inspected by Arndt Kirk on date 8/28/2007
| LR_dev | 0.011 |
| LL_dev | 0.008 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Assembled at HALF-PRESSURE. No assembly problems. ROC0 ch 24,33,35; ROC1 ch 1; ROC2 ch 35 required multiple bond attempts to stick bonds to VHDI pads. No other wirebond problems. All wirebonds appear OK. |
PLAQUETTE made READY for ENCAPSULATION on 8/28/2007 by Arndt Kirk
PLAQUETTE encapsulated on 8/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 8/28/2007 by Ozhan Koybasi
P_2x3T_111_Con 8/30/2007 3:25 PM
P_2x3T_111_Con 8/30/2007 3:25 PM
PLAQUETTE TESTED on 2007-08-30 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 156 | 162 | 156 | 144 | 164 | 144 | |
| Vana | 142 | 121 | 159 | 139 | 150 | 137 | |
| Cal_Del | 85 | 78 | 88 | 96 | 79 | 86 | |
| Vthrs_Comp | 87 | 77 | 91 | 79 | 91 | 86 | |
| Unbumped | 0 | 2 | 9 | 73 | 548 | 30 | |
| Dead | 0 | 2 | 0 | 0 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 4 | 9 | 73 | 549 | 30 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_111_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_111_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_111_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_111_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_111_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_111_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 150 | 95 | 95 | 100 | 115 |
| Vsf | 140 | 140 | 155 | 140 | 150 | 140 |
| VoffsetOp | 95 | 55 | 110 | 85 | 115 | 90 |
| VIbias_PH | 105 | 105 | 100 | 100 | 100 | 105 |
Noise MAP at VMAX

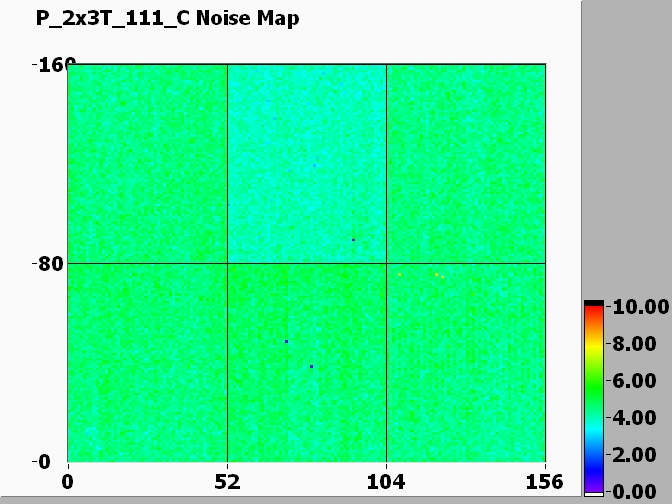

![[IMAGE] of](P_2x3T_111_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_111_C-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x3T_111_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_111_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
