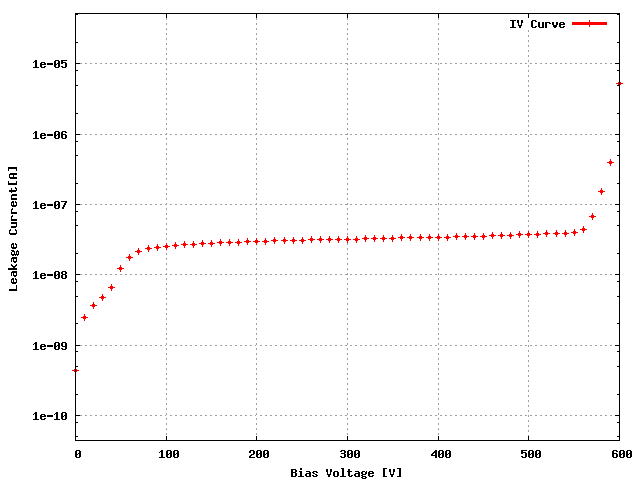

Sensor: S_2x3T_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XH4KFBT	13D
ROC1	XH4KFBT	22D
ROC2	XH4KFBT	12A
ROC3	XH4KFBT	15B
ROC4	XH4KFBT	06C
ROC5	XH4KFBT	15A

Inspected by Arndt Kirk on date 4/12/2007

Picture	Comment
	Wire bond metal off ROC2 bond pad for channel 21 CAP_GND. Looks like a possible short to a sturcture on the ROC connected to channels 31,32 VD+ (4th and 5th wirebond from the left in this picture). All other ROC-to-VHDI wirebonds look good on this plaquette. .

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	132	134	142	128	128	128
Vana, VanaData	141	134	127	124	137	125
CalDelData and plots	74	80	67	75	80	77
VthrCompData and plots	83	78	89	73	75	85
TestDdata ,TestD Plots	0	1	0	1	0	5
LightData ,Light Plots	1	2	0	1	0	6
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

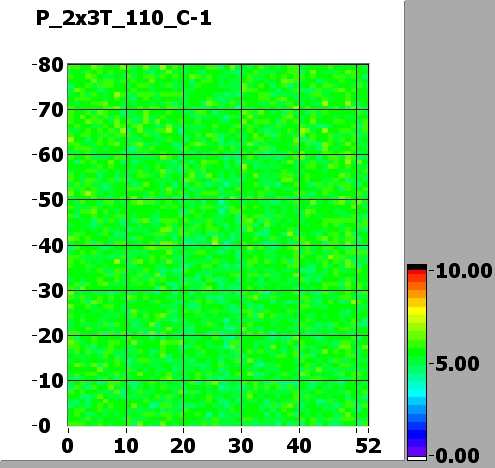

ROC0 NOISE			MEAN = 5.294677 SIGMA = 0.418168

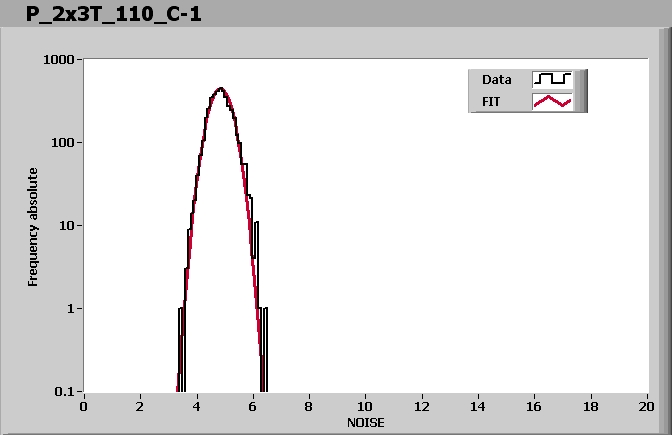

ROC1 NOISE			MEAN = 4.839011 SIGMA = 0.370619
ROC2 NOISE			MEAN = 4.336642 SIGMA = 0.343843
ROC3 NOISE			MEAN = 5.451477 SIGMA = 0.446827

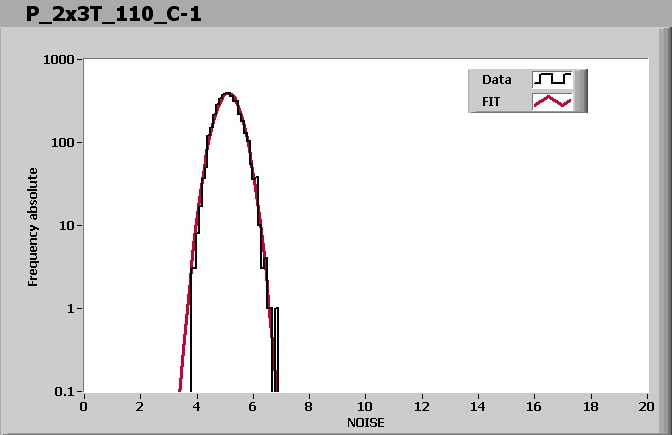

ROC4 NOISE			MEAN = 5.112278 SIGMA = 0.422260

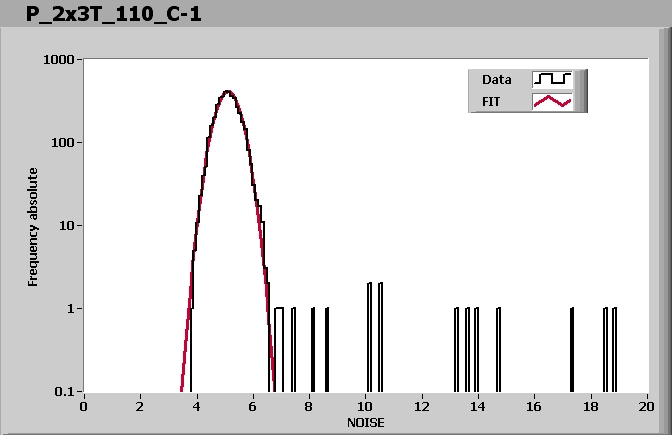

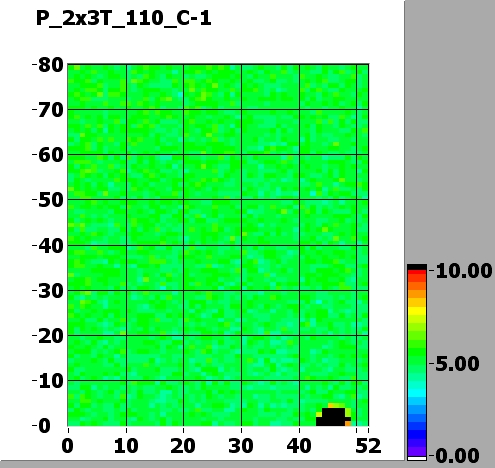

ROC5 NOISE			MEAN = 5.108815 SIGMA = 0.405866

Comment (if any): GOOD

P_2x3T_110_C.html,

End testing time: 12:45 PM
