P_2x3T_110

P_2x3T_110_C

Production testing

Date:4/12/2007

Operator: Gino Bolla

start testing time:1:57 PM

Sensor: S_2x3T_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 XH4KFBT 13D

ROC1 XH4KFBT 22D

ROC2 XH4KFBT 12A

ROC3 XH4KFBT 15B

ROC4 XH4KFBT 06C

ROC5 XH4KFBT 15A

ROC	ROC wafer	Label
ROC0	XH4KFBT	13D
ROC1	XH4KFBT	22D
ROC2	XH4KFBT	12A
ROC3	XH4KFBT	15B
ROC4	XH4KFBT	06C
ROC5	XH4KFBT	15A

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 132 134 142 128 128 128

Vana, VanaData 141 135 128 125 137 126

CalDelData and plots 74 80 67 76 80 77

VthrCompData and plots 83 79 90 74 75 86

TestDdata ,TestD Plots 0 2 0 1 0 4

LightData ,Light Plots 1 2 0 1 0 5

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

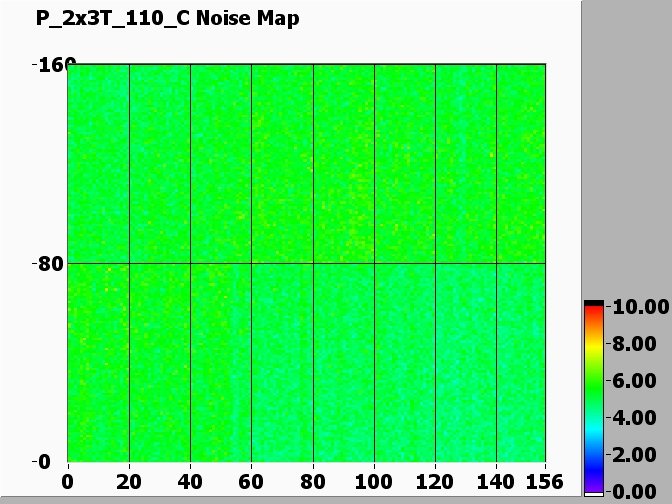

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	105	135	160	140	135
Vsf	145	140	140	140	140	140
VoffsetOp	70	75	80	65	85	70
VIbias_PH	100	105	105	100	105	95

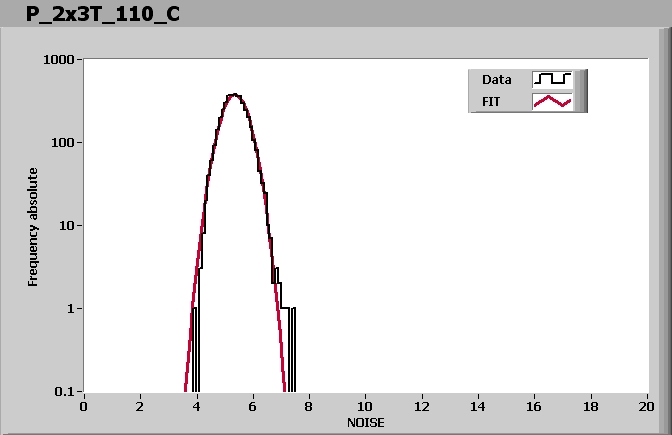

ROC0 NOISE			MEAN = 5.352875 SIGMA = 0.438035
ROC1 NOISE			MEAN = 4.911991 SIGMA = 0.412040

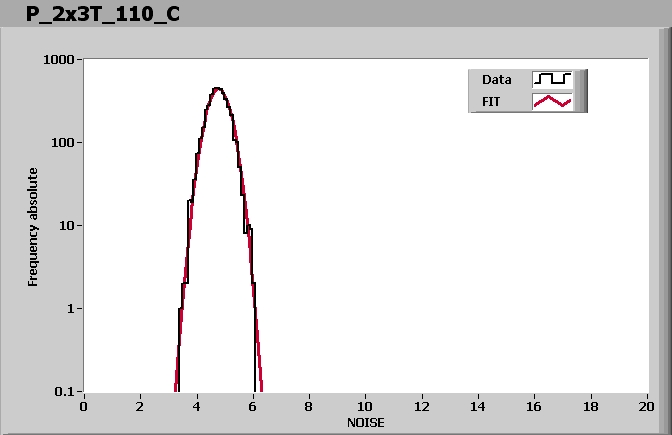

ROC2 NOISE			MEAN = 4.770521 SIGMA = 0.372249

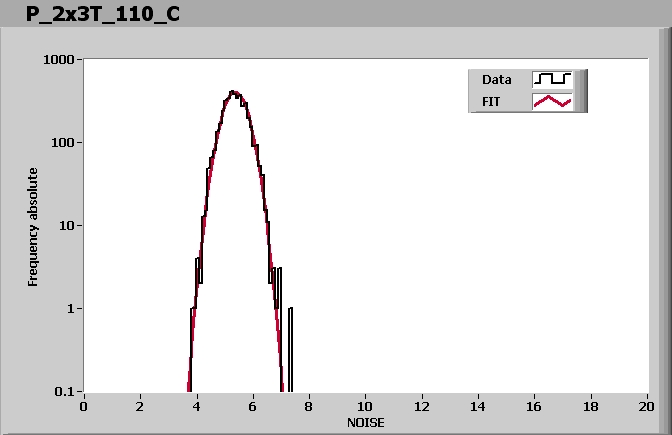

ROC3 NOISE			MEAN = 5.362065 SIGMA = 0.413970

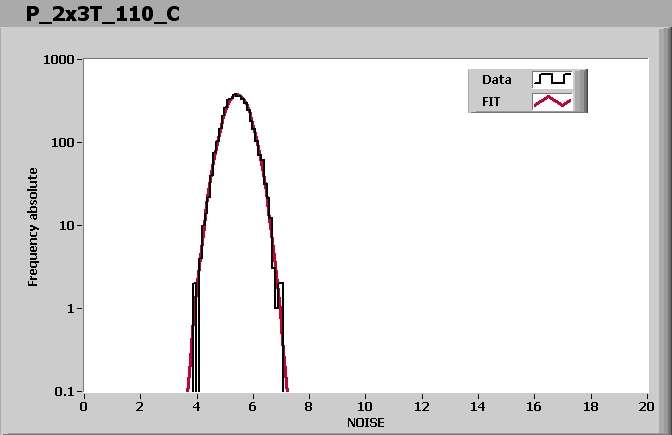

ROC4 NOISE			MEAN = 5.433375 SIGMA = 0.437587

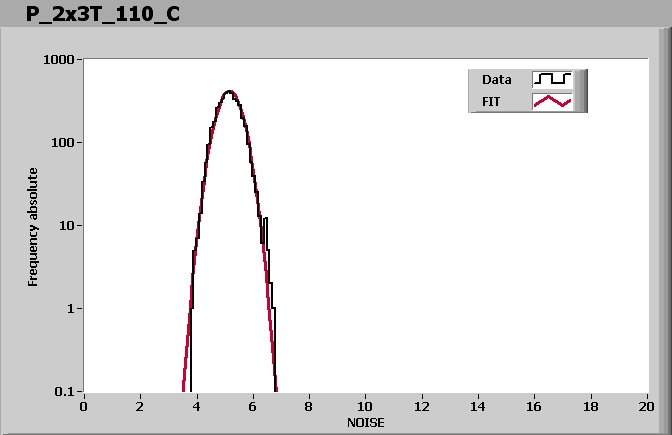

ROC5 NOISE			MEAN = 5.156865 SIGMA = 0.405187

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 2:16 PM

Ibias_DAC, Ibias_DAC Data	132	134	142	128	128	128
Vana, VanaData	141	135	128	125	137	126
CalDelData and plots	74	80	67	76	80	77
VthrCompData and plots	83	79	90	74	75	86
TestDdata ,TestD Plots	0	2	0	1	0	4
LightData ,Light Plots	1	2	0	1	0	5
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
