| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_101_A_LASER.jpg)
| LASER_XML-File |

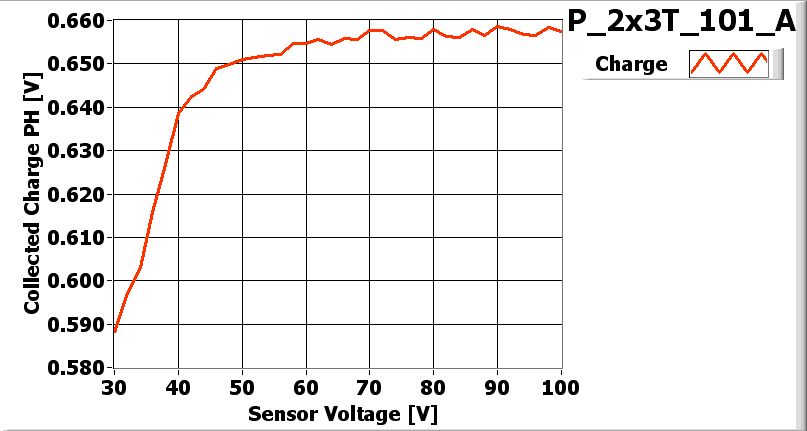

| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 2/9/2007
| Part | ID |
|---|---|
| BBM | BBM_101-2x3T |
| VHDI | 2x3_450 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W33_XC4K5LT | 44A |
| ROC1 | W33_XC4K5LT | 43D |
| ROC2 | W33_XC4K5LT | 43C |
| ROC3 | W33_XC4K5LT | 39A |
| ROC4 | W33_XC4K5LT | 39B |
| ROC5 | W33_XC4K5LT | 20A |
Inspected by Lockwood Gale on date 2/13/2007
| LR_dev | 0.072 |
| LL_dev | 0.084 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 2/13/2007 by Lockwood Gale
P_2x3T_101_Aon 2/16/2007 11:25 AM
P_2x3T_101_Aon 2/16/2007 11:25 AM
PLAQUETTE TESTED on 2007-02-16 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 136 | 128 | 138 | 134 | 144 | 128 | |
| Vana | 131 | 131 | 116 | 144 | 138 | 117 | |
| Cal_Del | 97 | 73 | 92 | 88 | 71 | 79 | |
| Vthrs_Comp | 68 | 78 | 64 | 80 | 80 | 74 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 3 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 3 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_101_A_Ibias-dac.jpg) |

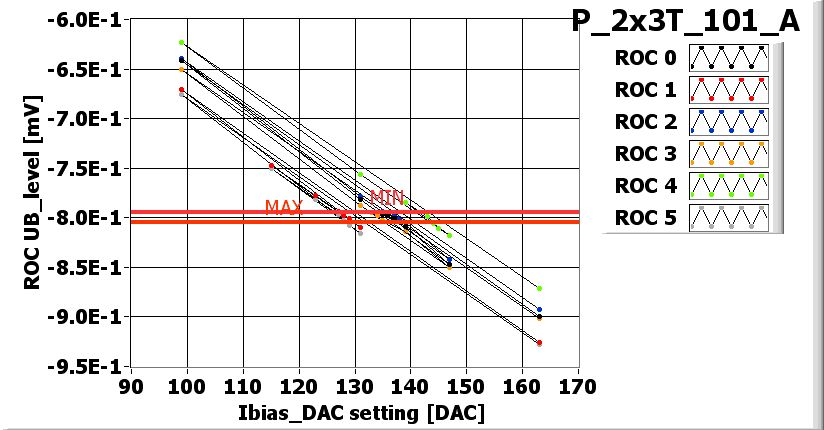

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_101_A_Vana.jpg) |

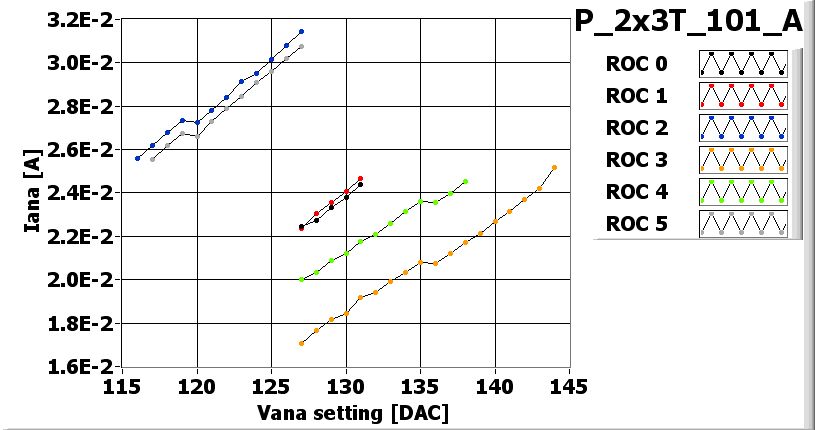

VANA_XML-File |
![[IMAGE] of](P_2x3T_101_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_101_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_101_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_101_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 125 | 145 | 90 | 125 | 130 |
| Vsf | 140 | 130 | 135 | 145 | 140 | 135 |
| VoffsetOp | 65 | 65 | 65 | 105 | 95 | 80 |
| VIbias_PH | 95 | 105 | 100 | 100 | 105 | 95 |

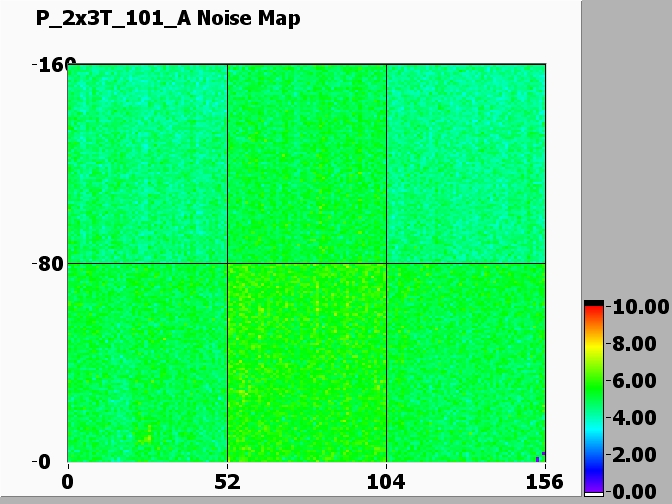

Noise MAP
![[IMAGE] of](P_2x3T_101_A-100-noise.jpg)

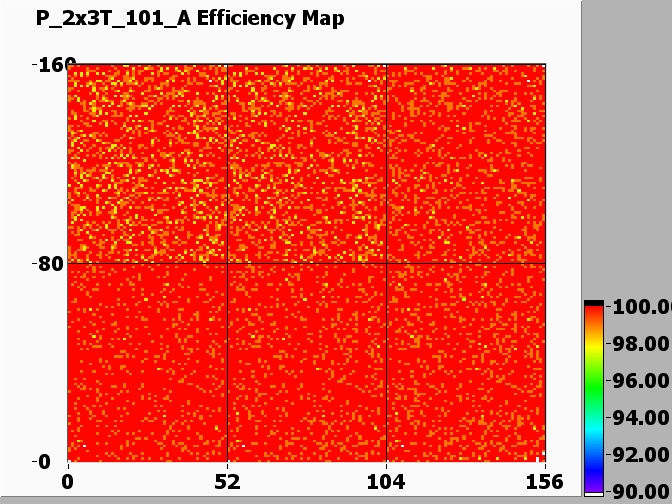

Efficiency MAP
![[IMAGE] of](P_2x3T_101_A-100-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 110 | 125 | 145 | 90 | 125 | 130 |
| Vsf | 140 | 130 | 135 | 145 | 140 | 135 |
| VoffsetOp | 65 | 65 | 65 | 105 | 95 | 80 |
| VIbias_PH | 95 | 105 | 100 | 100 | 105 | 95 |
PLAQUETTE READY TO BE POTTED
