P_2x3T_101

P_2x3T_101_A

Production testing

Date:2/16/2007

Operator: Cameron McKinney

start testing time:11:25 AM

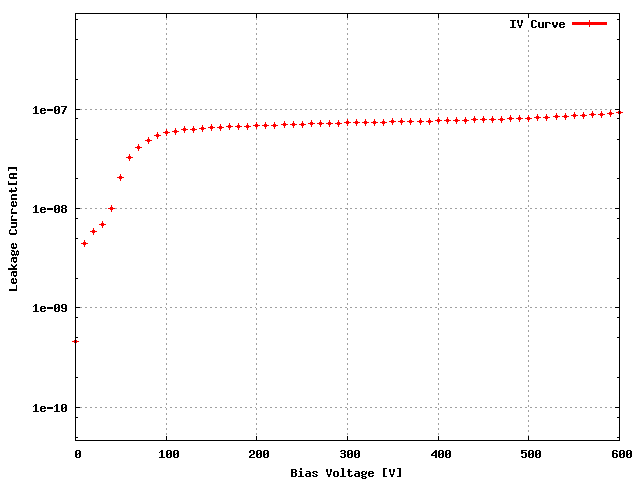

Sensor: S_2x3T_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W33_XC4K5LT 44A

ROC1 W33_XC4K5LT 43D

ROC2 W33_XC4K5LT 43C

ROC3 W33_XC4K5LT 39A

ROC4 W33_XC4K5LT 39B

ROC5 W33_XC4K5LT 20A

ROC	ROC wafer	Label
ROC0	W33_XC4K5LT	44A
ROC1	W33_XC4K5LT	43D
ROC2	W33_XC4K5LT	43C
ROC3	W33_XC4K5LT	39A
ROC4	W33_XC4K5LT	39B
ROC5	W33_XC4K5LT	20A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 136 128 138 134 144 128

Vana, VanaData 131 131 116 144 138 117

CalDelData and plots 97 73 92 88 71 79

VthrCompData and plots 68 78 64 80 80 74

TestDdata ,TestD Plots 0 0 3 0 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

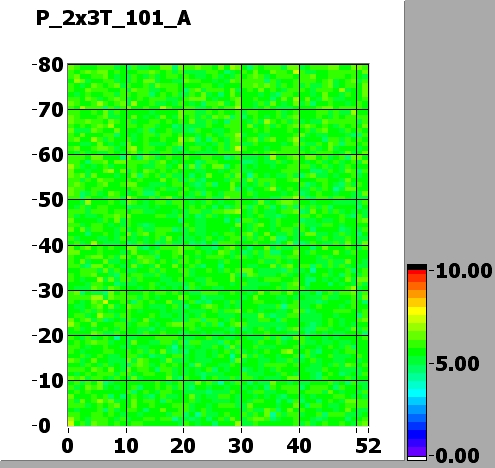

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	110	125	145	90	125	130
Vsf	140	130	135	145	140	135
VoffsetOp	65	65	65	105	95	80
VIbias_PH	95	105	100	100	105	95

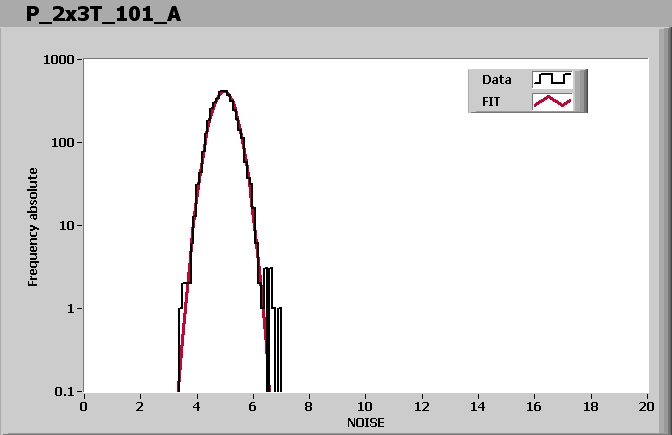

ROC0 NOISE			MEAN = 4.960963 SIGMA = 0.397447

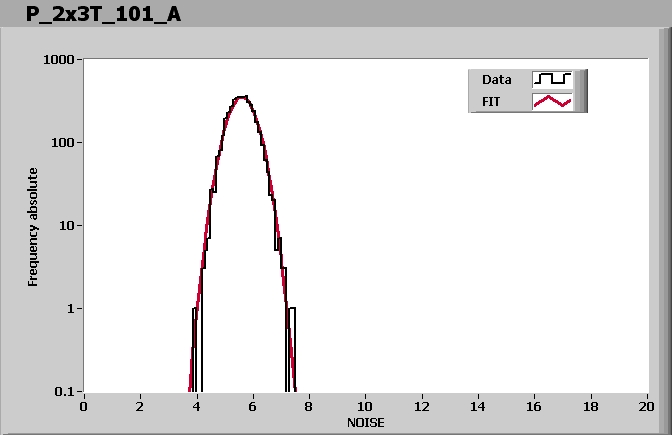

ROC1 NOISE			MEAN = 5.600036 SIGMA = 0.465030
ROC2 NOISE			MEAN = 4.990048 SIGMA = 0.373492

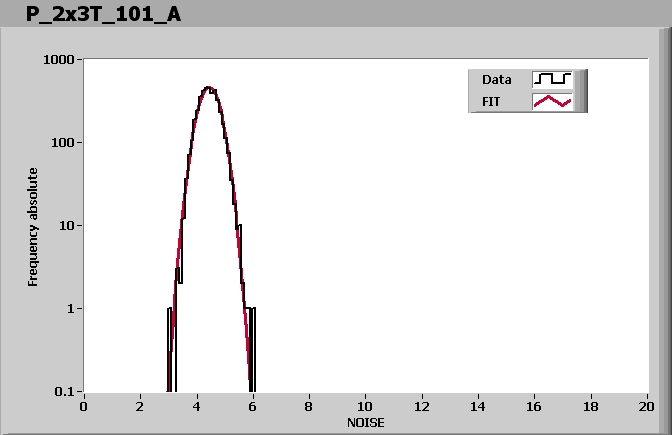

ROC3 NOISE			MEAN = 4.435452 SIGMA = 0.357461
ROC4 NOISE			MEAN = 5.014553 SIGMA = 0.388150
ROC5 NOISE			MEAN = 4.526407 SIGMA = 0.388683

Comment (if any): OK

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:46 AM

Ibias_DAC, Ibias_DAC Data	136	128	138	134	144	128
Vana, VanaData	131	131	116	144	138	117
CalDelData and plots	97	73	92	88	71	79
VthrCompData and plots	68	78	64	80	80	74
TestDdata ,TestD Plots	0	0	3	0	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
