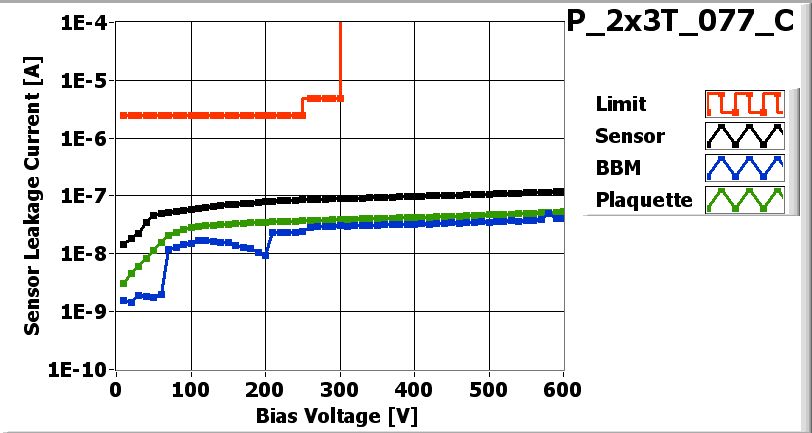

![[IMAGE] of](P_2x3T_077_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

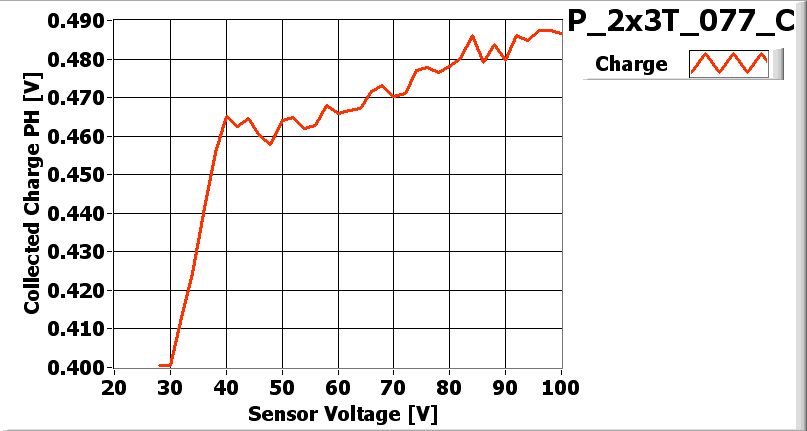

![[IMAGE] of](P_2x3T_077_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 4/17/2007
| Part | ID |
|---|---|
| BBM | BBM_077-2x3T |
| VHDI | 2x3_542 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X94KFJT | 27C |
| ROC1 | X94KFJT | 27B |
| ROC2 | X94KFJT | 27D |
| ROC3 | X94KFJT | 17A |
| ROC4 | X94KFJT | 47D |
| ROC5 | X94KFJT | 37C |
Inspected by Lockwood Gale on date 4/20/2007
| LR_dev | 0.058 |
| LL_dev | 0.068 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/20/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/20/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/20/2007 by Ozhan Koybasi
P_2x3T_077_Con 4/23/2007 3:31 PM
P_2x3T_077_Con 4/23/2007 3:31 PM
PLAQUETTE TESTED on 2007-04-23 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 136 | 144 | 140 | 124 | 134 | 142 | |
| Vana | 120 | 118 | 123 | 137 | 130 | 143 | |
| Cal_Del | 84 | 75 | 102 | 86 | 77 | 85 | |
| Vthrs_Comp | 85 | 72 | 74 | 76 | 75 | 73 | |
| Unbumped | 0 | 0 | 1 | 1 | 0 | 6 | |
| Dead | 0 | 1 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 1 | 1 | 0 | 6 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_077_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

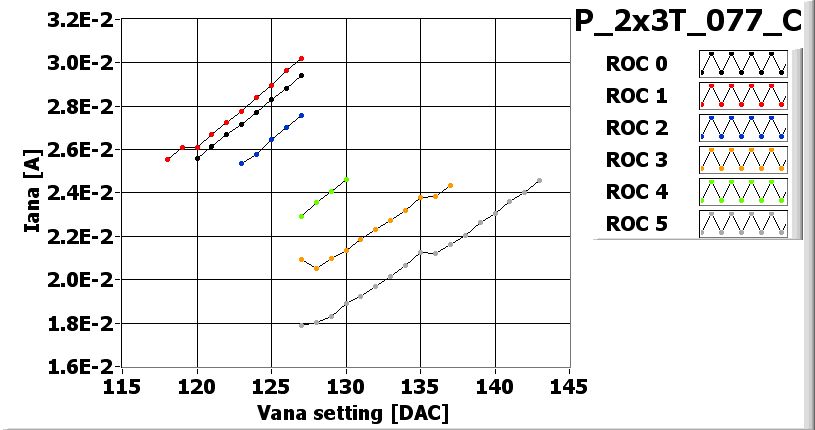

![[IMAGE] of](P_2x3T_077_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_077_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_077_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_077_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_077_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 160 | 145 | 145 | 125 | 120 | 85 |
| Vsf | 140 | 140 | 140 | 135 | 140 | 140 |
| VoffsetOp | 70 | 60 | 70 | 70 | 80 | 85 |
| VIbias_PH | 100 | 100 | 95 | 105 | 105 | 100 |

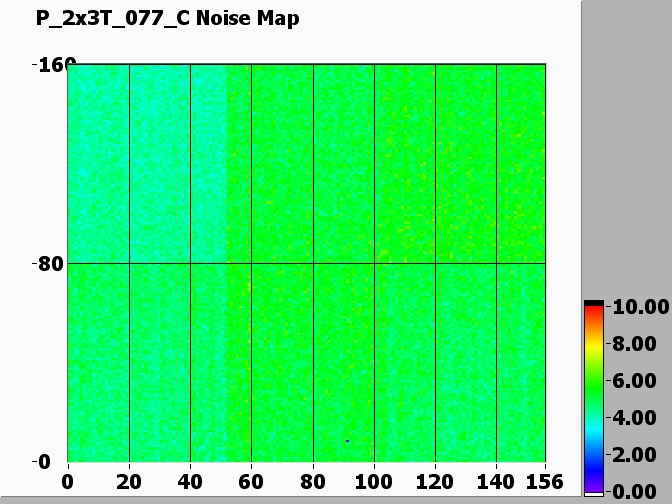

Noise MAP
![[IMAGE] of](P_2x3T_077_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_077_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
