P_2x3T_077

P_2x3T_077_C

Production testing

Date:4/23/2007

Operator: Gino Bolla

start testing time:3:31 PM

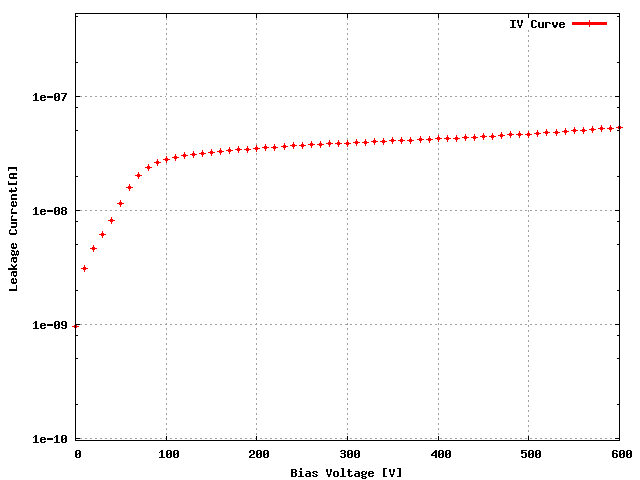

Sensor: S_2x3T_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 X94KFJT 27C

ROC1 X94KFJT 27B

ROC2 X94KFJT 27D

ROC3 X94KFJT 17A

ROC4 X94KFJT 47D

ROC5 X94KFJT 37C

ROC	ROC wafer	Label
ROC0	X94KFJT	27C
ROC1	X94KFJT	27B
ROC2	X94KFJT	27D
ROC3	X94KFJT	17A
ROC4	X94KFJT	47D
ROC5	X94KFJT	37C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 136 144 140 124 134 142

Vana, VanaData 120 118 123 137 130 143

CalDelData and plots 84 75 102 86 77 85

VthrCompData and plots 85 72 74 76 75 73

TestDdata ,TestD Plots 0 1 1 1 0 6

LightData ,Light Plots 0 0 1 1 0 6

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	160	145	145	125	120	85
Vsf	140	140	140	135	140	140
VoffsetOp	70	60	70	70	80	85
VIbias_PH	100	100	95	105	105	100

ROC0 NOISE			MEAN = 4.614107 SIGMA = 0.376445
ROC1 NOISE			MEAN = 5.175951 SIGMA = 0.410934
ROC2 NOISE			MEAN = 4.832579 SIGMA = 0.385610

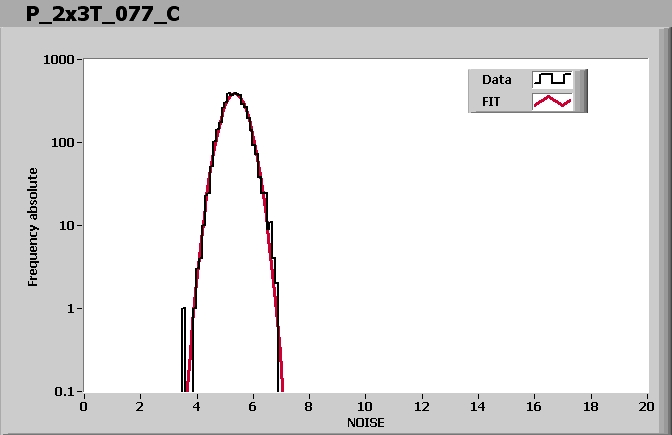

ROC3 NOISE			MEAN = 5.351309 SIGMA = 0.421419

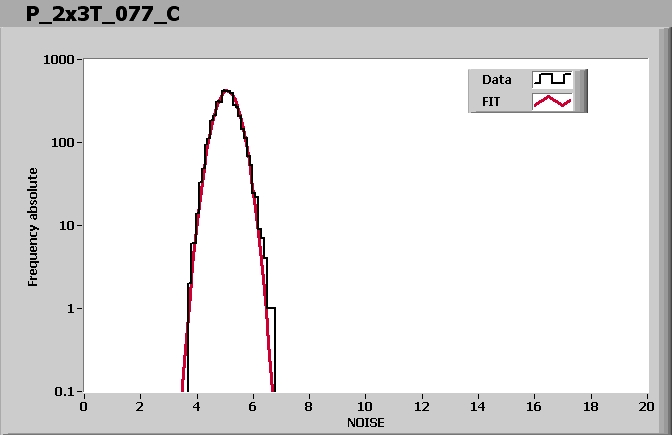

ROC4 NOISE			MEAN = 5.075849 SIGMA = 0.393616
ROC5 NOISE			MEAN = 4.196538 SIGMA = 0.315302

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 3:50 PM

Ibias_DAC, Ibias_DAC Data	136	144	140	124	134	142
Vana, VanaData	120	118	123	137	130	143
CalDelData and plots	84	75	102	86	77	85
VthrCompData and plots	85	72	74	76	75	73
TestDdata ,TestD Plots	0	1	1	1	0	6
LightData ,Light Plots	0	0	1	1	0	6
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
