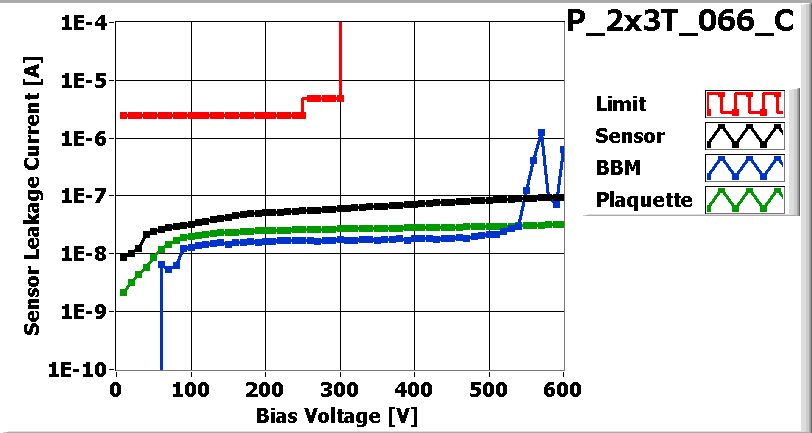

![[IMAGE] of](P_2x3T_066_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

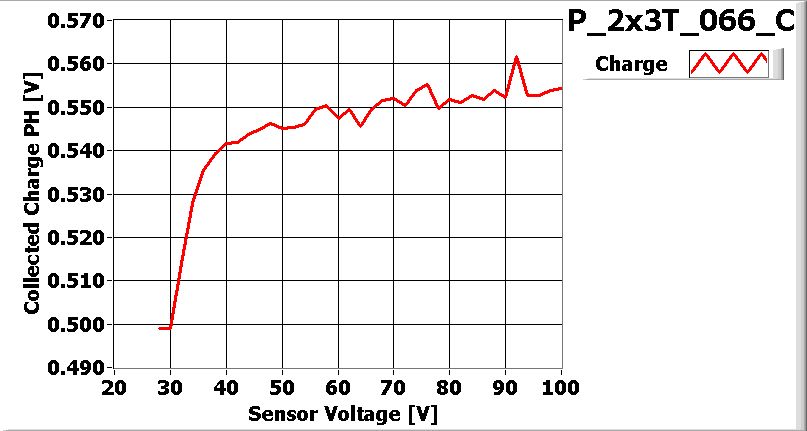

![[IMAGE] of](P_2x3T_066_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Bolla Gino on date 4/16/2007
| Part | ID |
|---|---|
| BBM | BBM_066-2x3T |
| VHDI | 2x3_539 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X94KFJT | 14C |
| ROC1 | X94KFJT | 63C |
| ROC2 | X94KFJT | 04A |
| ROC3 | X94KFJT | 14D |
| ROC4 | X94KFJT | 24D |
| ROC5 | X94KFJT | 64A |
Inspected by Lockwood Gale on date 4/20/2007
| LR_dev | 0.000 |
| LL_dev | 0.004 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/20/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/20/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/20/2007 by Ozhan Koybasi
P_2x3T_066_Con 4/23/2007 3:53 PM
P_2x3T_066_Con 4/23/2007 3:53 PM
PLAQUETTE TESTED on 2007-04-23 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 144 | 138 | 134 | 140 | 128 | 134 | |
| Vana | 139 | 130 | 135 | 113 | 140 | 131 | |
| Cal_Del | 83 | 83 | 91 | 83 | 93 | 90 | |
| Vthrs_Comp | 74 | 81 | 74 | 77 | 80 | 83 | |
| Unbumped | 1 | 0 | 0 | 3 | 4 | 13 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 3 | 4 | 13 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

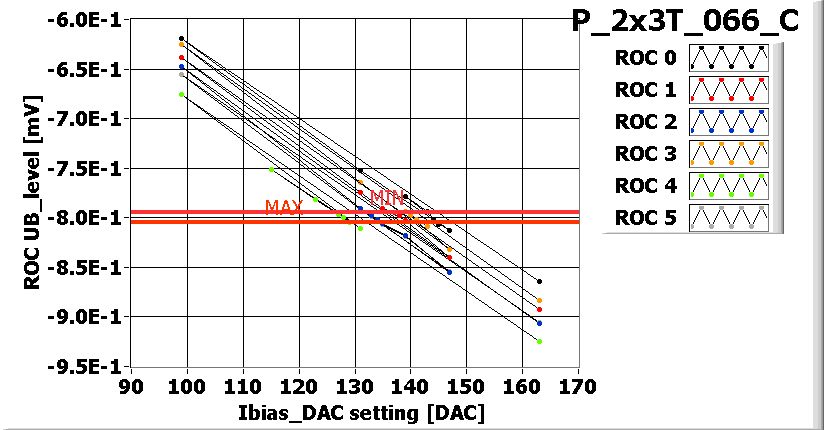

![[IMAGE] of](P_2x3T_066_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

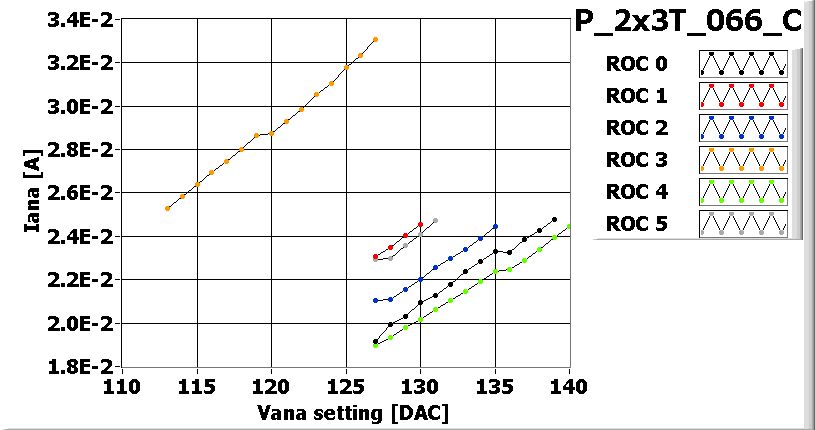

![[IMAGE] of](P_2x3T_066_C_Vana.jpg) |
VANA_XML-File |

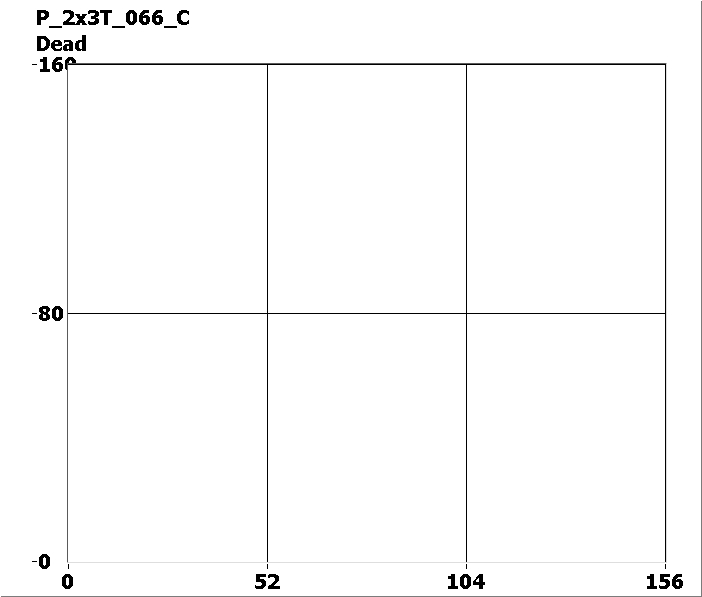

![[IMAGE] of](P_2x3T_066_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_066_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_066_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_066_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 125 | 100 | 165 | 105 | 135 |
| Vsf | 140 | 135 | 145 | 135 | 140 | 140 |
| VoffsetOp | 95 | 75 | 95 | 70 | 90 | 80 |
| VIbias_PH | 100 | 95 | 100 | 95 | 100 | 100 |
Noise MAP
![[IMAGE] of](P_2x3T_066_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_066_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
