P_2x3T_066

P_2x3T_066_C

Production testing

Date:4/23/2007

Operator: Gino Bolla

start testing time:3:53 PM

Sensor: S_2x3T_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 X94KFJT 14C

ROC1 X94KFJT 63C

ROC2 X94KFJT 04A

ROC3 X94KFJT 14D

ROC4 X94KFJT 24D

ROC5 X94KFJT 64A

ROC	ROC wafer	Label
ROC0	X94KFJT	14C
ROC1	X94KFJT	63C
ROC2	X94KFJT	04A
ROC3	X94KFJT	14D
ROC4	X94KFJT	24D
ROC5	X94KFJT	64A

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data 144 138 134 140 128 134

Vana, VanaData 139 130 135 113 140 131

CalDelData and plots 83 83 91 83 93 90

VthrCompData and plots 74 81 74 77 80 83

TestDdata ,TestD Plots 1 0 0 3 3 13

LightData ,Light Plots 1 0 0 3 4 13

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	125	100	165	105	135
Vsf	140	135	145	135	140	140
VoffsetOp	95	75	95	70	90	80
VIbias_PH	100	95	100	95	100	100

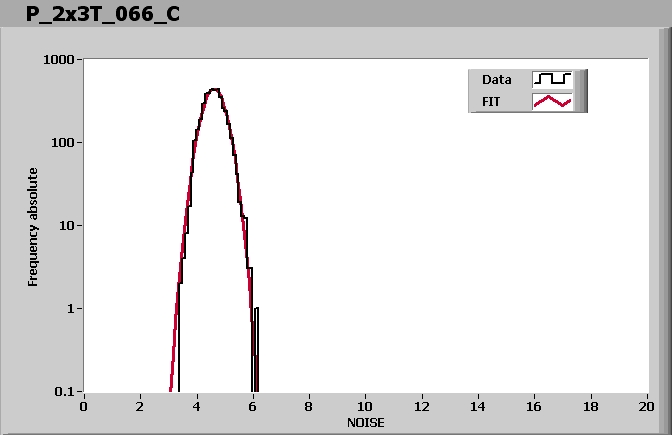

ROC0 NOISE			MEAN = 4.607359 SIGMA = 0.379437

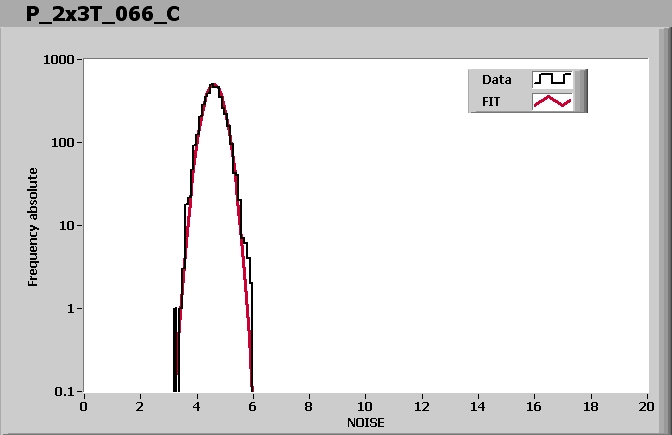

ROC1 NOISE			MEAN = 4.603665 SIGMA = 0.333229
ROC2 NOISE			MEAN = 5.109139 SIGMA = 0.407440
ROC3 NOISE			MEAN = 4.994849 SIGMA = 0.390119

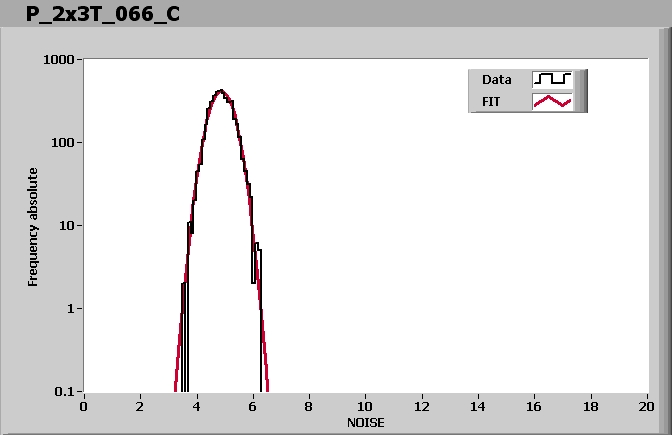

ROC4 NOISE			MEAN = 4.872566 SIGMA = 0.400335

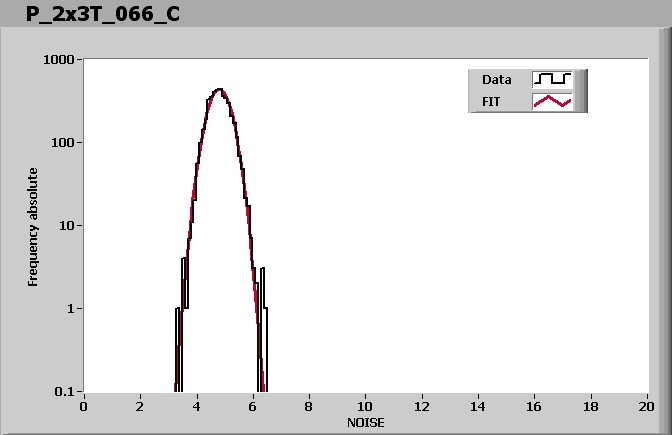

ROC5 NOISE			MEAN = 4.798540 SIGMA = 0.379471

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 4:13 PM

Ibias_DAC, Ibias_DAC Data	144	138	134	140	128	134
Vana, VanaData	139	130	135	113	140	131
CalDelData and plots	83	83	91	83	93	90
VthrCompData and plots	74	81	74	77	80	83
TestDdata ,TestD Plots	1	0	0	3	3	13
LightData ,Light Plots	1	0	0	3	4	13
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
