| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_062_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 4/2/2007
| Part | ID |
|---|---|
| BBM | BBM_062-2x3T |
| VHDI | 2x3_519 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XH4KFBT | 24D |
| ROC1 | XH4KFBT | 12B |
| ROC2 | XH4KFBT | 17A |
| ROC3 | XH4KFBT | 23C |
| ROC4 | XH4KFBT | 27C |
| ROC5 | XH4KFBT | 16A |
Inspected by Lockwood Gale on date 4/5/2007
| LR_dev | 0.070 |
| LL_dev | 0.056 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/5/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/5/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/5/2007 by Ozhan Koybasi
P_2x3T_062_Con 4/10/2007 9:49 AM
P_2x3T_062_Con 4/10/2007 9:49 AM
PLAQUETTE TESTED on 2007-04-10 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 130 | 130 | 132 | 124 | 126 | 136 | |
| Vana | 117 | 105 | 122 | 115 | 116 | 141 | |
| Cal_Del | 95 | 91 | 81 | 97 | 82 | 66 | |
| Vthrs_Comp | 72 | 68 | 71 | 56 | 73 | 90 | |
| Unbumped | 0 | 0 | 0 | 1 | 2 | 3 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 2 | 3 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

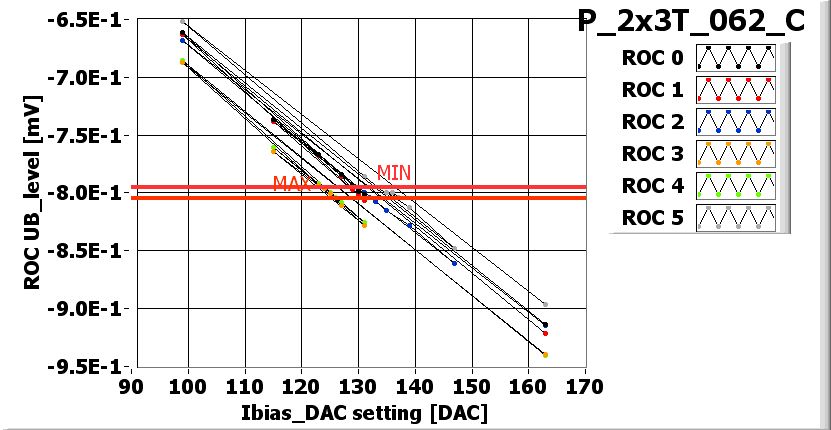

![[IMAGE] of](P_2x3T_062_C_Ibias-dac.jpg) |

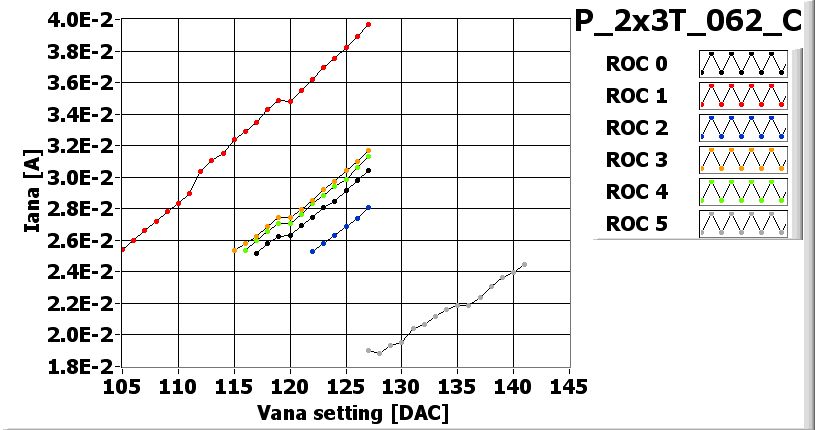

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_062_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_062_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_062_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_062_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_062_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 145 | 155 | 145 | 125 | 170 | 105 |
| Vsf | 135 | 130 | 125 | 130 | 160 | 145 |
| VoffsetOp | 65 | 75 | 45 | 50 | 50 | 95 |
| VIbias_PH | 100 | 100 | 100 | 105 | 95 | 100 |

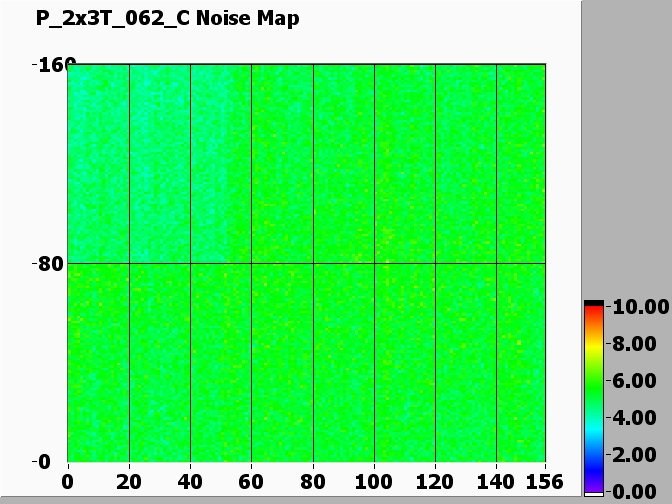

Noise MAP
![[IMAGE] of](P_2x3T_062_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_062_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
