P_2x3T_062

P_2x3T_062_C

Production testing

Date:4/10/2007

Operator: Gino Bolla

start testing time:9:49 AM

Sensor: S_2x3T_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 XH4KFBT 24D

ROC1 XH4KFBT 12B

ROC2 XH4KFBT 17A

ROC3 XH4KFBT 23C

ROC4 XH4KFBT 27C

ROC5 XH4KFBT 16A

ROC	ROC wafer	Label
ROC0	XH4KFBT	24D
ROC1	XH4KFBT	12B
ROC2	XH4KFBT	17A
ROC3	XH4KFBT	23C
ROC4	XH4KFBT	27C
ROC5	XH4KFBT	16A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 130 130 132 124 126 136

Vana, VanaData 117 105 122 115 116 141

CalDelData and plots 95 91 81 97 82 66

VthrCompData and plots 72 68 71 56 73 90

TestDdata ,TestD Plots 0 0 1 1 1 3

LightData ,Light Plots 0 0 0 1 2 3

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	145	155	145	125	170	105
Vsf	135	130	125	130	160	145
VoffsetOp	65	75	45	50	50	95
VIbias_PH	100	100	100	105	95	100

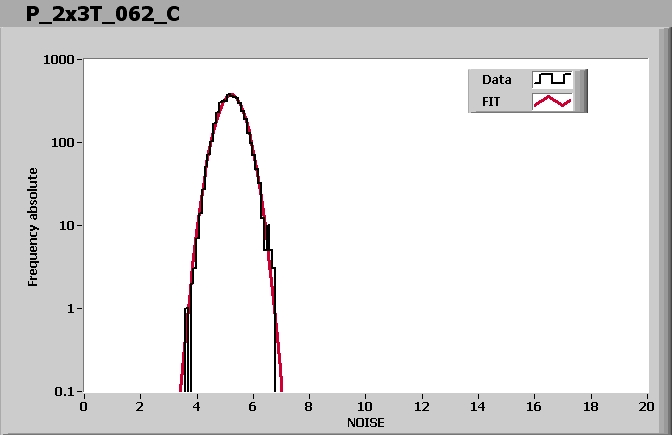

ROC0 NOISE			MEAN = 5.217648 SIGMA = 0.444914
ROC1 NOISE			MEAN = 5.319776 SIGMA = 0.414755
ROC2 NOISE			MEAN = 5.269092 SIGMA = 0.430452

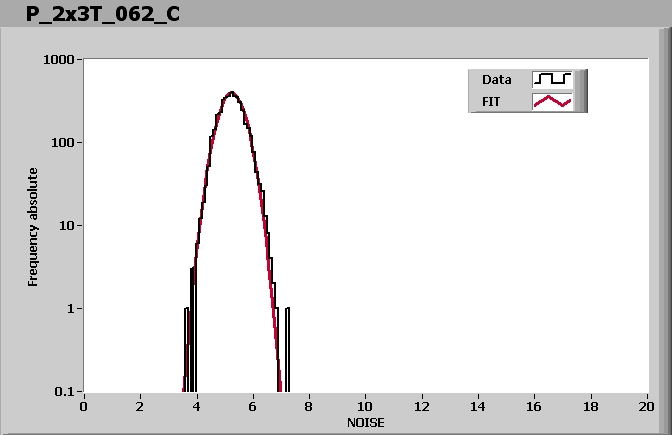

ROC3 NOISE			MEAN = 5.243424 SIGMA = 0.422327
ROC4 NOISE			MEAN = 5.223366 SIGMA = 0.435017
ROC5 NOISE			MEAN = 4.624690 SIGMA = 0.381086

Comment (if any): Good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 10:14 AM

Ibias_DAC, Ibias_DAC Data	130	130	132	124	126	136
Vana, VanaData	117	105	122	115	116	141
CalDelData and plots	95	91	81	97	82	66
VthrCompData and plots	72	68	71	56	73	90
TestDdata ,TestD Plots	0	0	1	1	1	3
LightData ,Light Plots	0	0	0	1	2	3
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
