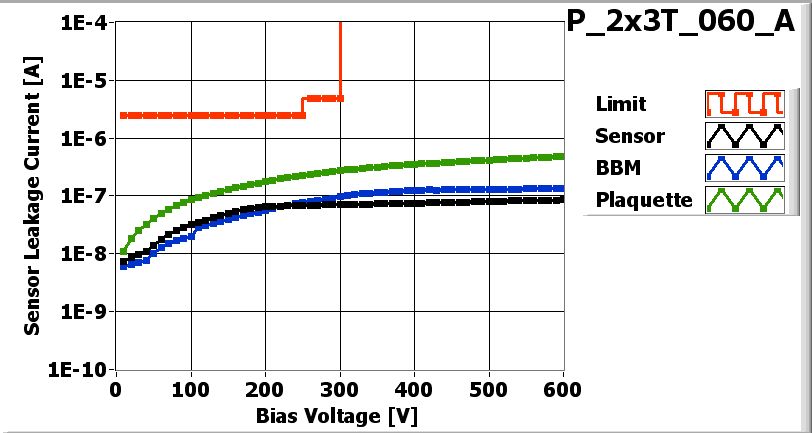

![[IMAGE] of](P_2x3T_060_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

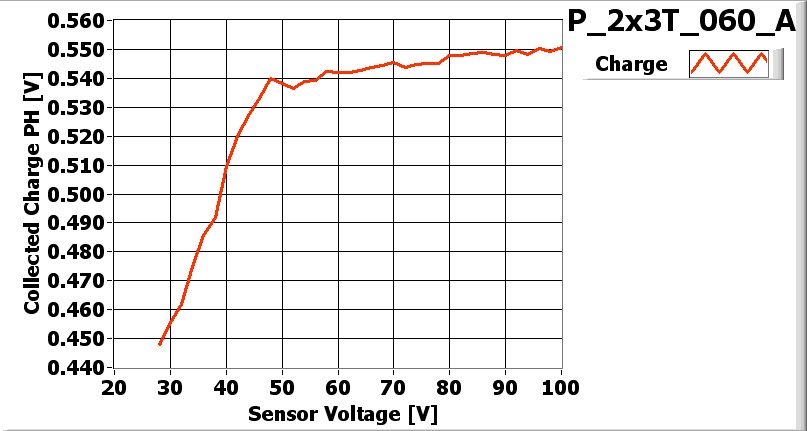

![[IMAGE] of](P_2x3T_060_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_060-2x3T |
| VHDI | 2x3_547 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W46_D3LQC5T | 58C |
| ROC1 | W46_D3LQC5T | 58B |
| ROC2 | W46_D3LQC5T | 58A |
| ROC3 | W45_D3LQFCT | 18C |
| ROC4 | W45_D3LQFCT | 18D |
| ROC5 | W46_D3LQC5T | 49A |
Inspected by Lockwood Gale on date 6/1/2007
| LR_dev | 0.074 |
| LL_dev | 0.078 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/1/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/1/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 6/1/2007 by Arndt Kirk
P_2x3T_060_Aon 6/4/2007 10:45 AM
P_2x3T_060_Aon 6/4/2007 10:45 AM
PLAQUETTE TESTED on 2007-06-04 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 150 | 148 | 164 | 160 | 146 | 150 | |
| Vana | 138 | 127 | 146 | 153 | 137 | 151 | |
| Cal_Del | 95 | 82 | 95 | 93 | 88 | 77 | |
| Vthrs_Comp | 75 | 91 | 86 | 88 | 80 | 89 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

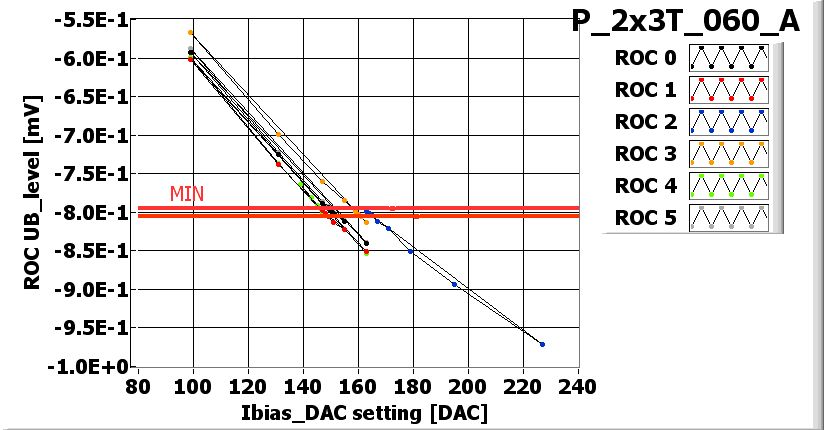

![[IMAGE] of](P_2x3T_060_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

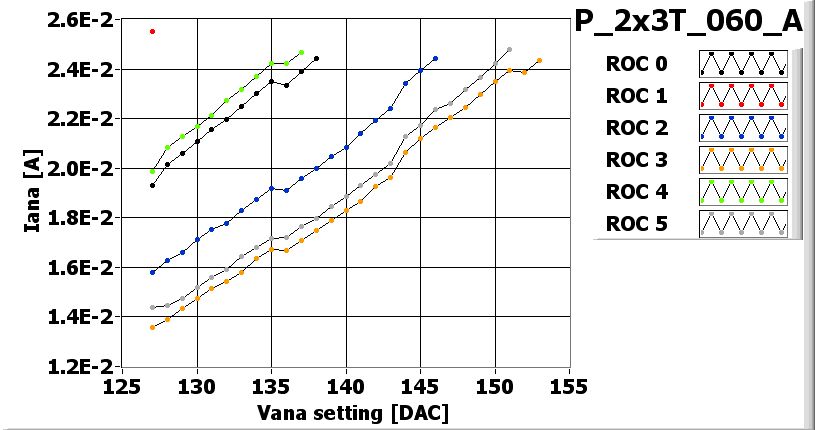

![[IMAGE] of](P_2x3T_060_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_060_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_060_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_060_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_060_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 115 | 100 | 90 | 100 | 95 |
| Vsf | 140 | 140 | 150 | 150 | 135 | 145 |
| VoffsetOp | 95 | 115 | 105 | 110 | 90 | 105 |
| VIbias_PH | 95 | 100 | 95 | 100 | 105 | 105 |

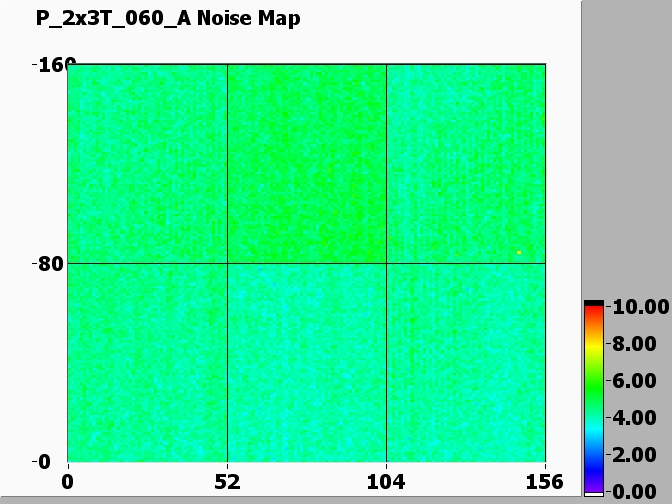

Noise MAP at VMAX
![[IMAGE] of](P_2x3T_060_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_060_A-580-efficiency.jpg)

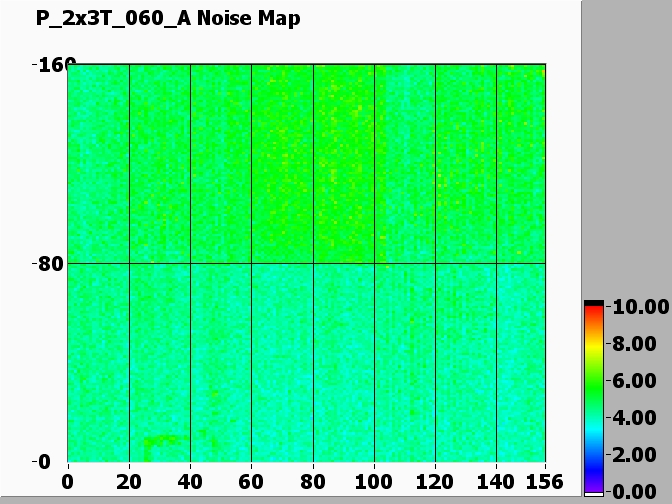

Noise MAP at -200 V
![[IMAGE] of](P_2x3T_060_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_060_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
