P_2x3T_060

P_2x3T_060_A

Production testing

Date:6/4/2007

Operator: Emily Grace

start testing time:10:45 AM

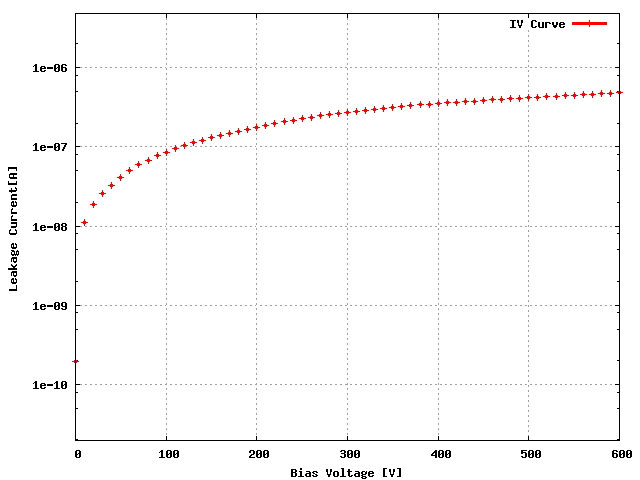

Sensor: S_2x3T_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W46_D3LQC5T 58C

ROC1 W46_D3LQC5T 58B

ROC2 W46_D3LQC5T 58A

ROC3 W45_D3LQFCT 18C

ROC4 W45_D3LQFCT 18D

ROC5 W46_D3LQC5T 49A

ROC	ROC wafer	Label
ROC0	W46_D3LQC5T	58C
ROC1	W46_D3LQC5T	58B
ROC2	W46_D3LQC5T	58A
ROC3	W45_D3LQFCT	18C
ROC4	W45_D3LQFCT	18D
ROC5	W46_D3LQC5T	49A

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 150 148 164 160 146 150

Vana, VanaData 138 127 146 153 137 151

CalDelData and plots 95 82 95 93 88 77

VthrCompData and plots 75 91 86 88 80 89

TestDdata ,TestD Plots 0 0 0 0 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	115	100	90	100	95
Vsf	140	140	150	150	135	145
VoffsetOp	95	115	105	110	90	105
VIbias_PH	95	100	95	100	105	105

ROC0 NOISE			MEAN = 4.263386 SIGMA = 0.316811
ROC1 NOISE			MEAN = 4.060332 SIGMA = 0.304619

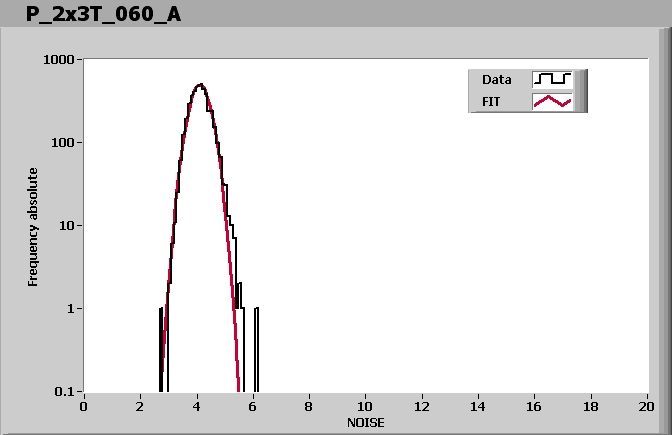

ROC2 NOISE			MEAN = 4.109383 SIGMA = 0.336707

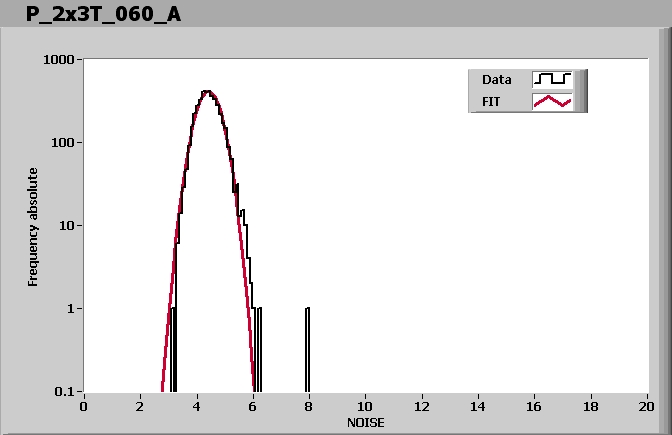

ROC3 NOISE			MEAN = 4.410908 SIGMA = 0.401628
ROC4 NOISE			MEAN = 4.793616 SIGMA = 0.381726

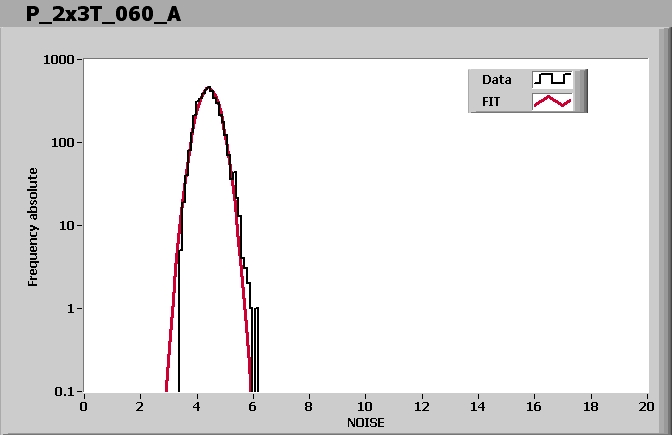

ROC5 NOISE			MEAN = 4.412749 SIGMA = 0.367563

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:10 AM

Ibias_DAC, Ibias_DAC Data	150	148	164	160	146	150
Vana, VanaData	138	127	146	153	137	151
CalDelData and plots	95	82	95	93	88	77
VthrCompData and plots	75	91	86	88	80	89
TestDdata ,TestD Plots	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
