![[IMAGE] of](P_2x3T_056_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

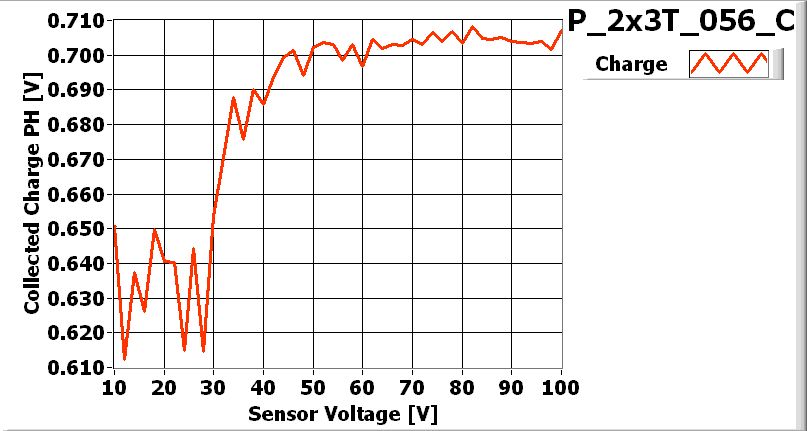

![[IMAGE] of](P_2x3T_056_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 40 V |
| Operational Voltage 80 V |
Parts committed by Bolla Gino on date 5/29/2007
| Part | ID |
|---|---|
| BBM | BBM_056-2x3T |
| VHDI | 2x3_644 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KZNG1JT | 67B |
| ROC1 | KZNG1JT | 68D |
| ROC2 | KZNG1JT | 58B |
| ROC3 | KZNG1JT | 28D |
| ROC4 | KZNG1JT | 58C |
| ROC5 | KZNG1JT | 39B |
Inspected by Lockwood Gale on date 6/15/2007
| LR_dev | 0.020 |
| LL_dev | 0.000 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/15/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/15/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 6/15/2007 by Ozhan Koybasi
P_2x3T_056_Con 6/18/2007 10:04 AM
P_2x3T_056_Con 6/18/2007 10:04 AM
PLAQUETTE TESTED on 2007-06-18 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 170 | 154 | 154 | 162 | 164 | 154 | |
| Vana | 122 | 138 | 127 | 143 | 147 | 142 | |
| Cal_Del | 72 | 86 | 70 | 75 | 80 | 67 | |
| Vthrs_Comp | 69 | 80 | 83 | 80 | 86 | 87 | |
| Unbumped | 79 | 0 | 14 | 3 | 0 | 14 | |
| Dead | 21 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 1 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 139 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 240 | 0 | 14 | 3 | 0 | 14 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_056_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

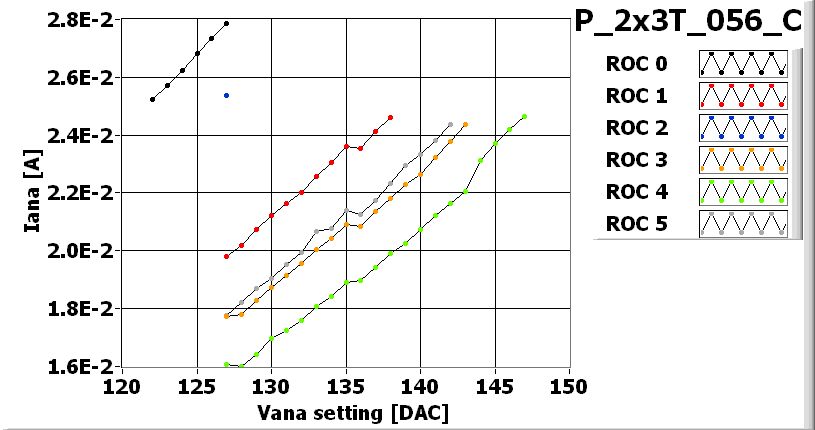

![[IMAGE] of](P_2x3T_056_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_056_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_056_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |

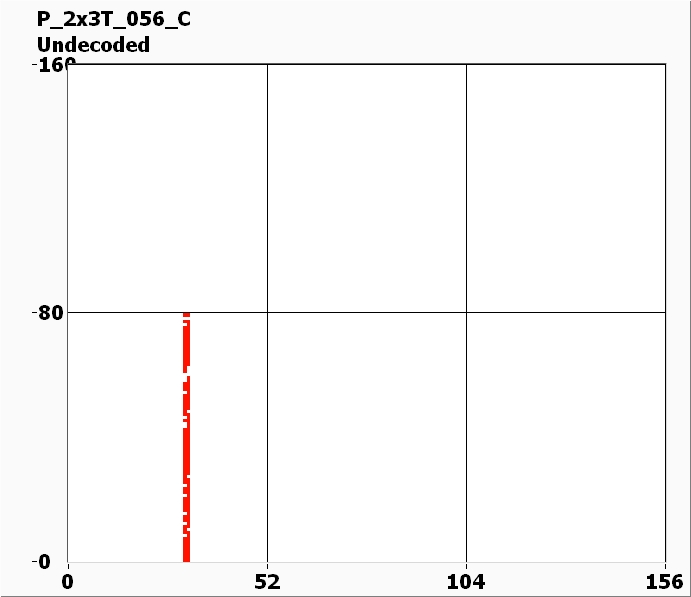

![[IMAGE] of](P_2x3T_056_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

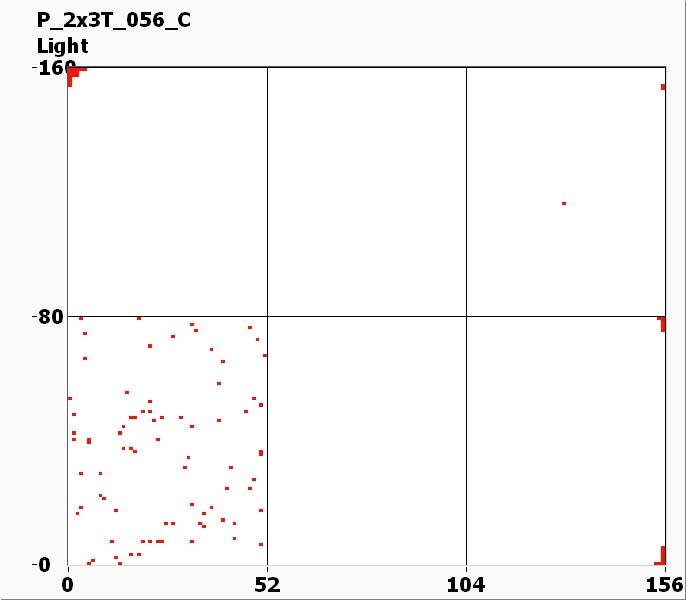

![[IMAGE] of](P_2x3T_056_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 45 | 100 | 110 | 90 | 90 | 95 |
| Vsf | 165 | 140 | 140 | 145 | 145 | 140 |
| VoffsetOp | 240 | 85 | 75 | 80 | 95 | 95 |
| VIbias_PH | 145 | 100 | 100 | 105 | 105 | 105 |

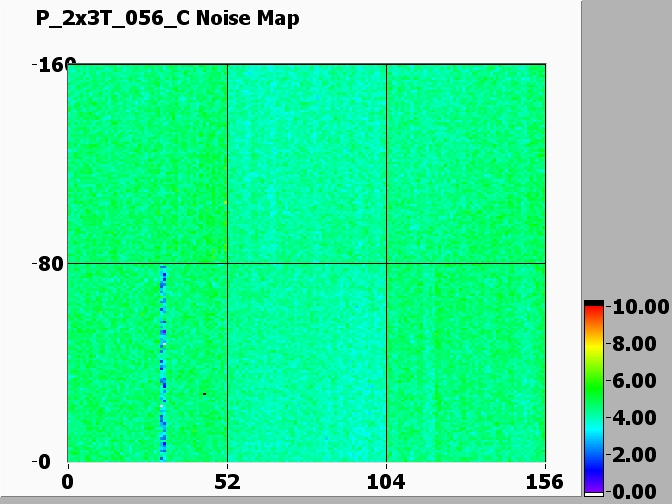

Noise MAP at VMAX
![[IMAGE] of](P_2x3T_056_C-580-noise.jpg)

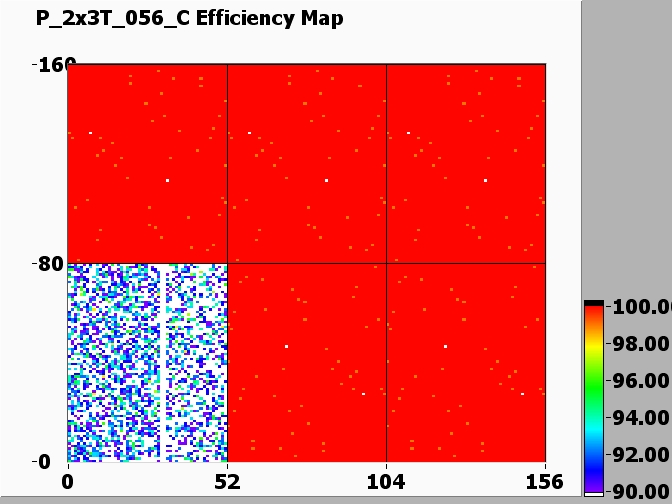

Efficiency MAP
![[IMAGE] of](P_2x3T_056_C-580-efficiency.jpg)

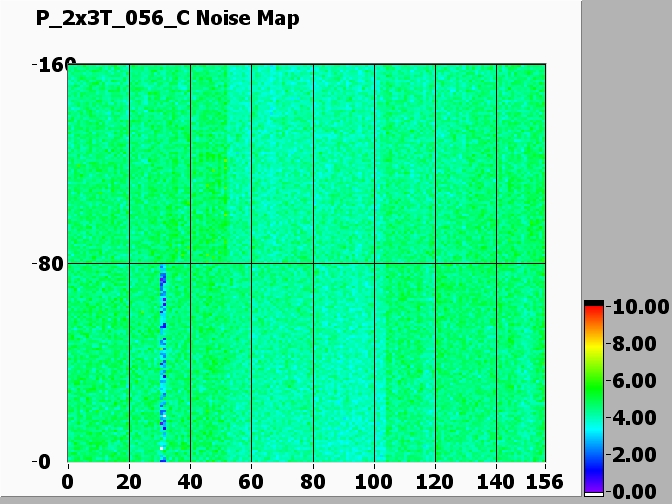

Noise MAP at -200 V
![[IMAGE] of](P_2x3T_056_C-200-noise.jpg)

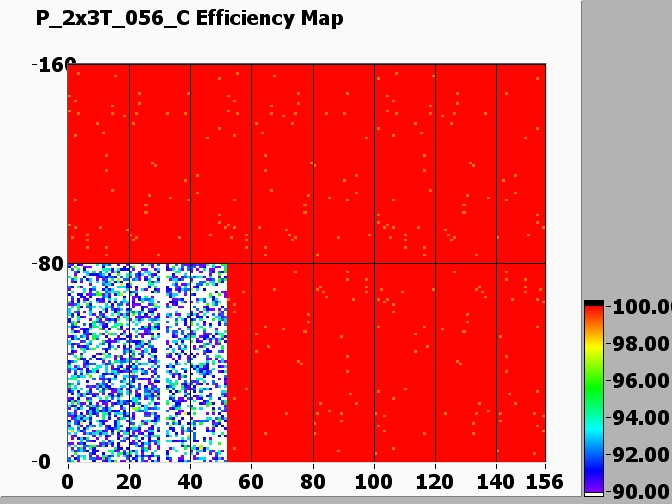

Efficiency MAP
![[IMAGE] of](P_2x3T_056_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
