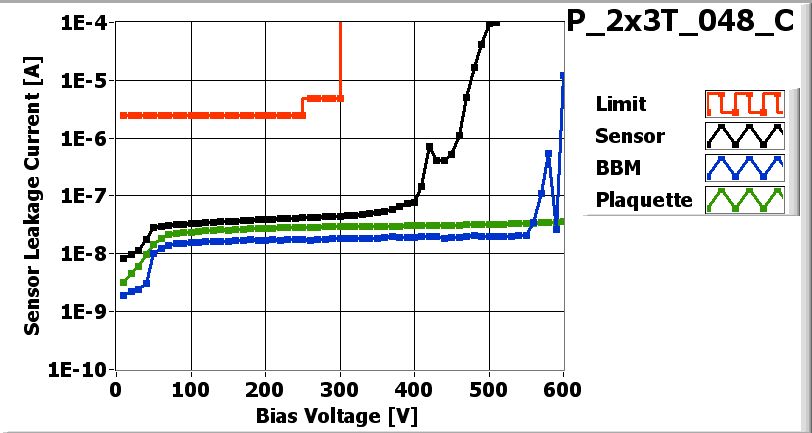

![[IMAGE] of](P_2x3T_048_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_048_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 2/16/2007
| Part | ID |
|---|---|
| BBM | BBM_048-2x3T |
| VHDI | 2x3_475 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 25B |
| ROC1 | XG4KFCT | 25A |
| ROC2 | XG4KFCT | 24B |
| ROC3 | XG4KFCT | 20B |
| ROC4 | XG4KFCT | 21A |
| ROC5 | XG4KFCT | 22B |
Inspected by Lockwood Gale on date 3/26/2007
| LR_dev | 0.037 |
| LL_dev | 0.044 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. ROC 4 channel 35, ROC 5 channel 35 multiple attempts, All bonded |
PLAQUETTE made READY for ENCAPSULATION on 2/26/2007 by Lockwood Gale
PLAQUETTE encapsulated on 2/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/28/2007 by Ozhan Koybasi
P_2x3T_048_Con 3/1/2007 4:40 PM
P_2x3T_048_Con 3/1/2007 4:40 PM
PLAQUETTE TESTED on 2007-03-01 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 134 | 144 | 142 | 138 | 122 | 124 | |
| Vana | 132 | 147 | 122 | 116 | 127 | 134 | |
| Cal_Del | 92 | 84 | 90 | 94 | 85 | 79 | |
| Vthrs_Comp | 71 | 85 | 66 | 63 | 85 | 80 | |
| Unbumped | 6 | 0 | 0 | 8 | 4 | 2 | |
| Dead | 0 | 0 | 0 | 0 | 3 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 6 | 0 | 0 | 8 | 7 | 2 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

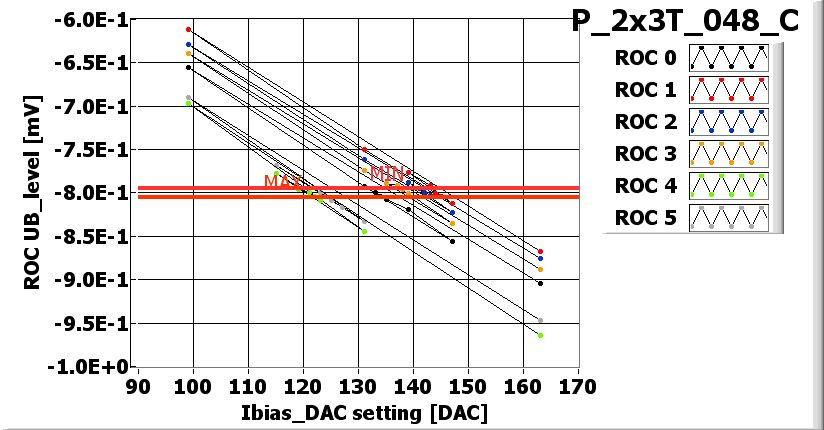

![[IMAGE] of](P_2x3T_048_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

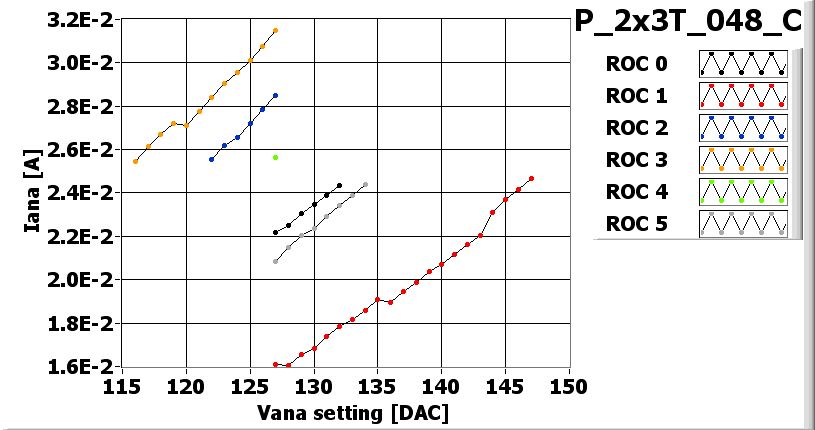

![[IMAGE] of](P_2x3T_048_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_048_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_048_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_048_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

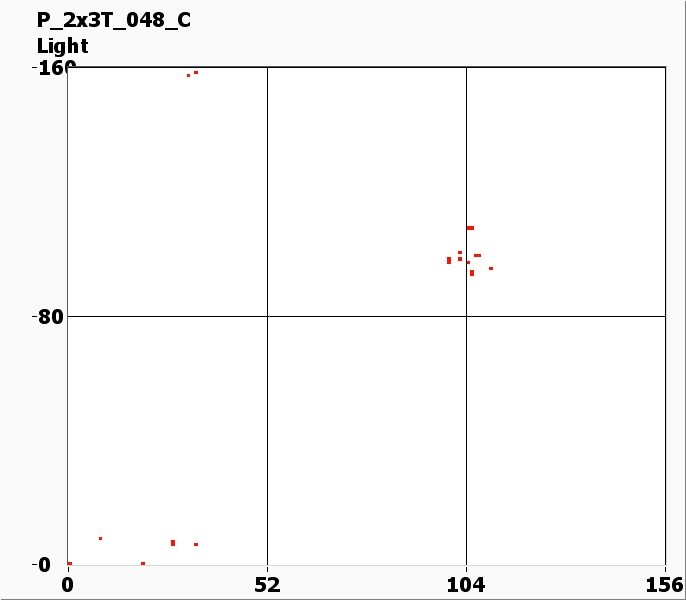

![[IMAGE] of](P_2x3T_048_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 90 | 170 | 120 | 135 | 130 |
| Vsf | 135 | 145 | 135 | 125 | 135 | 140 |
| VoffsetOp | 80 | 90 | 55 | 65 | 55 | 65 |
| VIbias_PH | 105 | 100 | 95 | 100 | 100 | 95 |

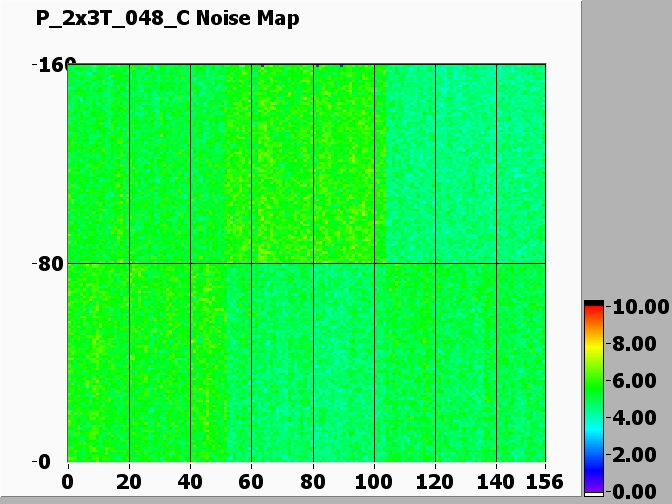

Noise MAP
![[IMAGE] of](P_2x3T_048_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_048_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
