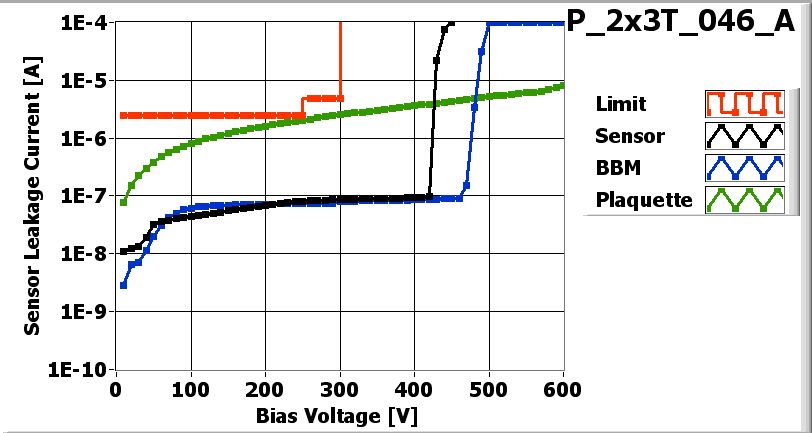

![[IMAGE] of](P_2x3T_046_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_046_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_046-2x3T |
| VHDI | 2x3_530 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 17C |
| ROC1 | W36_XD4K3LT | 17B |
| ROC2 | W36_XD4K3LT | 17A |
| ROC3 | W49_D1LQGST | 18A |
| ROC4 | W49_D1LQGST | 03B |
| ROC5 | W49_D1LQGST | 03D |
Inspected by Lockwood Gale on date 5/23/2007
| LR_dev | 0.024 |
| LL_dev | 0.017 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/23/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/23/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/23/2007 by Perera Rajiv
P_2x3T_046_Aon 5/24/2007 3:14 PM
P_2x3T_046_Aon 5/24/2007 3:14 PM
PLAQUETTE TESTED on 2007-05-24 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 154 | 154 | 156 | 160 | 152 | 156 | |
| Vana | 135 | 114 | 141 | 150 | 144 | 153 | |
| Cal_Del | 101 | 96 | 89 | 73 | 88 | 89 | |
| Vthrs_Comp | 83 | 83 | 75 | 89 | 88 | 88 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 0 | 0 | 1 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

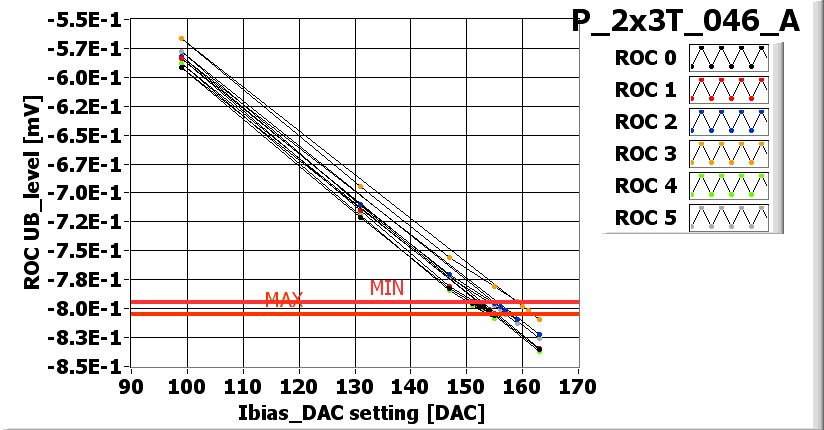

![[IMAGE] of](P_2x3T_046_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

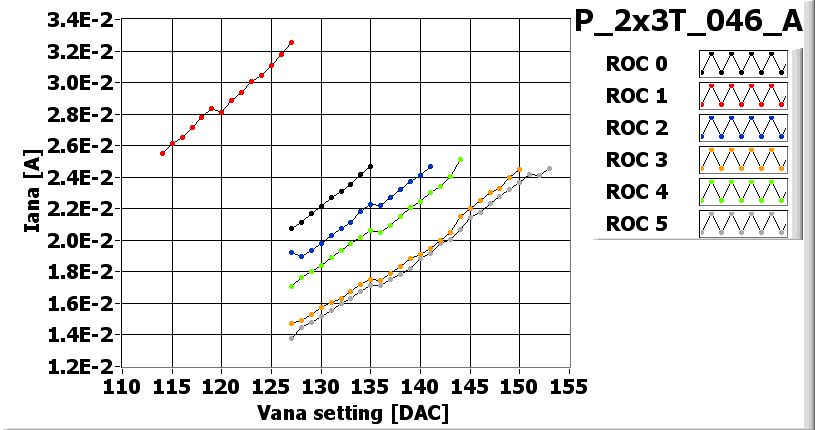

![[IMAGE] of](P_2x3T_046_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_046_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_046_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_046_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_046_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 125 | 150 | 100 | 100 | 100 | 95 |
| Vsf | 140 | 135 | 140 | 155 | 145 | 150 |
| VoffsetOp | 80 | 70 | 85 | 105 | 110 | 110 |
| VIbias_PH | 100 | 105 | 105 | 100 | 95 | 105 |

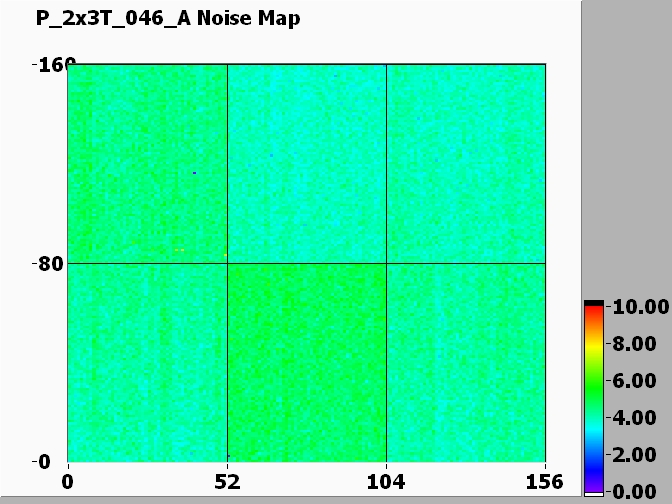

Noise MAP at VMAX
![[IMAGE] of](P_2x3T_046_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_046_A-580-efficiency.jpg)

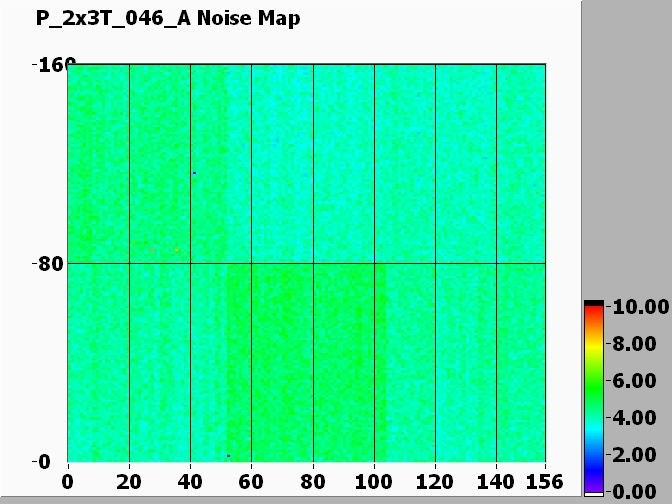

Noise MAP at -200 V
![[IMAGE] of](P_2x3T_046_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_046_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
