P_2x3T_046

P_2x3T_046_A

Production testing

Date:5/24/2007

Operator: Emily Grace

start testing time:3:14 PM

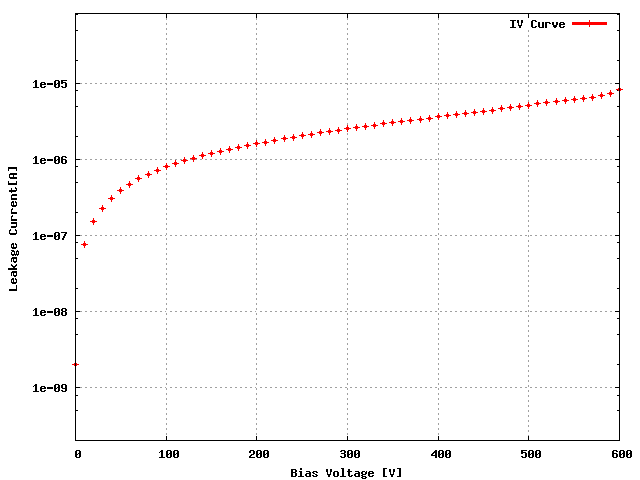

Sensor: S_2x3T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W36_XD4K3LT 17C

ROC1 W36_XD4K3LT 17B

ROC2 W36_XD4K3LT 17A

ROC3 W49_D1LQGST 18A

ROC4 W49_D1LQGST 03B

ROC5 W49_D1LQGST 03D

ROC	ROC wafer	Label
ROC0	W36_XD4K3LT	17C
ROC1	W36_XD4K3LT	17B
ROC2	W36_XD4K3LT	17A
ROC3	W49_D1LQGST	18A
ROC4	W49_D1LQGST	03B
ROC5	W49_D1LQGST	03D

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data 154 154 156 160 152 156

Vana, VanaData 135 114 141 150 144 153

CalDelData and plots 101 96 89 73 88 89

VthrCompData and plots 83 83 75 89 88 88

TestDdata ,TestD Plots 0 1 0 1 0 2

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	125	150	100	100	100	95
Vsf	140	135	140	155	145	150
VoffsetOp	80	70	85	105	110	110
VIbias_PH	100	105	105	100	95	105

ROC0 NOISE			MEAN = 4.141287 SIGMA = 0.345736
ROC1 NOISE			MEAN = 4.690259 SIGMA = 0.352285
ROC2 NOISE			MEAN = 4.163187 SIGMA = 0.346904

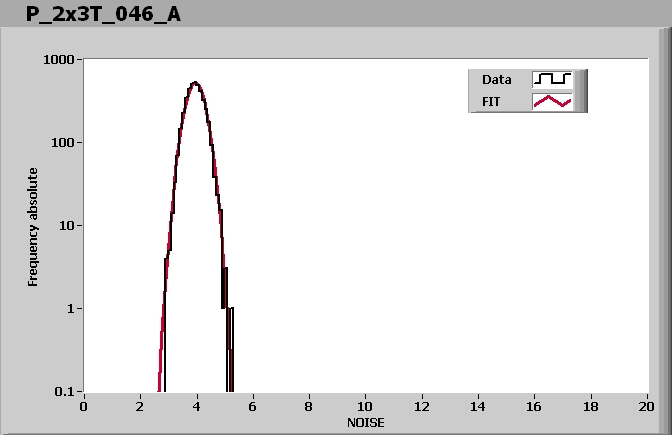

ROC3 NOISE			MEAN = 3.946873 SIGMA = 0.317687

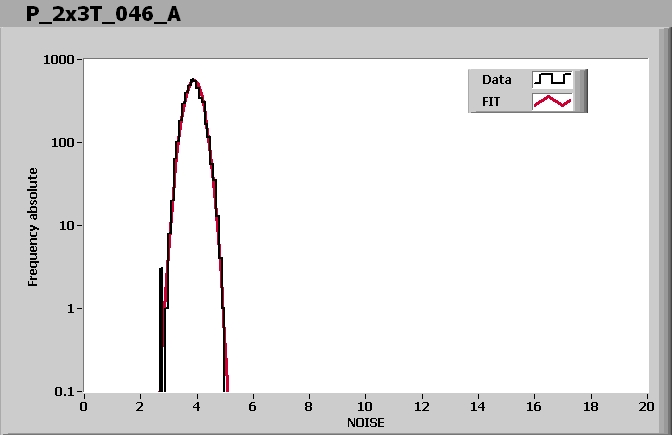

ROC4 NOISE			MEAN = 3.887312 SIGMA = 0.291112

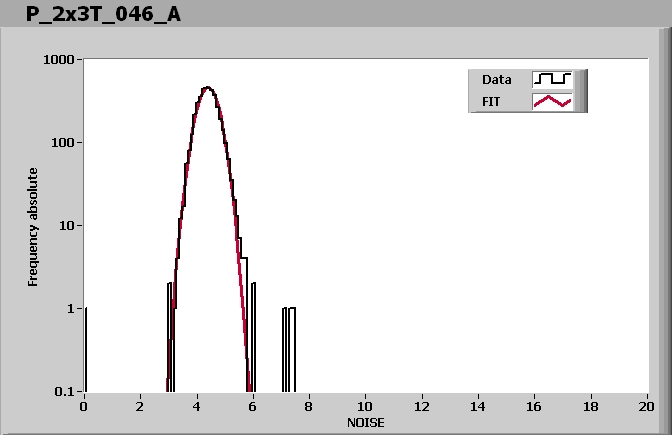

ROC5 NOISE			MEAN = 4.392705 SIGMA = 0.354736

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 3:41 PM

Ibias_DAC, Ibias_DAC Data	154	154	156	160	152	156
Vana, VanaData	135	114	141	150	144	153
CalDelData and plots	101	96	89	73	88	89
VthrCompData and plots	83	83	75	89	88	88
TestDdata ,TestD Plots	0	1	0	1	0	2
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
