Sensor: S_2x3T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XE4K3KT	67D
ROC1	XE4K3KT	67A
ROC2	XE4K3KT	61C
ROC3	XE4K3KT	65D
ROC4	XE4K3KT	66B
ROC5	XE4K3KT	61D

FIXED (not measured) Depletion Voltage is -50 and FIXED (not measured) suggested operational voltage is -150

Ibias_DAC, Ibias_DAC Data	134	130	142	130	144	134
Vana, VanaData	127	124	114	127	141	124
TestDdata ,TestD Plots	0	0	1	1	1	0
LightData ,Light Plots	2	0	1	3	0	2
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

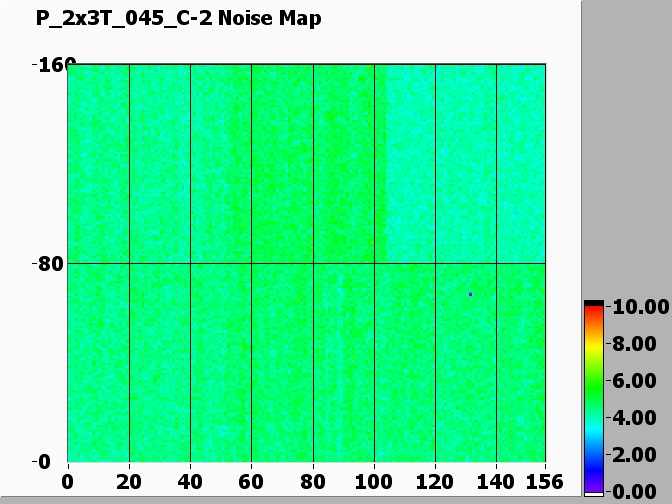

Noise MAP

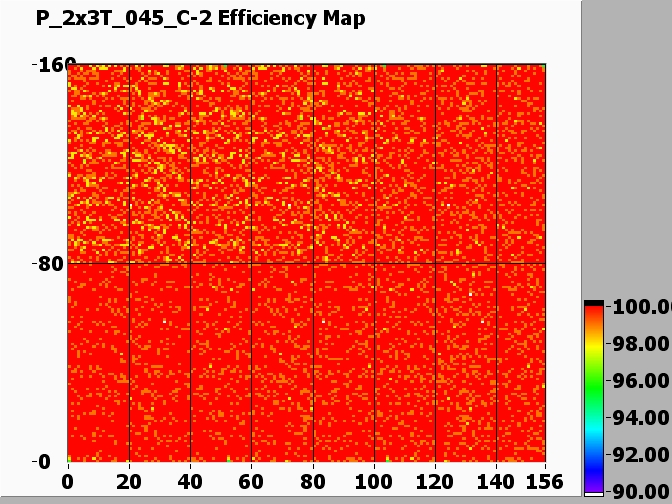

Efficiency MAP

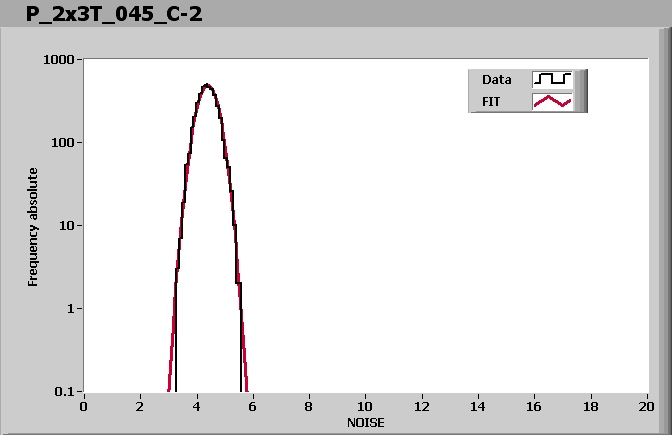

ROC0 NOISE			MEAN = 4.380663 SIGMA = 0.336252

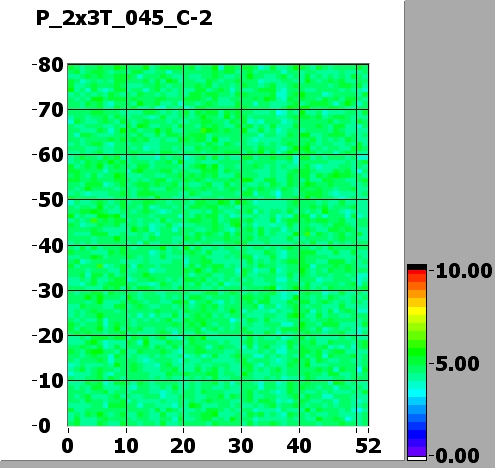

ROC1 NOISE			MEAN = 4.563302 SIGMA = 0.361686
ROC2 NOISE			MEAN = 4.522479 SIGMA = 0.336514

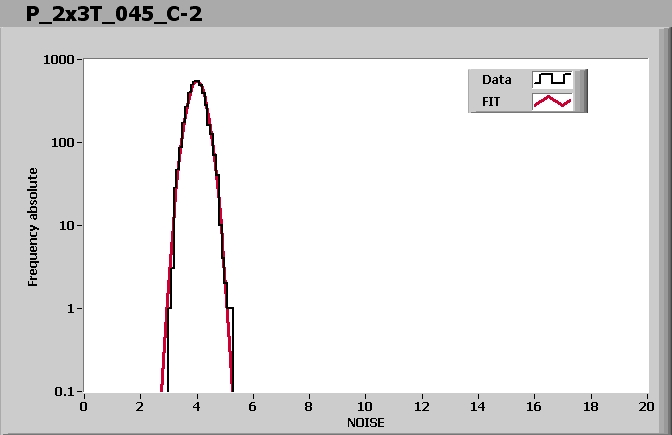

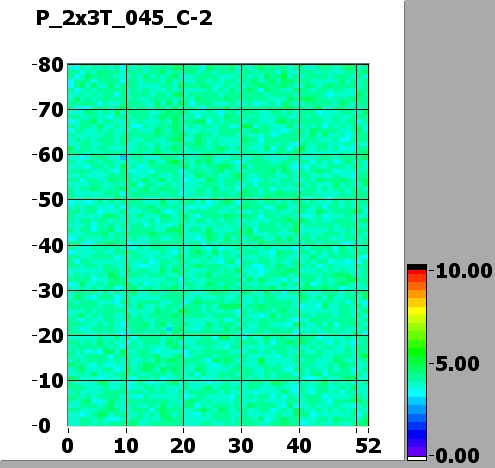

ROC3 NOISE			MEAN = 4.000457 SIGMA = 0.301115

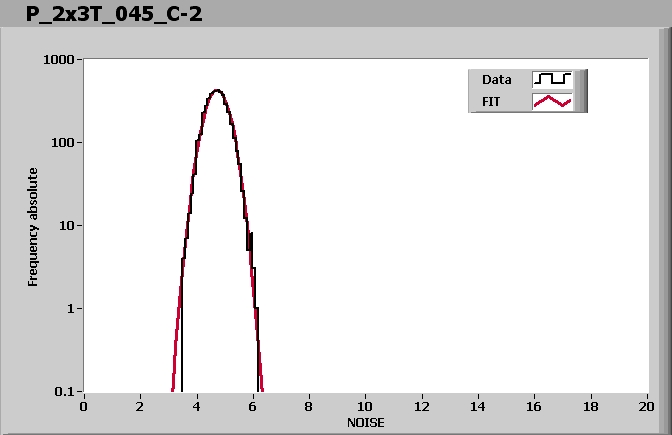

ROC4 NOISE			MEAN = 4.717784 SIGMA = 0.389007

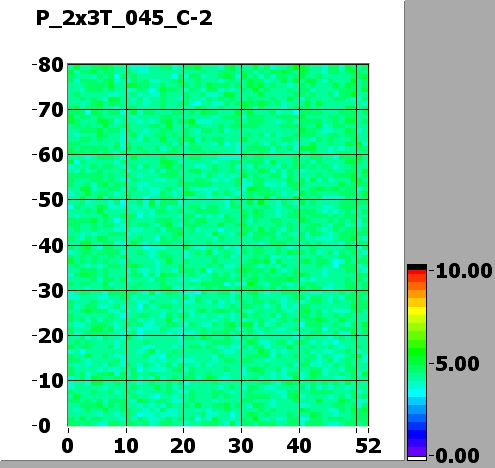

ROC5 NOISE			MEAN = 4.306569 SIGMA = 0.327042

Comment (if any):

P_2x3T_045_C-1.html,

P_2x3T_045_C.html,

End testing time: 3:20 PM
