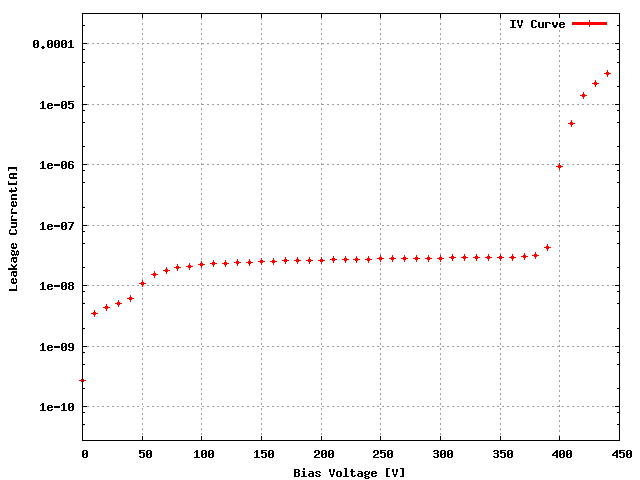

Sensor: S_2x3T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4K3KT | 67D |
| ROC1 | XE4K3KT | 67A |
| ROC2 | XE4K3KT | 61C |
| ROC3 | XE4K3KT | 65D |
| ROC4 | XE4K3KT | 66B |
| ROC5 | XE4K3KT | 61D |
| Ibias_DAC, Ibias_DAC Data | 134 | 130 | 142 | 130 | 144 | 134 |
| Vana, VanaData | 127 | 124 | 114 | 127 | 141 | 124 |
| CalDelData and plots | 88 | 82 | 69 | 94 | 78 | 86 |
| VthrCompData and plots | 72 | 80 | 79 | 78 | 87 | 74 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 0 | 0 | 1 | 0 | 0 | 1 |
| LightData ,Light Plots | 2 | 0 | 1 | 2 | 0 | 1 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Okay.
This Device have been tested 1Times prior to this one and here are the links to the previous tests:End testing time: 12:49 PM
