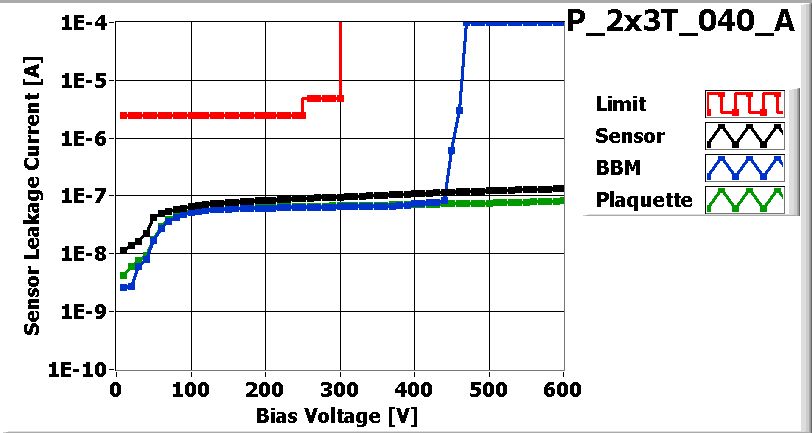

![[IMAGE] of](P_2x3T_040_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

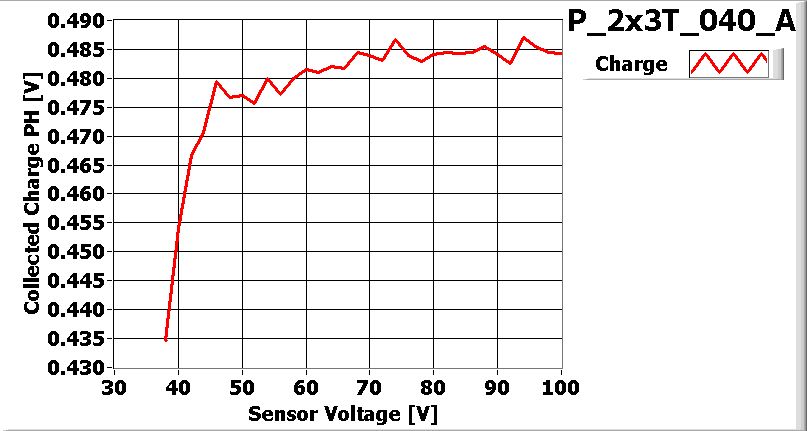

![[IMAGE] of](P_2x3T_040_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_040-2x3T |
| VHDI | 2x3_457 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W36_XD4K3LT | 15A |
| ROC1 | W35_XH4K3HT | 51B |
| ROC2 | W35_XH4K3HT | 51A |
| ROC3 | W36_XD4K3LT | 27C |
| ROC4 | W36_XD4K3LT | 27D |
| ROC5 | W33_XC4K5LT | 04D |
Inspected by Lockwood Gale on date 5/21/2007
| LR_dev | 0.062 |
| LL_dev | 0.062 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Released pusher before releasing joining force. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/21/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/21/2007 by Perera Rajiv
P_2x3T_040_Aon 5/22/2007 3:45 PM
P_2x3T_040_Aon 5/22/2007 3:45 PM
PLAQUETTE TESTED on 2007-05-22 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 160 | 134 | 158 | 146 | 150 | 156 | |
| Vana | 121 | 132 | 111 | 132 | 127 | 131 | |
| Cal_Del | 85 | 86 | 92 | 89 | 84 | 82 | |
| Vthrs_Comp | 73 | 68 | 69 | 77 | 73 | 79 | |
| Unbumped | 1 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 4 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 1 | 0 | 4 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

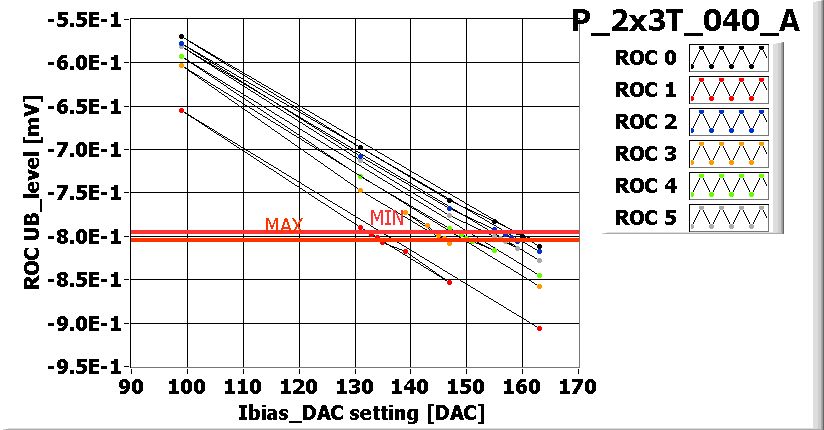

![[IMAGE] of](P_2x3T_040_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

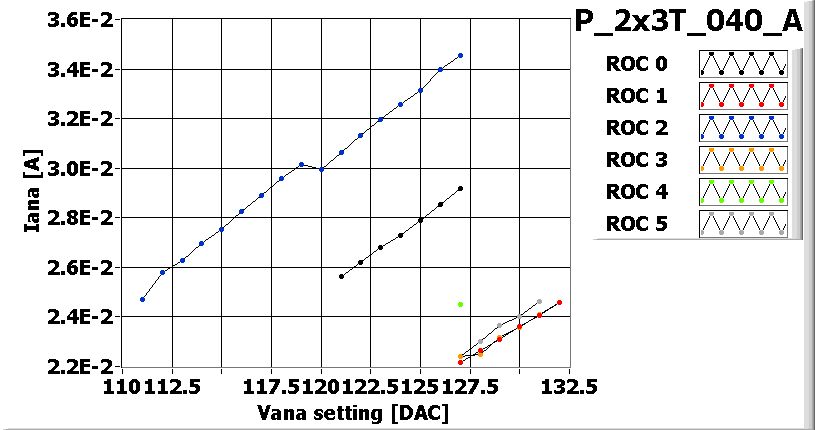

![[IMAGE] of](P_2x3T_040_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_040_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |

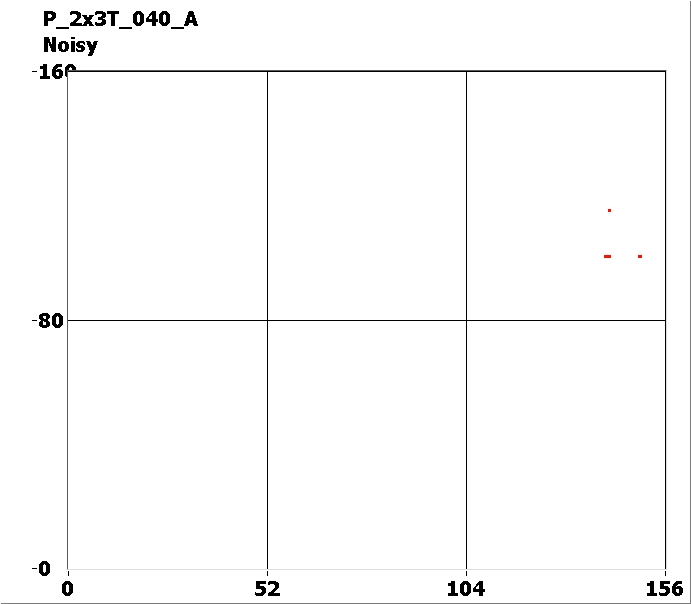

![[IMAGE] of](P_2x3T_040_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_040_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_040_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 170 | 125 | 140 | 120 | 135 | 115 |
| Vsf | 135 | 140 | 135 | 140 | 135 | 140 |
| VoffsetOp | 70 | 55 | 65 | 85 | 65 | 95 |
| VIbias_PH | 100 | 95 | 95 | 95 | 95 | 100 |

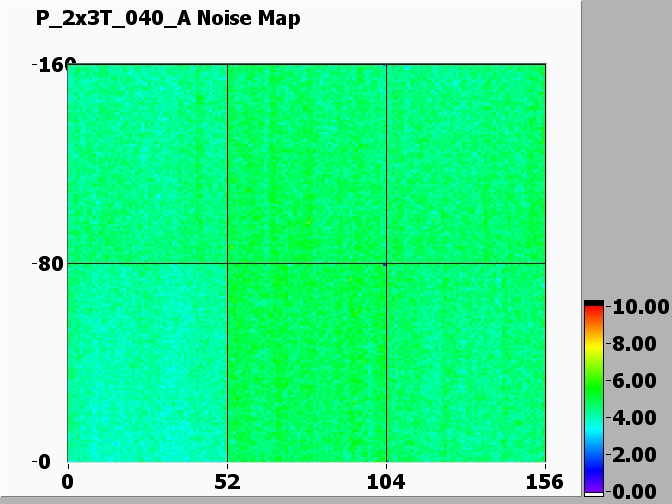

Noise MAP at VMAX
![[IMAGE] of](P_2x3T_040_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_040_A-580-efficiency.jpg)

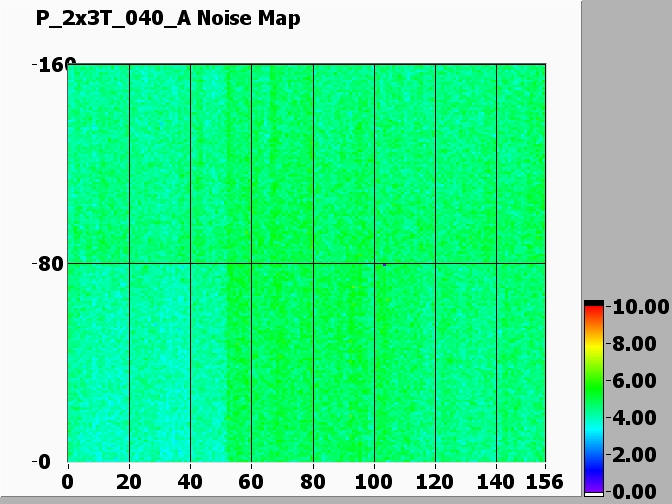

Noise MAP at -200 V
![[IMAGE] of](P_2x3T_040_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_040_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
