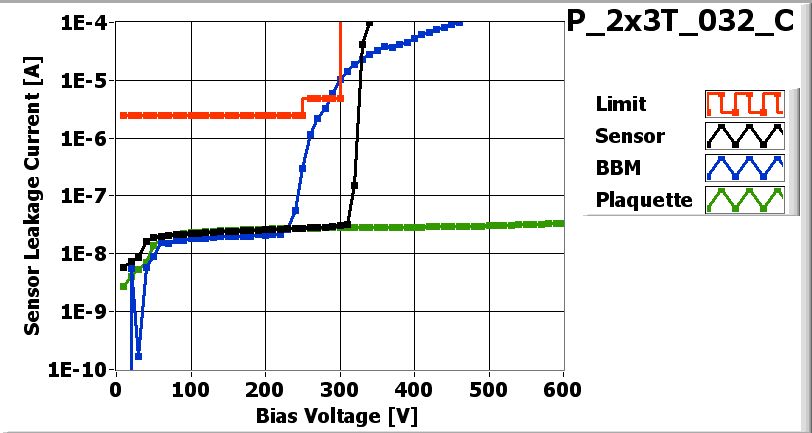

![[IMAGE] of](P_2x3T_032_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_032_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 4/10/2007
| Part | ID |
|---|---|
| BBM | BBM_032-2x3T |
| VHDI | 2x3_531 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XW4KFXT | 23D |
| ROC1 | XH4KFBT | 21D |
| ROC2 | XH4KFBT | 22C |
| ROC3 | XH4KFBT | 24D |
| ROC4 | XH4KFBT | 23A |
| ROC5 | XH4KFBT | 22A |
Inspected by Lockwood Gale on date 4/11/2007
| LR_dev | 0.071 |
| LL_dev | 0.069 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Assembled at HALF-PRESSURE.No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/11/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/12/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/12/2007 by Ozhan Koybasi
P_2x3T_032_Con 4/17/2007 10:21 AM
P_2x3T_032_Con 4/17/2007 10:21 AM
PLAQUETTE TESTED on 2007-04-17 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 134 | 130 | 134 | 138 | 126 | 128 | |
| Vana | 130 | 138 | 143 | 133 | 111 | 125 | |
| Cal_Del | 88 | 86 | 77 | 85 | 100 | 81 | |
| Vthrs_Comp | 74 | 74 | 86 | 64 | 58 | 70 | |
| Unbumped | 0 | 0 | 0 | 1 | 1 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

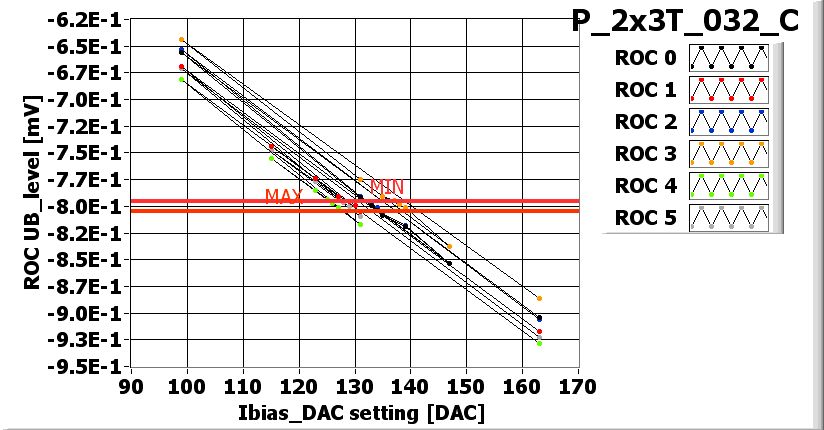

![[IMAGE] of](P_2x3T_032_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

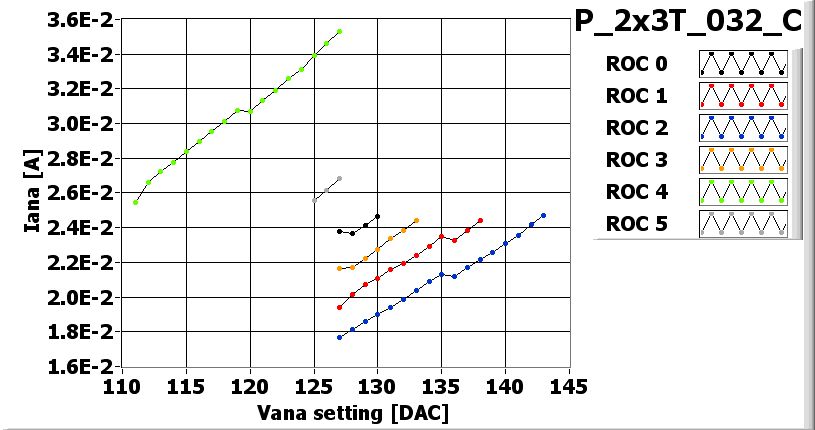

![[IMAGE] of](P_2x3T_032_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_032_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_032_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_032_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_032_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 125 | 85 | 105 | 105 | 175 | 140 |
| Vsf | 140 | 140 | 140 | 140 | 135 | 135 |
| VoffsetOp | 70 | 90 | 90 | 85 | 70 | 95 |
| VIbias_PH | 95 | 105 | 100 | 100 | 105 | 100 |

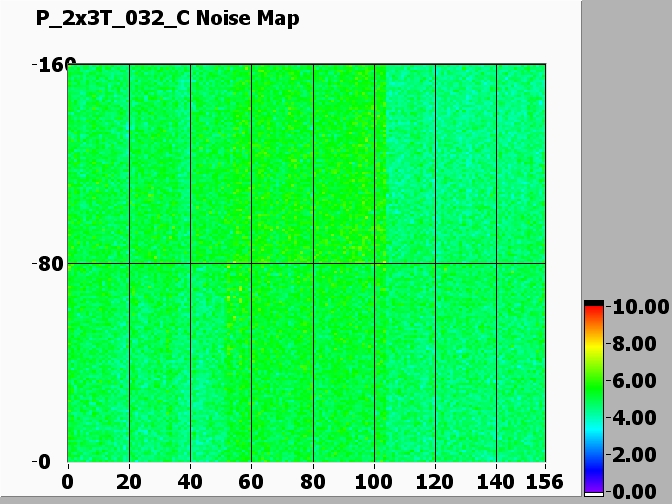

Noise MAP
![[IMAGE] of](P_2x3T_032_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_032_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
