![[IMAGE] of](P_2x3T_030_A_IV.jpg)

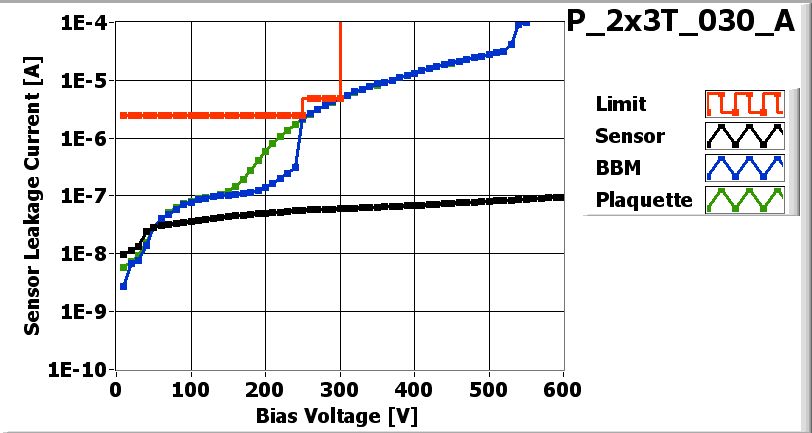

| IV_XML-File |
| Maximum Voltage 480 V |
![[IMAGE] of](P_2x3T_030_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 4/23/2007
| Part | ID |
|---|---|
| BBM | BBM_030-2x3T |
| VHDI | 2x3_550 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 29B |
| ROC1 | W35_XH4K3HT | 29A |
| ROC2 | W35_XH4K3HT | 28A |
| ROC3 | W35_XH4K3HT | 30C |
| ROC4 | W35_XH4K3HT | 31A |
| ROC5 | W35_XH4K3HT | 31B |
Inspected by Lockwood Gale on date 4/24/2007
| LR_dev | 0.031 |
| LL_dev | 0.000 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/24/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/24/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/24/2007 by Ozhan Koybasi
P_2x3T_030_Aon 4/25/2007 12:38 PM
P_2x3T_030_Aon 4/25/2007 12:38 PM
PLAQUETTE TESTED on 2007-04-25 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 138 | 144 | 140 | 122 | 160 | 144 | |
| Vana | 135 | 129 | 124 | 111 | 134 | 141 | |
| Cal_Del | 75 | 87 | 95 | 89 | 70 | 91 | |
| Vthrs_Comp | 81 | 74 | 75 | 55 | 89 | 70 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 2 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 2 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_030_A_Ibias-dac.jpg) |

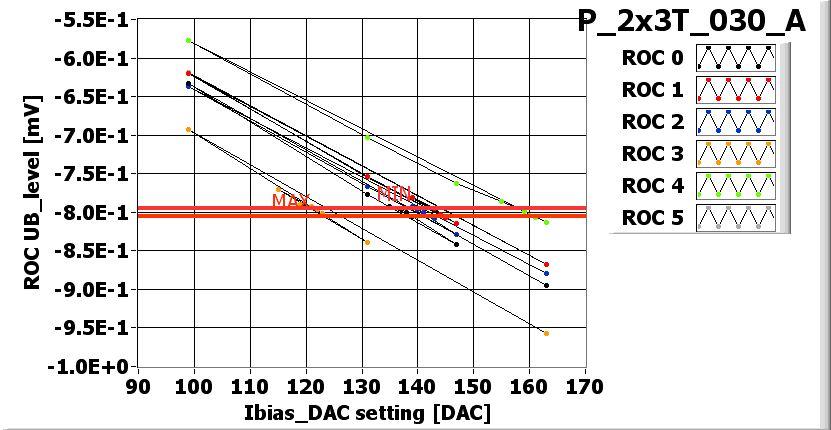

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_030_A_Vana.jpg) |

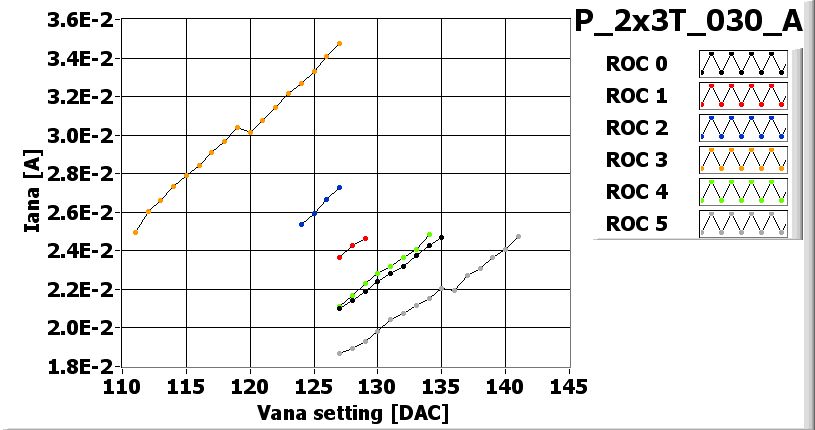

VANA_XML-File |
![[IMAGE] of](P_2x3T_030_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_030_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_030_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_030_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 125 | 120 | 150 | 125 | 125 | 110 |
| Vsf | 140 | 140 | 145 | 125 | 140 | 140 |
| VoffsetOp | 85 | 90 | 80 | 50 | 110 | 100 |
| VIbias_PH | 100 | 95 | 105 | 95 | 100 | 100 |
Noise MAP
![[IMAGE] of](P_2x3T_030_A-460-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_030_A-460-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
