P_2x3T_030

P_2x3T_030_A

Production testing

Date:4/25/2007

Operator: Cameron McKinney

start testing time:12:38 PM

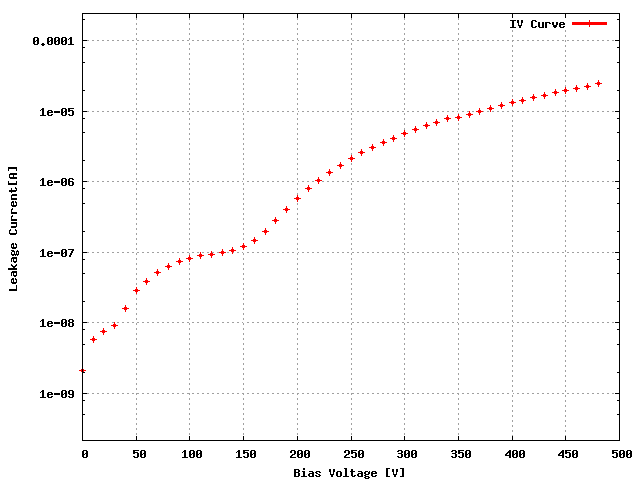

Sensor: S_2x3T_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W35_XH4K3HT 29B

ROC1 W35_XH4K3HT 29A

ROC2 W35_XH4K3HT 28A

ROC3 W35_XH4K3HT 30C

ROC4 W35_XH4K3HT 31A

ROC5 W35_XH4K3HT 31B

ROC	ROC wafer	Label
ROC0	W35_XH4K3HT	29B
ROC1	W35_XH4K3HT	29A
ROC2	W35_XH4K3HT	28A
ROC3	W35_XH4K3HT	30C
ROC4	W35_XH4K3HT	31A
ROC5	W35_XH4K3HT	31B

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 138 144 140 122 160 144

Vana, VanaData 135 129 124 111 134 141

CalDelData and plots 75 87 95 89 70 91

VthrCompData and plots 81 74 75 55 89 70

TestDdata ,TestD Plots 2 0 0 0 0 2

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	125	120	150	125	125	110
Vsf	140	140	145	125	140	140
VoffsetOp	85	90	80	50	110	100
VIbias_PH	100	95	105	95	100	100

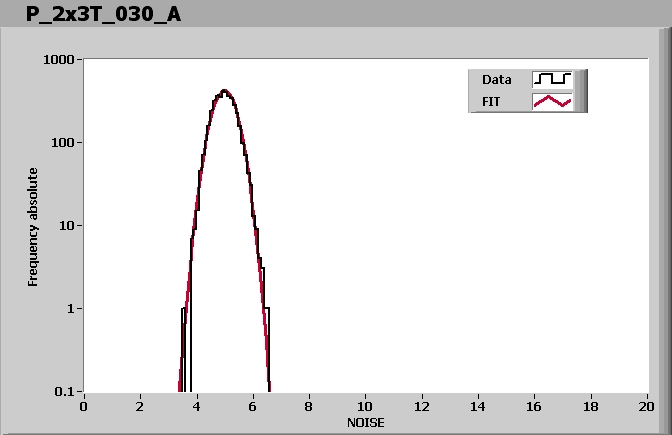

ROC0 NOISE			MEAN = 4.983739 SIGMA = 0.393608
ROC1 NOISE			MEAN = 4.253348 SIGMA = 0.315558

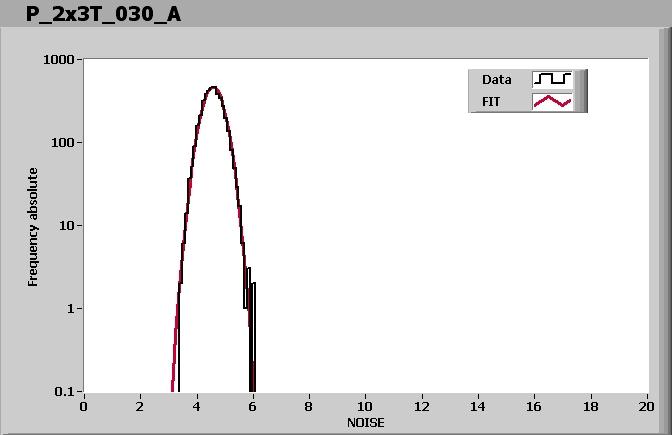

ROC2 NOISE			MEAN = 4.574559 SIGMA = 0.357166

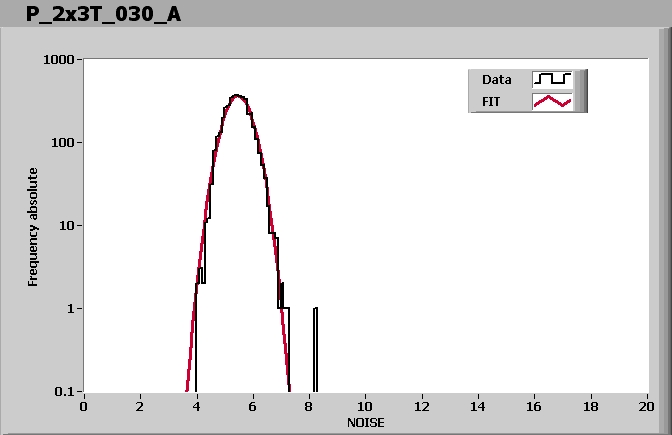

ROC3 NOISE			MEAN = 5.460044 SIGMA = 0.451440
ROC4 NOISE			MEAN = 4.117050 SIGMA = 0.329126
ROC5 NOISE			MEAN = 4.605998 SIGMA = 0.357424

Comment (if any): Good.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:57 PM

Ibias_DAC, Ibias_DAC Data	138	144	140	122	160	144
Vana, VanaData	135	129	124	111	134	141
CalDelData and plots	75	87	95	89	70	91
VthrCompData and plots	81	74	75	55	89	70
TestDdata ,TestD Plots	2	0	0	0	0	2
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
