![[IMAGE] of](P_2x3T_017_C_IV.jpg)

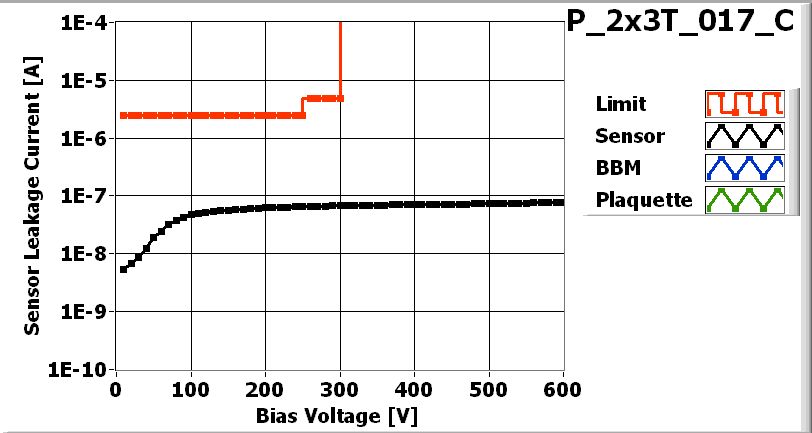

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_017_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_017-2x3T |
| VHDI | 2x3_273 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XL4K3DT | 43C |
| ROC1 | XL4K3DT | 31D |
| ROC2 | XL4K3DT | 33A |
| ROC3 | XL4K3DT | 34A |
| ROC4 | XL4K3DT | 28D |
| ROC5 | XL4K3DT | 05B |
Inspected by Arndt Kirk on date 2006-07-20
| LR_dev | 0.031 |
| LL_dev | 0.025 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-20 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-20 by Bolla Gino
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 153 | 175 | 178 | 181 | 153 | 177 | |
| Vana | 134 | 129 | 143 | 131 | 125 | 131 | |
| Cal_Del | 95 | 75 | 85 | 88 | 97 | 96 | |
| Vthrs_Comp | 76 | 79 | 84 | 81 | 76 | 85 | |
| Unbumped | 0 | 0 | 0 | 0 | 1 | 1 | |
| Dead | 0 | 0 | 1 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

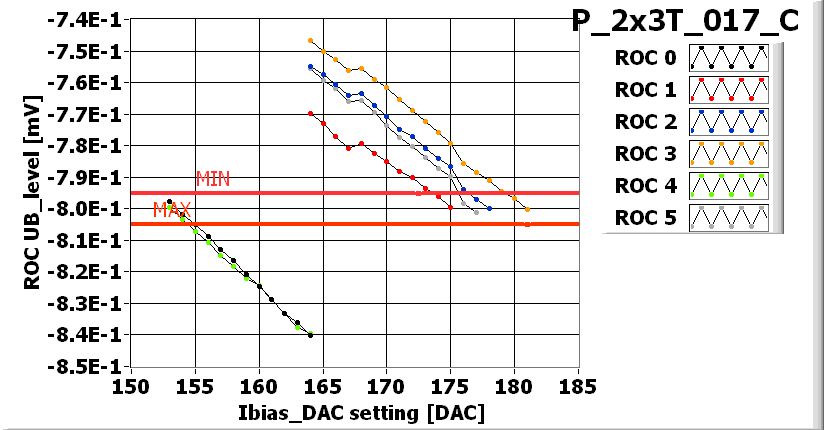

![[IMAGE] of](P_2x3T_017_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

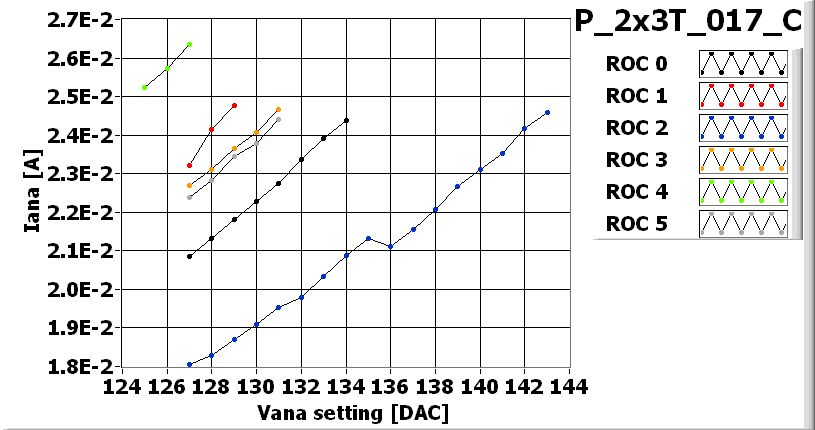

![[IMAGE] of](P_2x3T_017_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_017_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_017_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_017_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_017_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-21
