| IV_XML-File |

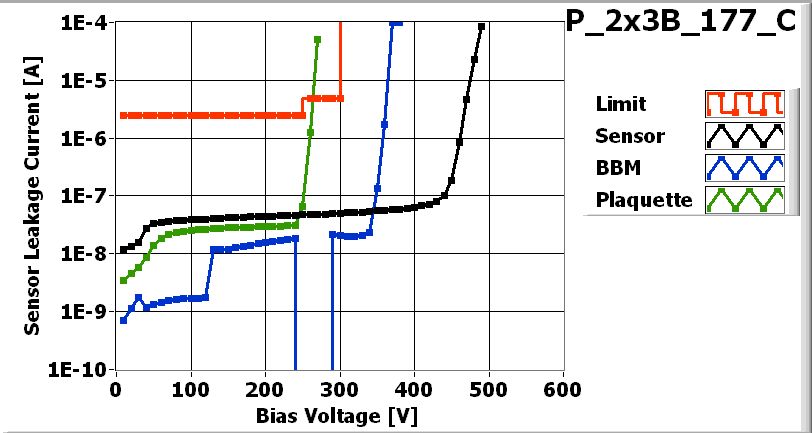

| Maximum Voltage 270 V |
![[IMAGE] of](P_2x3B_177_C_LASER.jpg)
| LASER_XML-File |

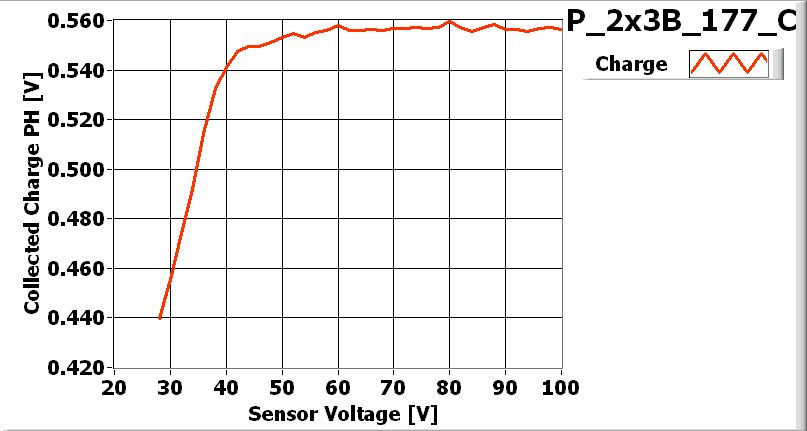

| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Arndt Kirk on date 5/1/2007
| Part | ID |
|---|---|
| BBM | BBM_177-2x3B |
| VHDI | 2x3_420 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DWLQFTT | 06D |
| ROC1 | DWLQFTT | 67B |
| ROC2 | DWLQFTT | 67D |
| ROC3 | DWLQFTT | 47B |
| ROC4 | DWLQFTT | 47A |
| ROC5 | DWLQFTT | 67C |
Inspected by Lockwood Gale on date 5/3/2007
| LR_dev | 0.021 |
| LL_dev | 0.030 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/3/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/4/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 5/4/2007 by Ozhan Koybasi
P_2x3B_177_Con 5/7/2007 11:48 AM
P_2x3B_177_Con 5/7/2007 11:48 AM
PLAQUETTE TESTED on 2007-05-07 by mia tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 138 | 132 | 138 | 140 | 142 | 142 | |
| Vana | 133 | 111 | 137 | 127 | 149 | 141 | |
| Cal_Del | 70 | 86 | 72 | 90 | 66 | 83 | |
| Vthrs_Comp | 85 | 63 | 79 | 77 | 86 | 84 | |
| Unbumped | 2 | 973 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 1 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 2 | 973 | 1 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_177_C_Ibias-dac.jpg) |

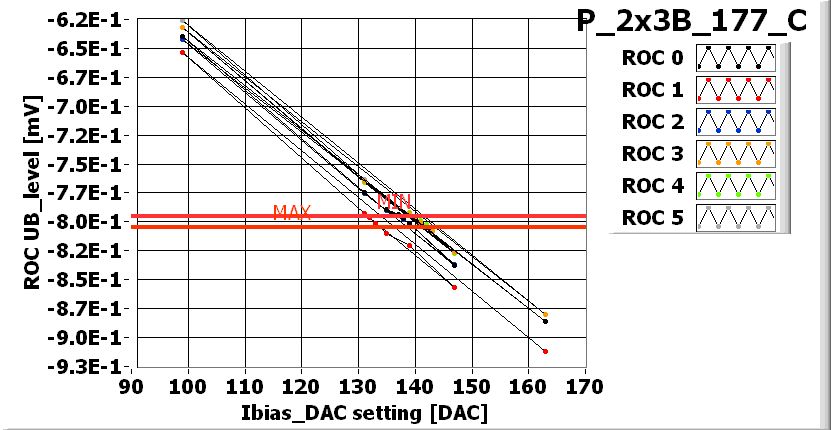

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_177_C_Vana.jpg) |

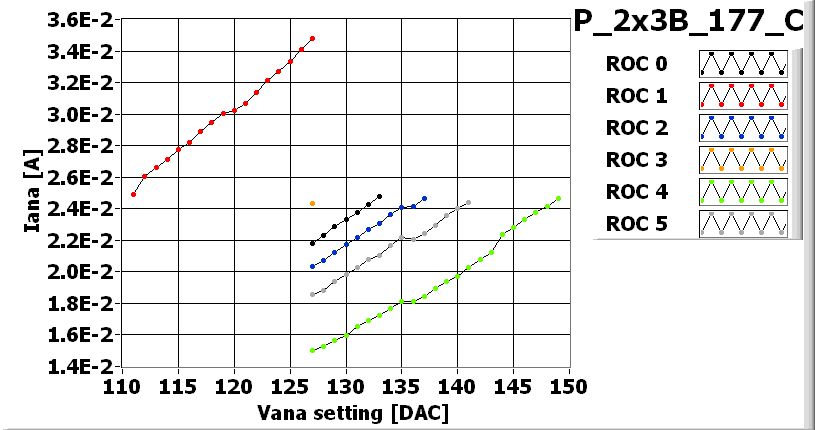

VANA_XML-File |
![[IMAGE] of](P_2x3B_177_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_177_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_177_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_177_Cno-bump-light.jpg) |

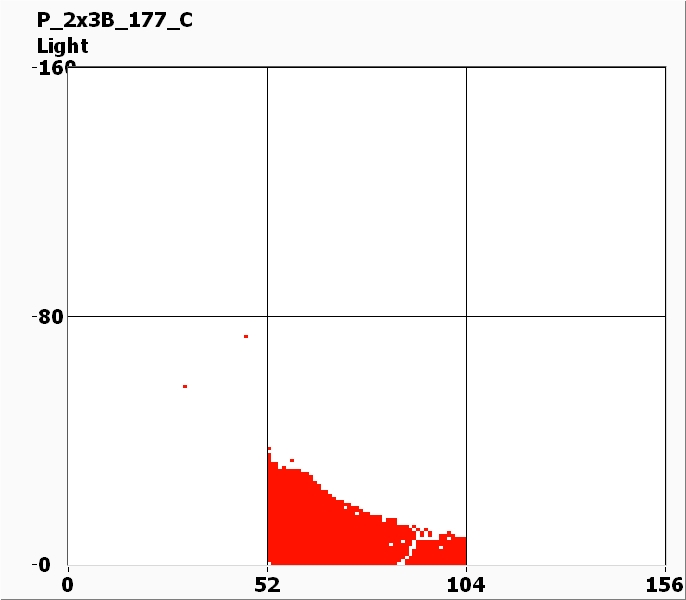

LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 165 | 100 | 125 | 95 | 110 |
| Vsf | 140 | 135 | 140 | 135 | 145 | 140 |
| VoffsetOp | 85 | 70 | 105 | 90 | 90 | 85 |
| VIbias_PH | 100 | 105 | 95 | 100 | 100 | 95 |

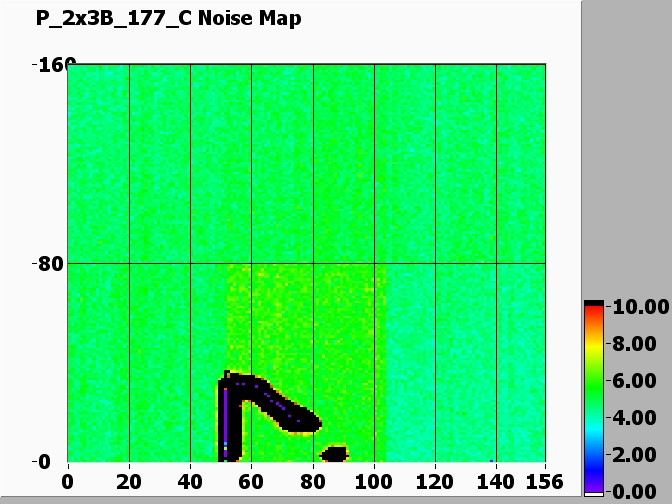

Noise MAP
![[IMAGE] of](P_2x3B_177_C-250-noise.jpg)

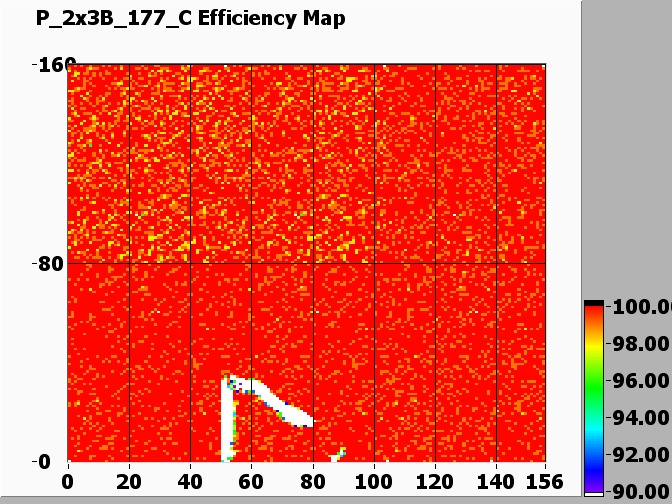

Efficiency MAP
![[IMAGE] of](P_2x3B_177_C-250-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
