P_2x3B_177

P_2x3B_177_C

Production testing

Date:5/7/2007

Operator: mia tosi

start testing time:11:48 AM

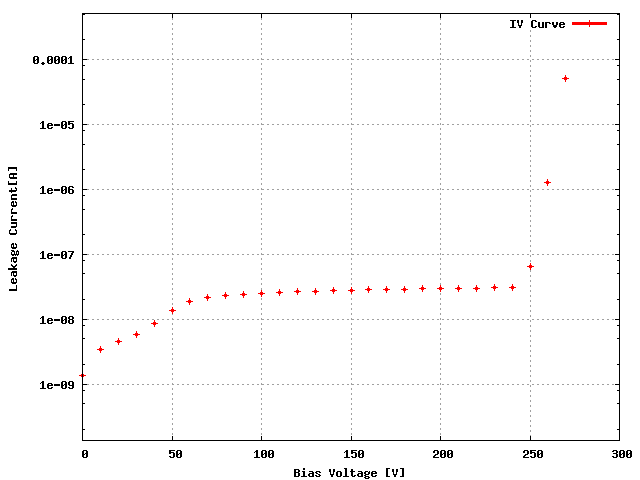

Sensor: S_2x3B_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 DWLQFTT 06D

ROC1 DWLQFTT 67B

ROC2 DWLQFTT 67D

ROC3 DWLQFTT 47B

ROC4 DWLQFTT 47A

ROC5 DWLQFTT 67C

ROC	ROC wafer	Label
ROC0	DWLQFTT	06D
ROC1	DWLQFTT	67B
ROC2	DWLQFTT	67D
ROC3	DWLQFTT	47B
ROC4	DWLQFTT	47A
ROC5	DWLQFTT	67C

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 138 132 138 140 142 142

Vana, VanaData 133 111 137 127 149 141

CalDelData and plots 70 86 72 90 66 83

VthrCompData and plots 85 63 79 77 86 84

TestDdata ,TestD Plots 2 690 1 0 0 0

LightData ,Light Plots 2 973 0 0 0 0

Pass/Fail TestD GOOD BAD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD BAD GOOD GOOD GOOD GOOD

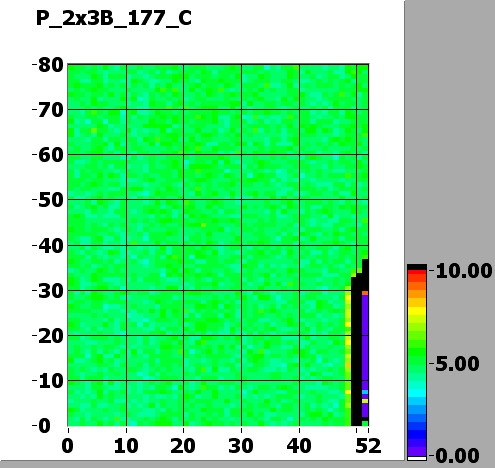

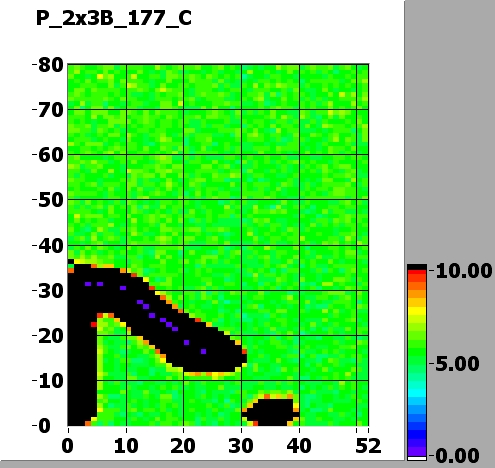

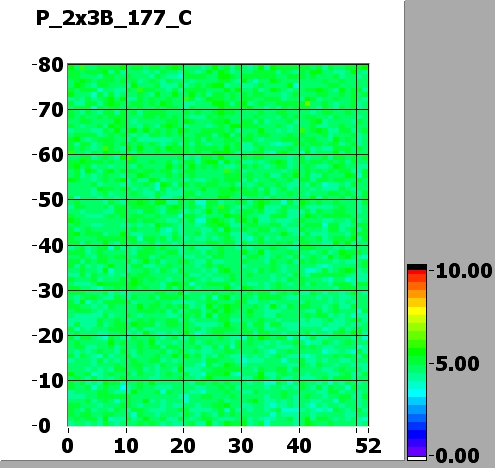

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	120	165	100	125	95	110
Vsf	140	135	140	135	145	140
VoffsetOp	85	70	105	90	90	85
VIbias_PH	100	105	95	100	100	95

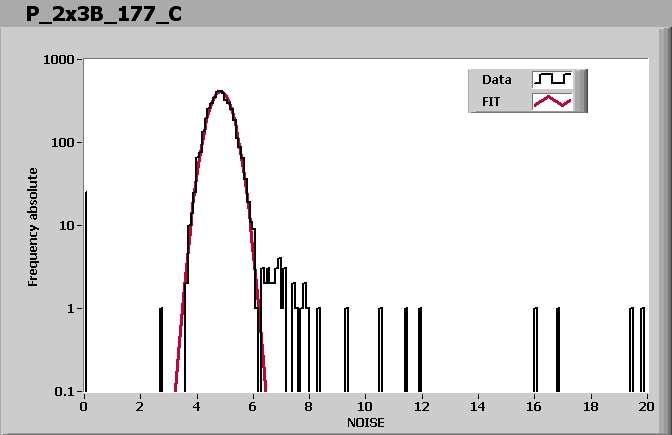

ROC0 NOISE			MEAN = 4.839076 SIGMA = 0.390294

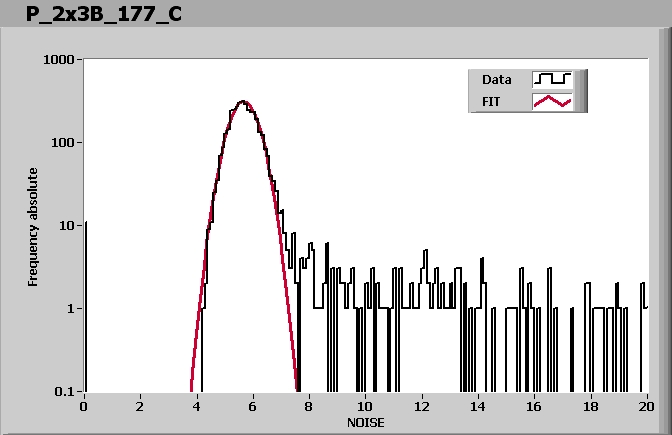

ROC1 NOISE			MEAN = 5.664212 SIGMA = 0.468201

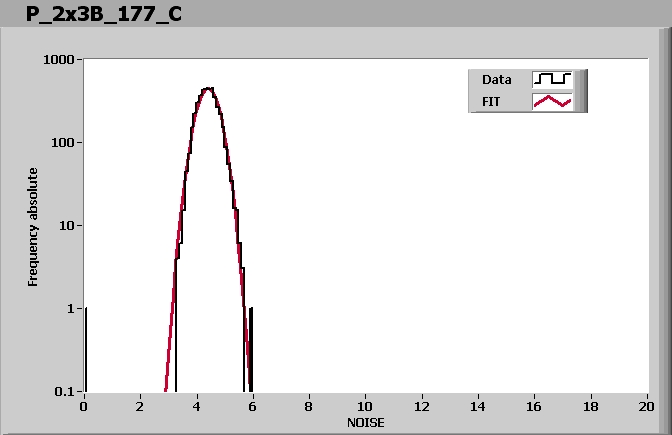

ROC2 NOISE			MEAN = 4.394151 SIGMA = 0.366257

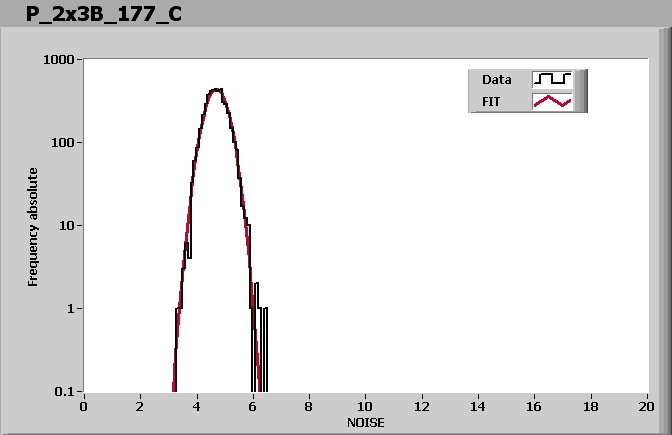

ROC3 NOISE			MEAN = 4.693861 SIGMA = 0.376218
ROC4 NOISE			MEAN = 4.932018 SIGMA = 0.369036
ROC5 NOISE			MEAN = 4.708664 SIGMA = 0.371651

Comment (if any): roc 1 very bad

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:08 PM

Ibias_DAC, Ibias_DAC Data	138	132	138	140	142	142
Vana, VanaData	133	111	137	127	149	141
CalDelData and plots	70	86	72	90	66	83
VthrCompData and plots	85	63	79	77	86	84
TestDdata ,TestD Plots	2	690	1	0	0	0
LightData ,Light Plots	2	973	0	0	0	0
Pass/Fail TestD	GOOD	BAD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	BAD	GOOD	GOOD	GOOD	GOOD
