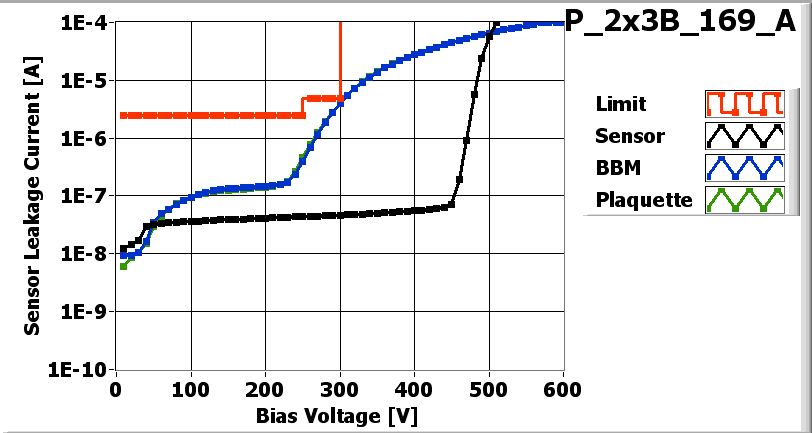

| IV_XML-File |
| Maximum Voltage 390 V |
![[IMAGE] of](P_2x3B_169_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_169-2x3B |
| VHDI | 2x3_601 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W46_D3LQC5T | 52B |
| ROC1 | W46_D3LQC5T | 51C |
| ROC2 | W46_D3LQC5T | 51A |
| ROC3 | W45_D3LQFCT | 14A |
| ROC4 | W45_D3LQFCT | 14B |
| ROC5 | W45_D3LQFCT | 14C |
Inspected by Lockwood Gale on date 5/30/2007
| LR_dev | 0.022 |
| LL_dev | 0.013 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/30/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/30/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/30/2007 by Perera Rajiv
P_2x3B_169_Aon 5/31/2007 12:11 PM
P_2x3B_169_Aon 5/31/2007 12:11 PM
PLAQUETTE TESTED on 2007-05-31 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 162 | 160 | 152 | 156 | 150 | 156 | |
| Vana | 140 | 137 | 131 | 143 | 130 | 149 | |
| Cal_Del | 98 | 75 | 91 | 74 | 93 | 94 | |
| Vthrs_Comp | 81 | 84 | 79 | 90 | 79 | 86 | |
| Unbumped | 0 | 0 | 0 | 0 | 1 | 0 | |
| Dead | 0 | 0 | 2 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 2 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

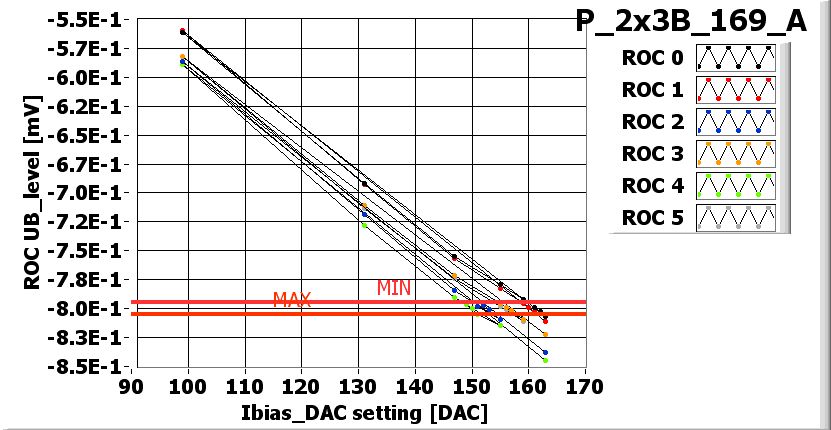

![[IMAGE] of](P_2x3B_169_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

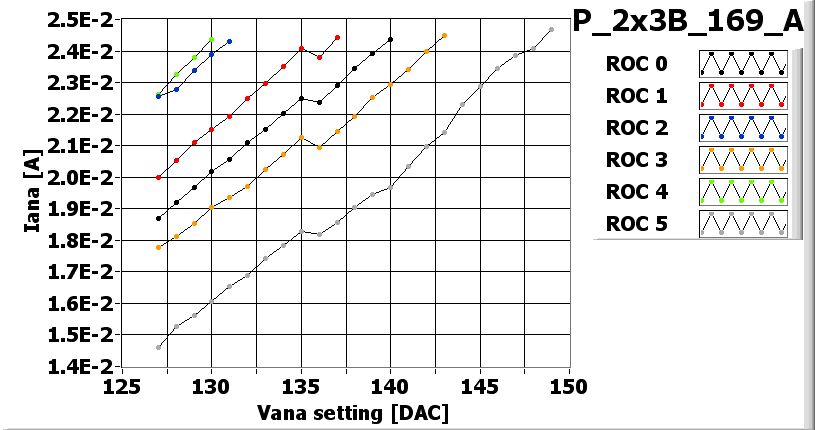

![[IMAGE] of](P_2x3B_169_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_169_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_169_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_169_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_169_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 110 | 100 | 95 | 95 | 95 |
| Vsf | 145 | 140 | 140 | 145 | 140 | 145 |
| VoffsetOp | 80 | 95 | 100 | 110 | 100 | 115 |
| VIbias_PH | 100 | 105 | 95 | 100 | 100 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_169_A-370-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_169_A-370-efficiency.jpg)

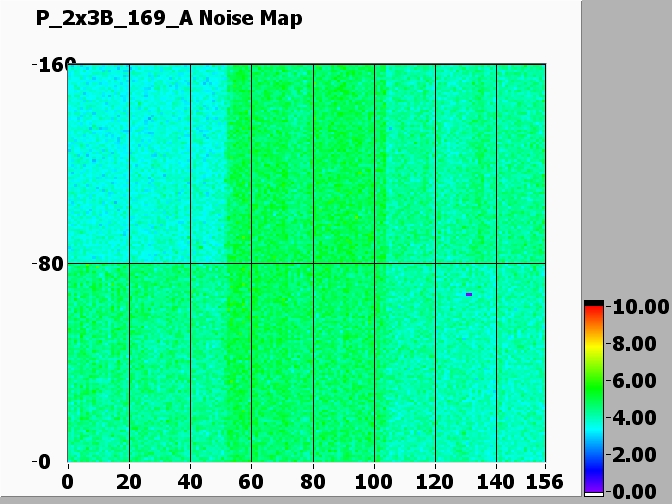

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_169_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_169_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
