P_2x3B_169

P_2x3B_169_A

Production testing

Date:5/31/2007

Operator: Emily Grace

start testing time:12:11 PM

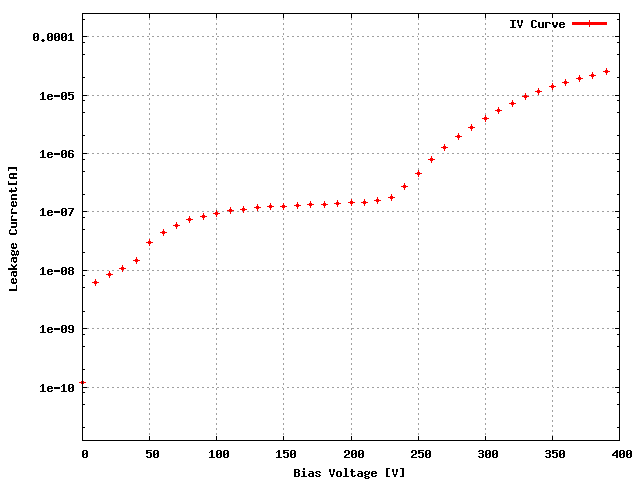

Sensor: S_2x3B_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W46_D3LQC5T 52B

ROC1 W46_D3LQC5T 51C

ROC2 W46_D3LQC5T 51A

ROC3 W45_D3LQFCT 14A

ROC4 W45_D3LQFCT 14B

ROC5 W45_D3LQFCT 14C

ROC	ROC wafer	Label
ROC0	W46_D3LQC5T	52B
ROC1	W46_D3LQC5T	51C
ROC2	W46_D3LQC5T	51A
ROC3	W45_D3LQFCT	14A
ROC4	W45_D3LQFCT	14B
ROC5	W45_D3LQFCT	14C

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data 162 160 152 156 150 156

Vana, VanaData 140 137 131 143 130 149

CalDelData and plots 98 75 91 74 93 94

VthrCompData and plots 81 84 79 90 79 86

TestDdata ,TestD Plots 0 0 5 0 1 0

LightData ,Light Plots 0 0 0 0 1 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

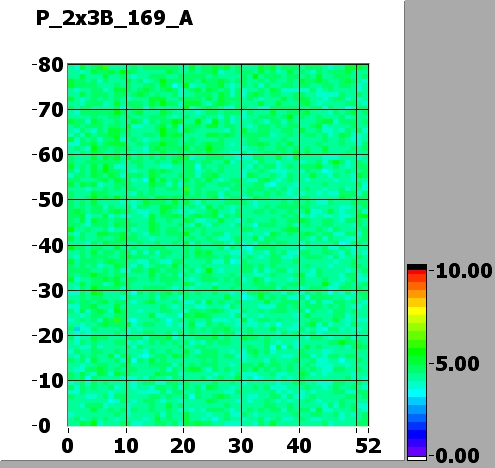

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	110	100	95	95	95
Vsf	145	140	140	145	140	145
VoffsetOp	80	95	100	110	100	115
VIbias_PH	100	105	95	100	100	95

ROC0 NOISE			MEAN = 4.338077 SIGMA = 0.351762

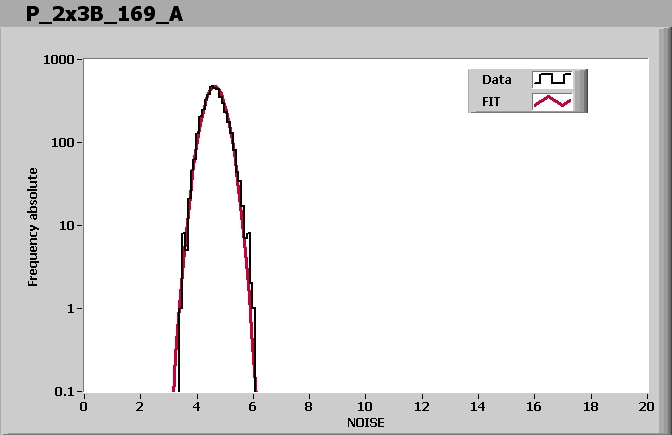

ROC1 NOISE			MEAN = 4.632111 SIGMA = 0.357777

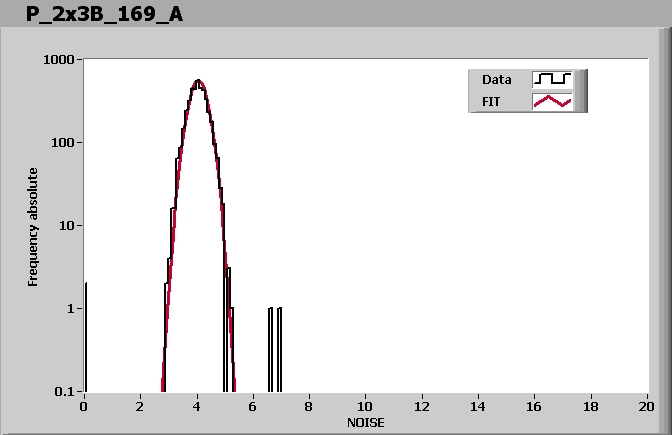

ROC2 NOISE			MEAN = 4.050589 SIGMA = 0.307910

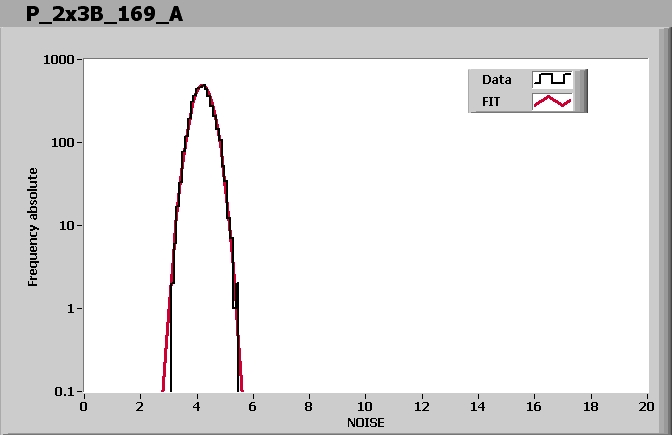

ROC3 NOISE			MEAN = 4.200427 SIGMA = 0.340205
ROC4 NOISE			MEAN = 4.740941 SIGMA = 0.377829
ROC5 NOISE			MEAN = 3.598219 SIGMA = 0.292235

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:37 PM

Ibias_DAC, Ibias_DAC Data	162	160	152	156	150	156
Vana, VanaData	140	137	131	143	130	149
CalDelData and plots	98	75	91	74	93	94
VthrCompData and plots	81	84	79	90	79	86
TestDdata ,TestD Plots	0	0	5	0	1	0
LightData ,Light Plots	0	0	0	0	1	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
