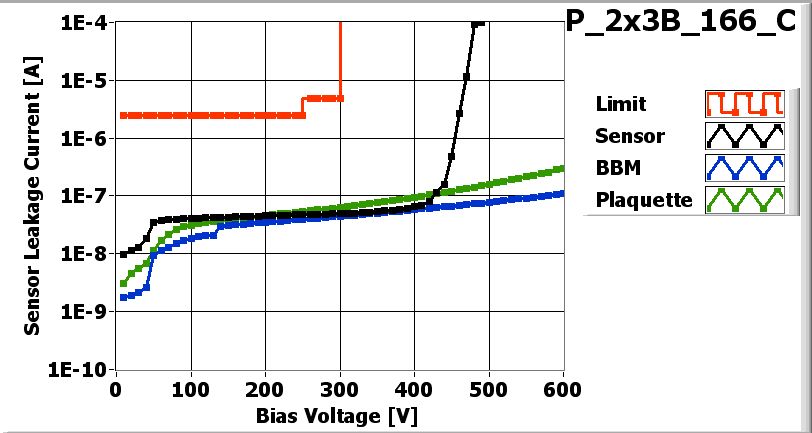

![[IMAGE] of](P_2x3B_166_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_166_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 3/19/2007
| Part | ID |
|---|---|
| BBM | BBM_166-2x3B |
| VHDI | 2x3_497 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 05A |
| ROC1 | XG4KFCT | 04B |
| ROC2 | XG4KFCT | 04A |
| ROC3 | XG4KFCT | 03B |
| ROC4 | XG4KFCT | 03A |
| ROC5 | XG4KFCT | 06D |
Inspected by Arndt Kirk on date 3/20/2007
| LR_dev | 0.048 |
| LL_dev | 0.065 |
| FINAL COMMENT by Arndt Kirk | no assembly problems No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 3/20/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/22/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/22/2007 by Ozhan Koybasi
P_2x3B_166_Con 3/23/2007 1:18 PM
P_2x3B_166_Con 3/23/2007 1:18 PM
PLAQUETTE TESTED on 2007-03-23 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 130 | 122 | 128 | 144 | 122 | 142 | |
| Vana | 124 | 116 | 127 | 140 | 110 | 118 | |
| Cal_Del | 85 | 84 | 89 | 73 | 104 | 80 | |
| Vthrs_Comp | 76 | 78 | 73 | 80 | 70 | 77 | |
| Unbumped | 1 | 0 | 0 | 4 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 1 | 0 | 4 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

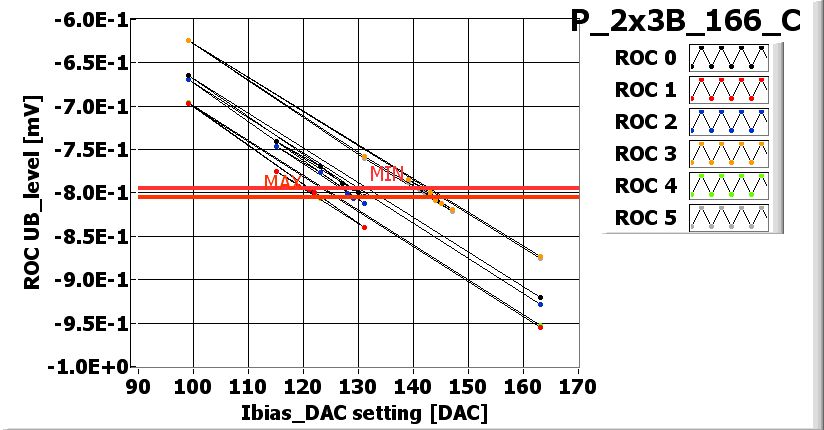

![[IMAGE] of](P_2x3B_166_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

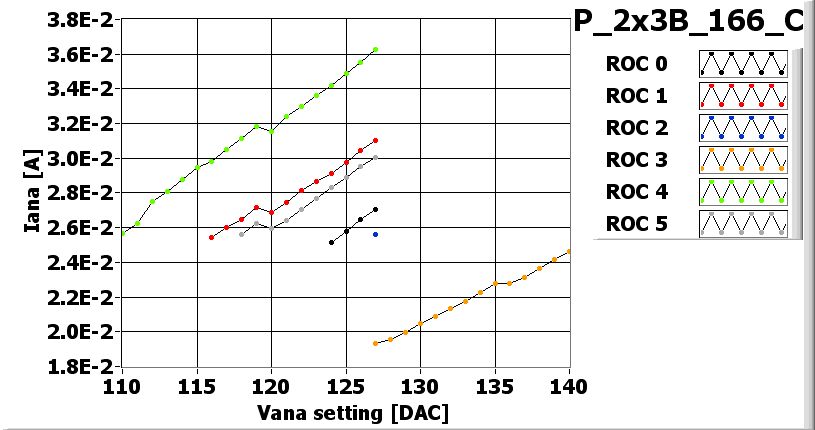

![[IMAGE] of](P_2x3B_166_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_166_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_166_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_166_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_166_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 130 | 135 | 100 | 155 | 145 |
| Vsf | 140 | 135 | 135 | 140 | 130 | 140 |
| VoffsetOp | 70 | 80 | 75 | 100 | 80 | 80 |
| VIbias_PH | 95 | 105 | 105 | 95 | 95 | 105 |

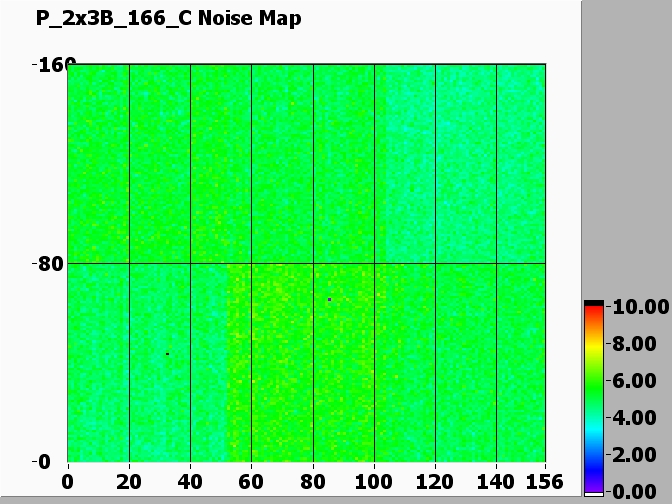

Noise MAP
![[IMAGE] of](P_2x3B_166_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_166_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
