| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_164_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 11/19/2007
| Part | ID |
|---|---|
| BBM | BBM_164-2x3B |
| VHDI | 2x3_382 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W53_DXLQG9T | 40D |
| ROC1 | W53_DXLQG9T | 40C |
| ROC2 | W53_DXLQG9T | 40B |
| ROC3 | W53_DXLQG9T | 36C |
| ROC4 | W53_DXLQG9T | 37B |
| ROC5 | W53_DXLQG9T | 37D |
Inspected by Lockwood Gale on date 12/11/2007
| LR_dev | 0.051 |
| LL_dev | 0.054 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC3 ch7 wo 2 tries. No other wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 12/11/2007 by Lockwood Gale
PLAQUETTE encapsulated on 12/12/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 12/12/2007 by Ozhan Koybasi
P_2x3B_164_Aon 12/13/2007 11:31 AM
P_2x3B_164_Aon 12/13/2007 11:31 AM
PLAQUETTE TESTED on 2007-12-13 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 148 | 156 | 152 | 150 | 150 | 156 | |
| Vana | 141 | 149 | 135 | 145 | 139 | 162 | |
| Cal_Del | 86 | 97 | 92 | 73 | 85 | 84 | |
| Vthrs_Comp | 84 | 81 | 78 | 90 | 83 | 93 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 1 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_164_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

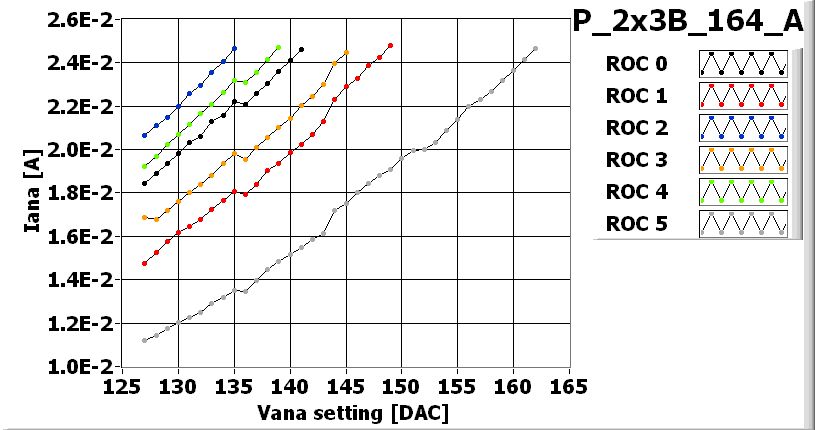

![[IMAGE] of](P_2x3B_164_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_164_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_164_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_164_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_164_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 90 | 105 | 95 | 100 | 95 |
| Vsf | 140 | 150 | 140 | 145 | 140 | 155 |
| VoffsetOp | 110 | 110 | 105 | 110 | 95 | 110 |
| VIbias_PH | 95 | 100 | 100 | 100 | 105 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_164_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_164_A-580-efficiency.jpg)

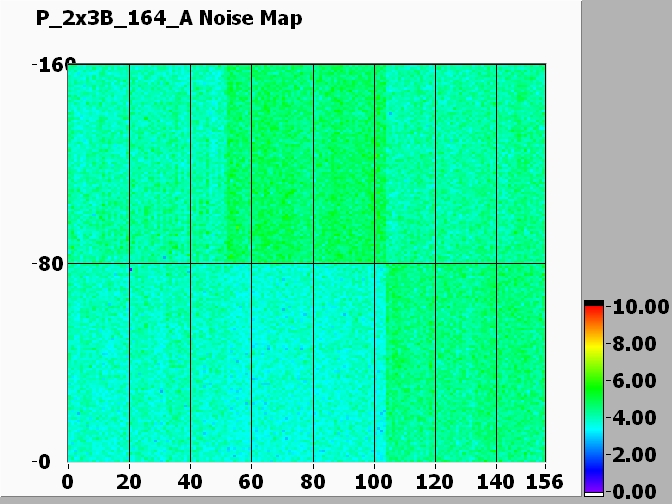

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_164_A-200-noise.jpg)

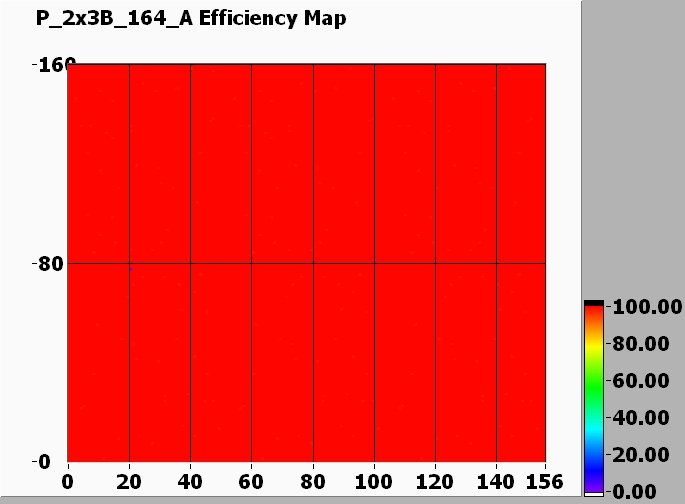

Efficiency MAP
![[IMAGE] of](P_2x3B_164_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
