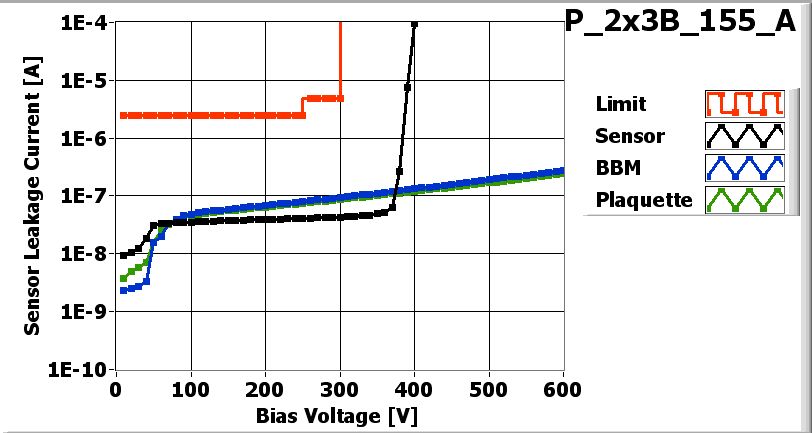

![[IMAGE] of](P_2x3B_155_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

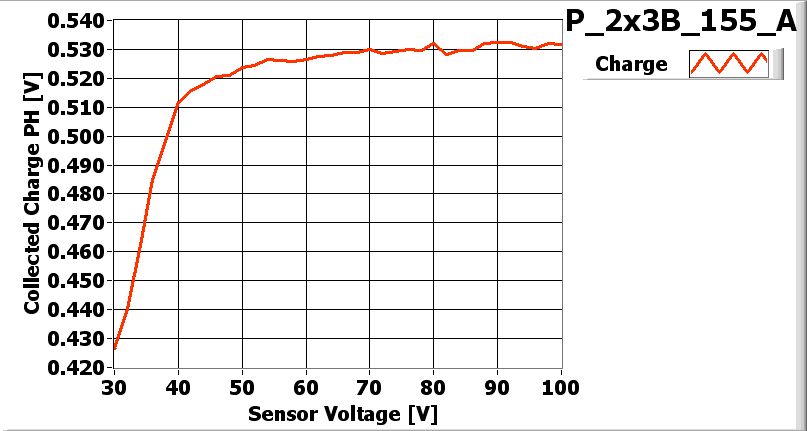

![[IMAGE] of](P_2x3B_155_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 2/23/2007
| Part | ID |
|---|---|
| BBM | BBM_155-2x3B |
| VHDI | 2x3_478 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W29_X64K5ST | 57D |
| ROC1 | W29_X64K5ST | 57A |
| ROC2 | W29_X64K5ST | 56B |
| ROC3 | W29_X64K5ST | 36D |
| ROC4 | W29_X64K5ST | 37B |
| ROC5 | W29_X64K5ST | 37C |
Inspected by Lockwood Gale on date 2/27/2007
| LR_dev | 0.038 |
| LL_dev | 0.032 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No problem. |
PLAQUETTE made READY for ENCAPSULATION on 2/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/1/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 3/1/2007 by Arndt Kirk
P_2x3B_155_Aon 3/1/2007 4:33 PM
P_2x3B_155_A-1on 3/2/2007 2:59 PM
P_2x3B_155_A-1on 3/2/2007 2:59 PM
PLAQUETTE TESTED on 2007-03-02 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 128 | 138 | 130 | 138 | 138 | 148 | |
| Vana | 131 | 130 | 132 | 143 | 131 | 146 | |
| Cal_Del | 75 | 84 | 92 | 76 | 83 | 82 | |
| Vthrs_Comp | 80 | 79 | 74 | 82 | 75 | 83 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

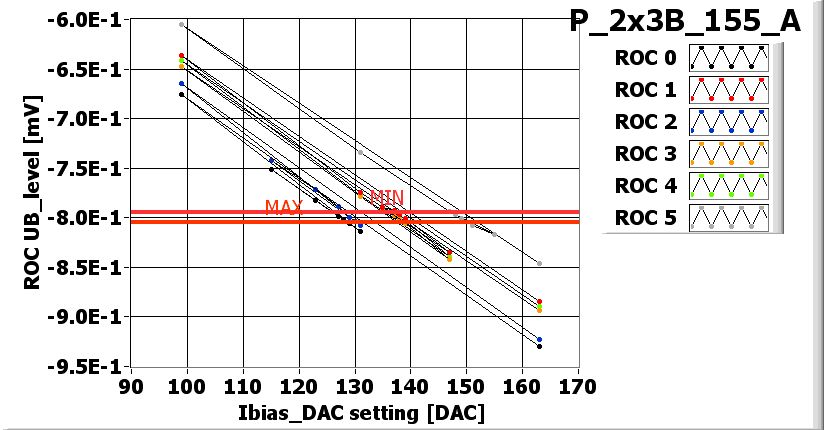

![[IMAGE] of](P_2x3B_155_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

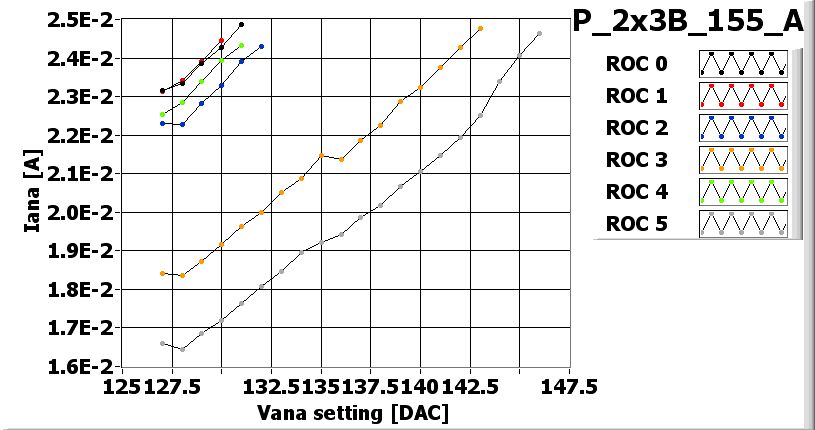

![[IMAGE] of](P_2x3B_155_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_155_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_155_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_155_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_155_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 135 | 115 | 105 | 95 | 110 | 95 |
| Vsf | 140 | 140 | 140 | 140 | 140 | 145 |
| VoffsetOp | 65 | 95 | 65 | 90 | 95 | 110 |
| VIbias_PH | 105 | 100 | 95 | 100 | 100 | 100 |
Noise MAP
![[IMAGE] of](P_2x3B_155_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_155_A-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
