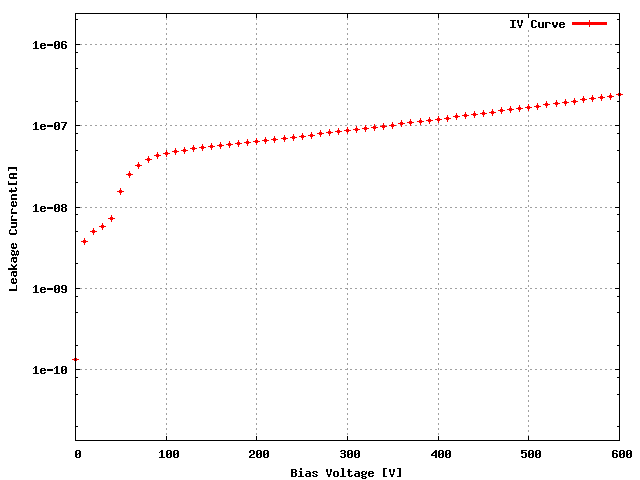

Sensor: S_2x3B_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W29_X64K5ST | 57D |
ROC1 | W29_X64K5ST | 57A |
ROC2 | W29_X64K5ST | 56B |
ROC3 | W29_X64K5ST | 36D |
ROC4 | W29_X64K5ST | 37B |
ROC5 | W29_X64K5ST | 37C |
Ibias_DAC, Ibias_DAC Data | 128 | 138 | 130 | 138 | 138 | 148 |
Vana, VanaData | 131 | 130 | 132 | 143 | 131 | 146 |
CalDelData and plots | 75 | 84 | 92 | 76 | 83 | 82 |
VthrCompData and plots | 80 | 79 | 74 | 82 | 75 | 83 | Depletion Voltage is -44 and suggested operational voltage is -84
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

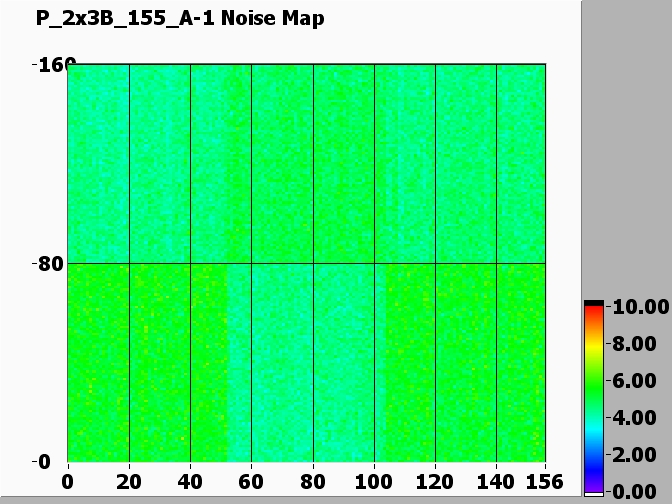

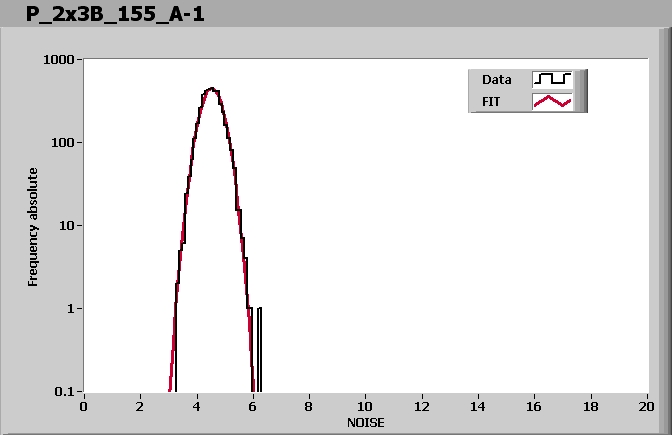

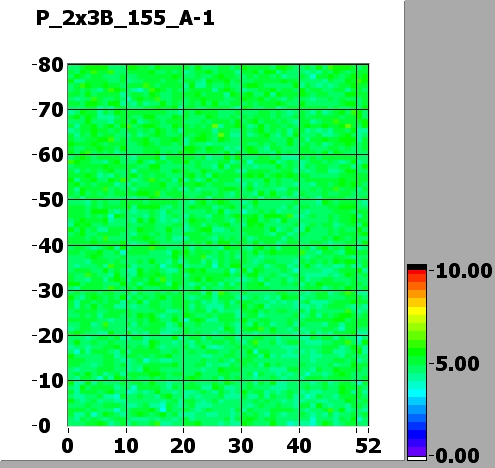

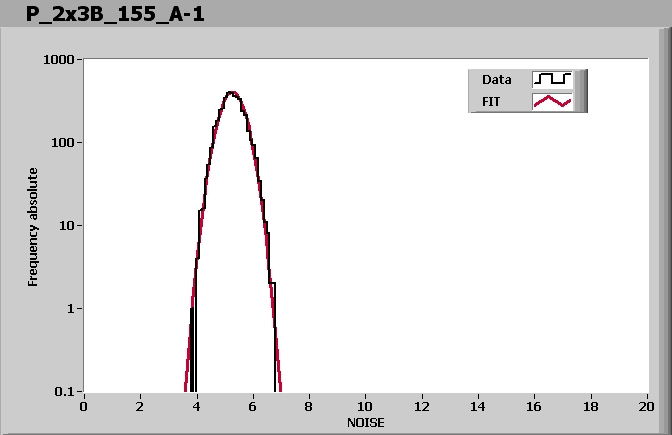

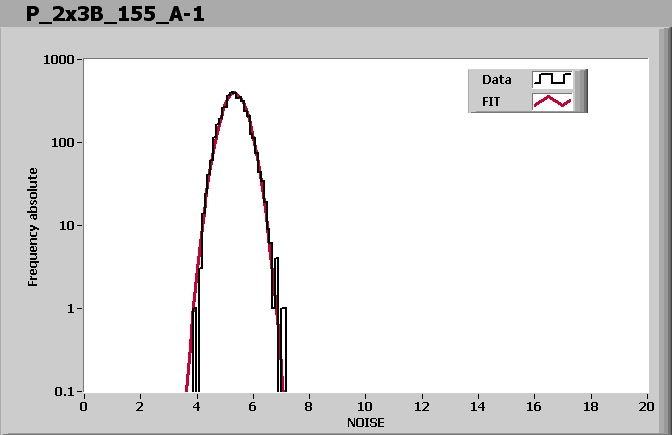

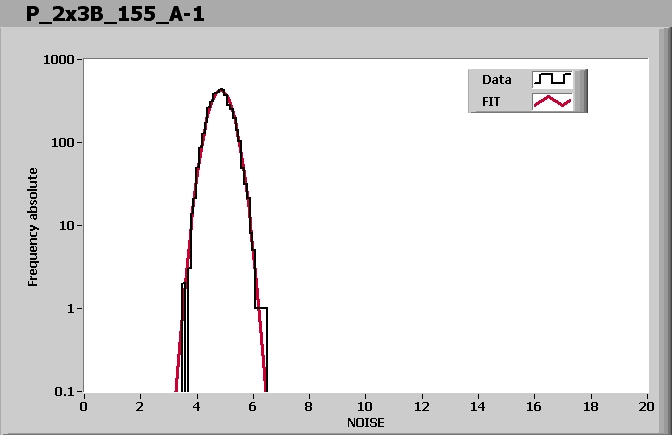

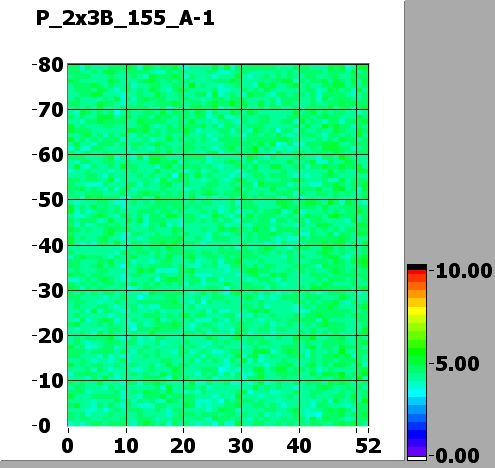

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 135 | 115 | 105 | 95 | 110 | 95 |
Vsf | 140 | 140 | 140 | 140 | 140 | 145 |
VoffsetOp | 65 | 95 | 65 | 90 | 95 | 110 |
VIbias_PH | 105 | 100 | 95 | 100 | 100 | 100 |
Comment (if any): Good.
This Device have been tested 1Times prior to this one and here are the links to the previous tests:End testing time: 3:17 PM
