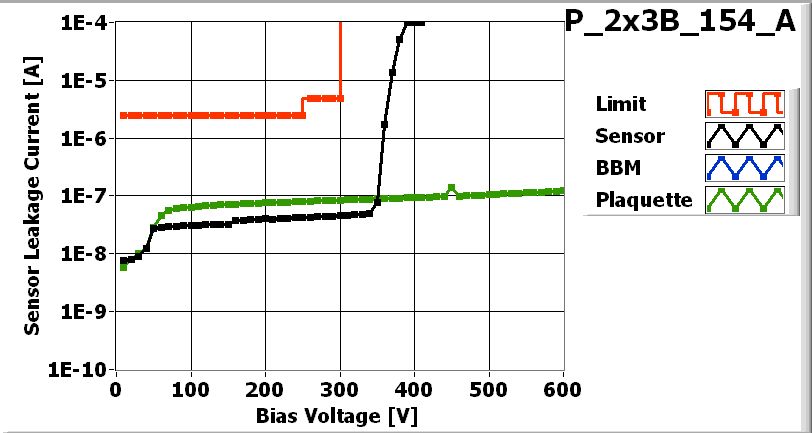

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_154_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Bolla Gino on date 2/18/2008
| Part | ID |
|---|---|
| BBM | BBM_154-2x3B |
| VHDI | 2x3_429 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W18_XJ4K3FT | 39B |
| ROC1 | W18_XJ4K3FT | 34B |
| ROC2 | W18_XJ4K3FT | 32B |
| ROC3 | W18_XJ4K3FT | 14A |
| ROC4 | W18_XJ4K3FT | 15A |
| ROC5 | W18_XJ4K3FT | 16A |
Inspected by Lockwood Gale on date 3/4/2008
| LR_dev | 0.066 |
| LL_dev | 0.071 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/4/2008 by Lockwood Gale
PLAQUETTE encapsulated on 3/5/2008 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/5/2008 by Ozhan Koybasi
P_2x3B_154_Aon 3/6/2008 3:54 PM
P_2x3B_154_Aon 3/6/2008 3:54 PM
PLAQUETTE TESTED on 2008-03-06 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 154 | 150 | 140 | 162 | 144 | 150 | |
| Vana | 114 | 120 | 124 | 120 | 110 | 127 | |
| Cal_Del | 78 | 83 | 96 | 77 | 84 | 75 | |
| Vthrs_Comp | 81 | 57 | 61 | 77 | 75 | 67 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_154_A_Ibias-dac.jpg) |

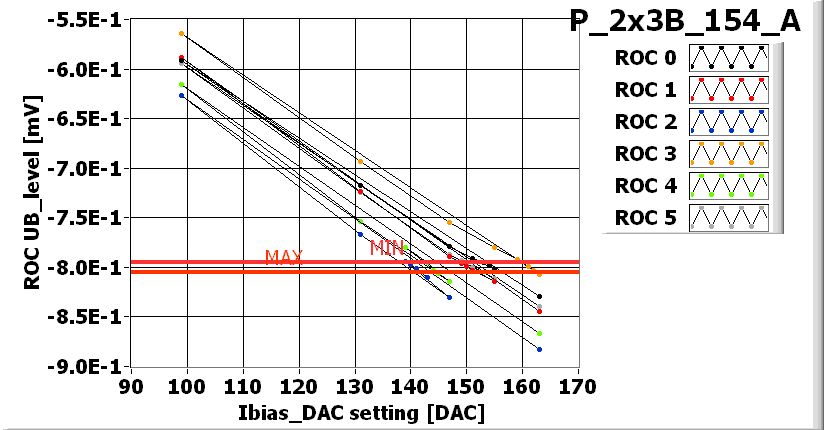

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_154_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_154_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_154_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_154_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_154_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 165 | 135 | 125 | 135 | 165 | 105 |
| Vsf | 140 | 135 | 140 | 135 | 125 | 135 |
| VoffsetOp | 80 | 55 | 50 | 80 | 65 | 55 |
| VIbias_PH | 105 | 95 | 105 | 105 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_154_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_154_A-580-efficiency.jpg)

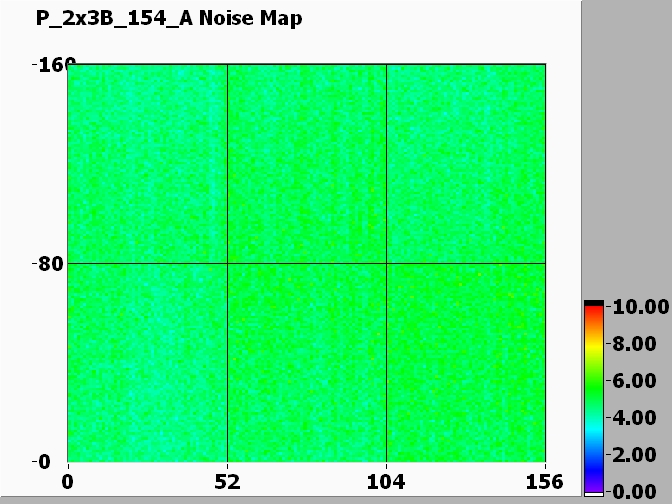

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_154_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_154_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
