P_2x3B_154

P_2x3B_154_A

Production testing

Date:3/6/2008

Operator: Ozhan Koybasi

start testing time:3:54 PM

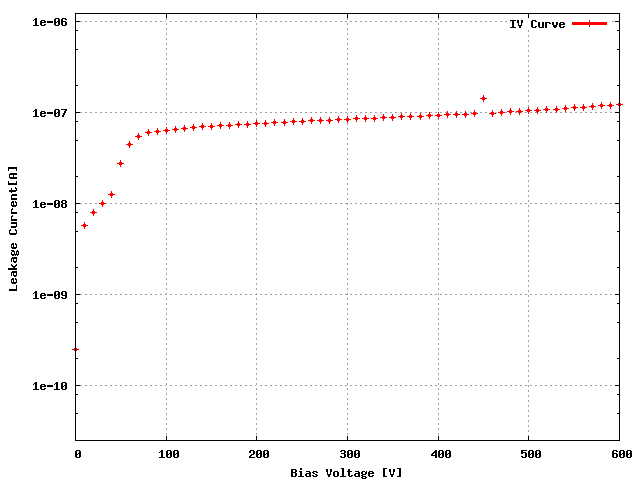

Sensor: S_2x3B_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W18_XJ4K3FT 39B

ROC1 W18_XJ4K3FT 34B

ROC2 W18_XJ4K3FT 32B

ROC3 W18_XJ4K3FT 14A

ROC4 W18_XJ4K3FT 15A

ROC5 W18_XJ4K3FT 16A

ROC	ROC wafer	Label
ROC0	W18_XJ4K3FT	39B
ROC1	W18_XJ4K3FT	34B
ROC2	W18_XJ4K3FT	32B
ROC3	W18_XJ4K3FT	14A
ROC4	W18_XJ4K3FT	15A
ROC5	W18_XJ4K3FT	16A

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data 154 150 140 162 144 150

Vana, VanaData 114 120 124 120 110 127

CalDelData and plots 78 83 96 77 84 75

VthrCompData and plots 81 57 61 77 75 67

TestDdata ,TestD Plots 1 0 0 0 1 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	165	135	125	135	165	105
Vsf	140	135	140	135	125	135
VoffsetOp	80	55	50	80	65	55
VIbias_PH	105	95	105	105	100	100

ROC0 NOISE			MEAN = 4.544838 SIGMA = 0.374453

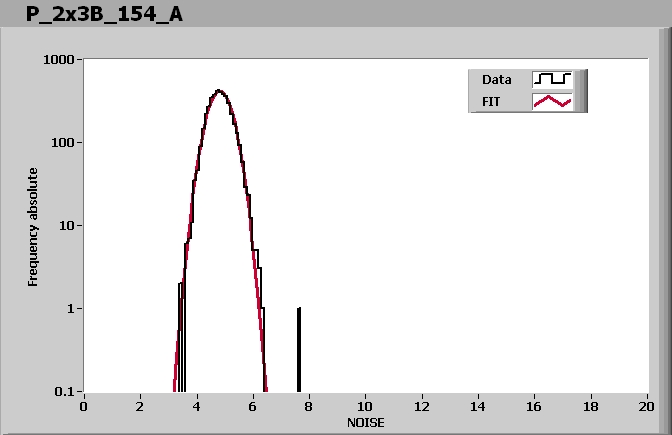

ROC1 NOISE			MEAN = 4.817976 SIGMA = 0.398257
ROC2 NOISE			MEAN = 5.003359 SIGMA = 0.402512

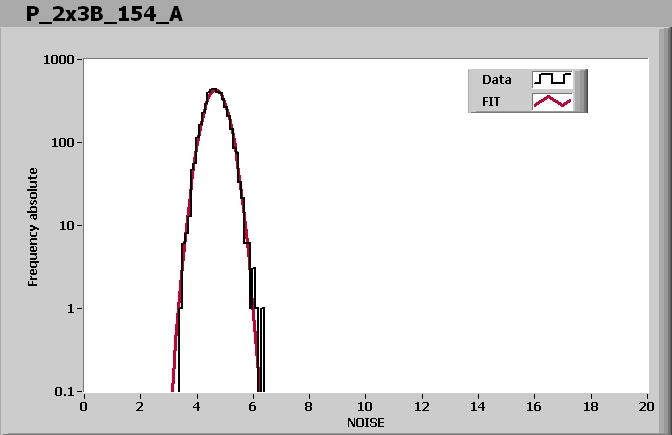

ROC3 NOISE			MEAN = 4.672363 SIGMA = 0.380571
ROC4 NOISE			MEAN = 4.793330 SIGMA = 0.410890
ROC5 NOISE			MEAN = 4.568137 SIGMA = 0.354661

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 4:21 PM

Ibias_DAC, Ibias_DAC Data	154	150	140	162	144	150
Vana, VanaData	114	120	124	120	110	127
CalDelData and plots	78	83	96	77	84	75
VthrCompData and plots	81	57	61	77	75	67
TestDdata ,TestD Plots	1	0	0	0	1	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
