P_2x3B_152

P_2x3B_152_A-1

Production testing

Date:3/5/2007

Operator: Cameron McKinney

start testing time:3:51 PM

Sensor: S_2x3B_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W34_XA4K3PT 65C

ROC1 W34_XA4K3PT 64D

ROC2 W34_XA4K3PT 64C

ROC3 W34_XA4K3PT 45B

ROC4 W34_XA4K3PT 45D

ROC5 W34_XA4K3PT 46A

ROC	ROC wafer	Label
ROC0	W34_XA4K3PT	65C
ROC1	W34_XA4K3PT	64D
ROC2	W34_XA4K3PT	64C
ROC3	W34_XA4K3PT	45B
ROC4	W34_XA4K3PT	45D
ROC5	W34_XA4K3PT	46A

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 146 146 154 138 142 134

Vana, VanaData 120 131 135 112 141 127

CalDelData and plots 79 84 80 97 94 88

VthrCompData and plots 77 75 89 67 75 80

TestDdata ,TestD Plots 0 0 0 0 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

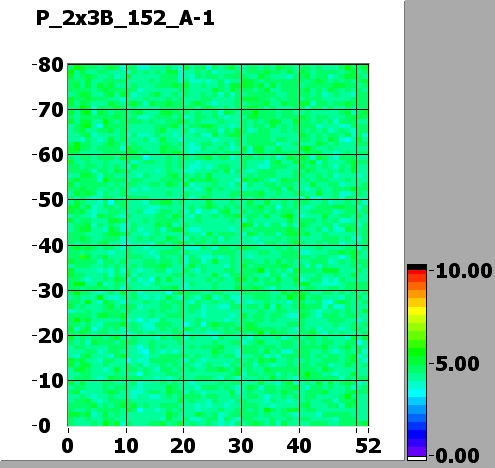

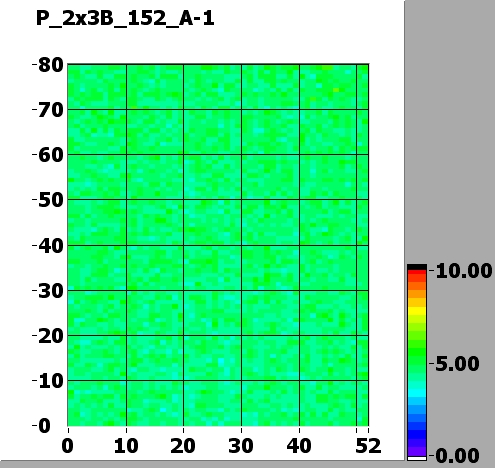

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	155	120	110	155	100	150
Vsf	140	140	140	135	140	140
VoffsetOp	70	80	100	80	90	95
VIbias_PH	95	100	100	100	105	100

ROC0 NOISE			MEAN = 4.317104 SIGMA = 0.328514

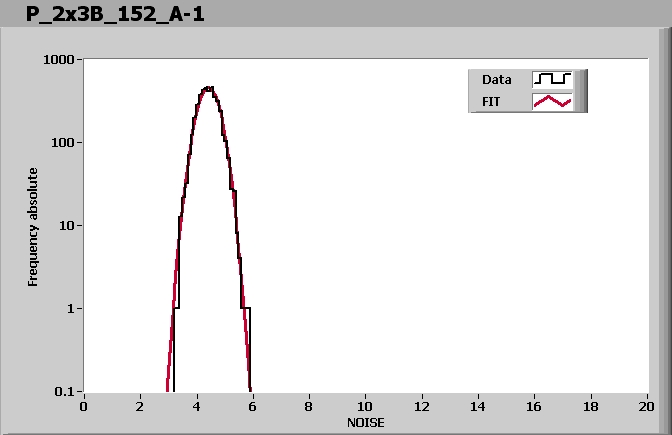

ROC1 NOISE			MEAN = 4.411333 SIGMA = 0.359073
ROC2 NOISE			MEAN = 4.201972 SIGMA = 0.350386
ROC3 NOISE			MEAN = 4.412486 SIGMA = 0.328946
ROC4 NOISE			MEAN = 4.748178 SIGMA = 0.362127
ROC5 NOISE			MEAN = 4.579780 SIGMA = 0.361611

Comment (if any): Good.

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x3B_152_A.html,

End testing time: 4:10 PM

Ibias_DAC, Ibias_DAC Data	146	146	154	138	142	134
Vana, VanaData	120	131	135	112	141	127
CalDelData and plots	79	84	80	97	94	88
VthrCompData and plots	77	75	89	67	75	80
TestDdata ,TestD Plots	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
