P_2x3B_152

P_2x3B_152_A

Production testing

Date:3/5/2007

Operator: Cameron McKinney

start testing time:3:30 PM

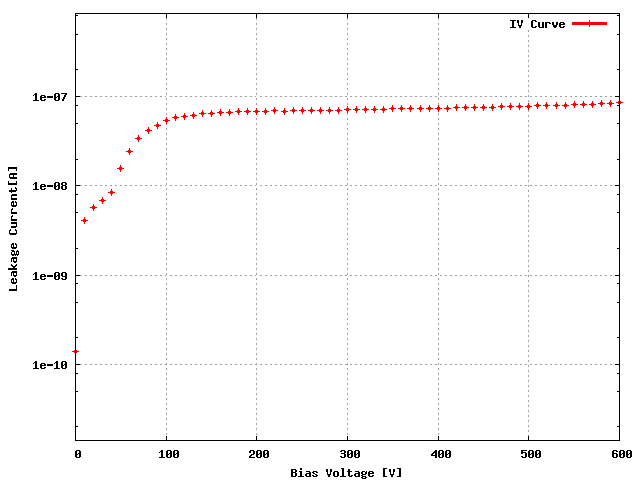

Sensor: S_2x3B_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W34_XA4K3PT 65C

ROC1 W34_XA4K3PT 64D

ROC2 W34_XA4K3PT 64C

ROC3 W34_XA4K3PT 45B

ROC4 W34_XA4K3PT 45D

ROC5 W34_XA4K3PT 46A

ROC	ROC wafer	Label
ROC0	W34_XA4K3PT	65C
ROC1	W34_XA4K3PT	64D
ROC2	W34_XA4K3PT	64C
ROC3	W34_XA4K3PT	45B
ROC4	W34_XA4K3PT	45D
ROC5	W34_XA4K3PT	46A

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 144 146 154 138 142 134

Vana, VanaData 120 131 135 112 141 127

CalDelData and plots 79 84 80 97 94 88

VthrCompData and plots 77 75 89 67 75 80

TestDdata ,TestD Plots 0 0 0 0 0 0

LightData ,Light Plots 4160 4160 4160 4160 4160 4160

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT BAD BAD BAD BAD BAD BAD

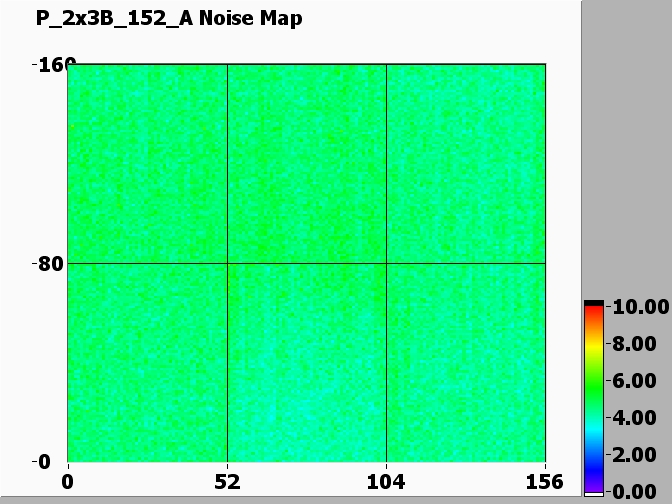

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	130	110	115	150	110	140
Vsf	130	140	140	135	140	140
VoffsetOp	70	80	95	80	90	95
VIbias_PH	100	105	100	100	100	100

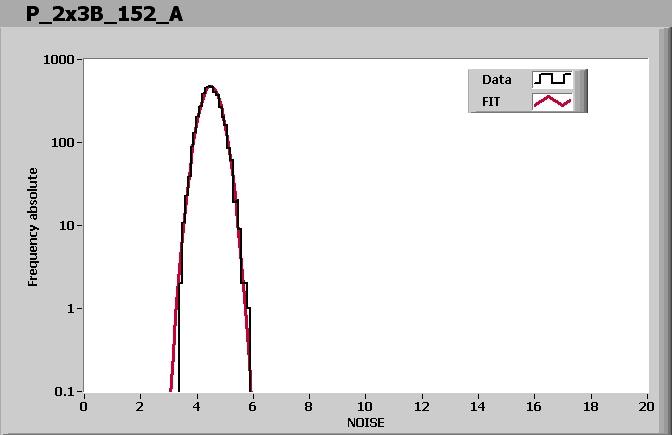

ROC0 NOISE			MEAN = 4.492647 SIGMA = 0.348306

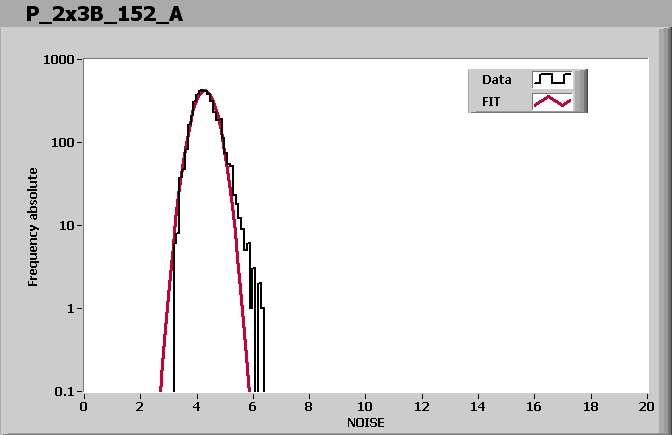

ROC1 NOISE			MEAN = 4.278296 SIGMA = 0.383183
ROC2 NOISE			MEAN = 4.359199 SIGMA = 0.344764

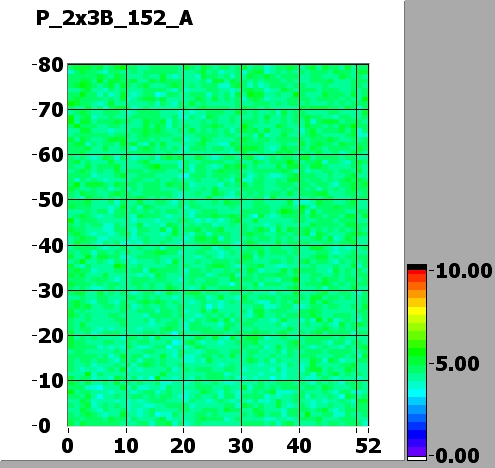

ROC3 NOISE			MEAN = 4.421671 SIGMA = 0.358766
ROC4 NOISE			MEAN = 4.632736 SIGMA = 0.370862

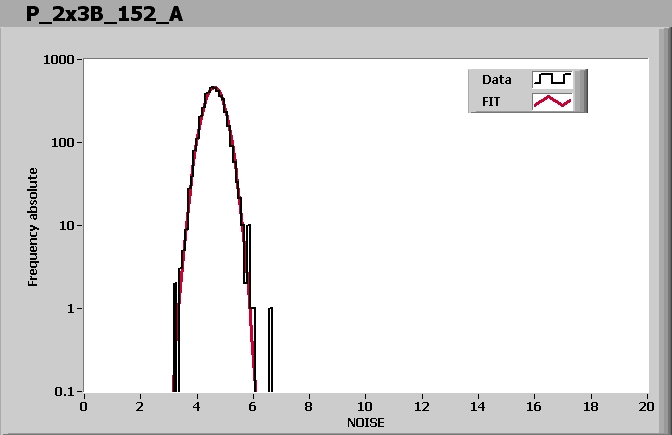

ROC5 NOISE			MEAN = 4.615291 SIGMA = 0.360114

Comment (if any): User error.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 3:49 PM

Ibias_DAC, Ibias_DAC Data	144	146	154	138	142	134
Vana, VanaData	120	131	135	112	141	127
CalDelData and plots	79	84	80	97	94	88
VthrCompData and plots	77	75	89	67	75	80
TestDdata ,TestD Plots	0	0	0	0	0	0
LightData ,Light Plots	4160	4160	4160	4160	4160	4160
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	BAD	BAD	BAD	BAD	BAD	BAD
