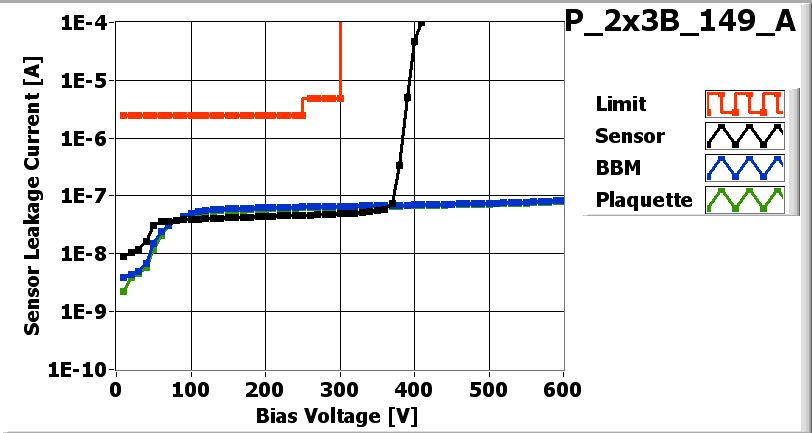

![[IMAGE] of](P_2x3B_149_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_149_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 1/18/2007
| Part | ID |
|---|---|
| BBM | BBM_149-2x3B |
| VHDI | 2x3_392 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W31_X44K5UT | 40D |
| ROC1 | W31_X44K5UT | 58D |
| ROC2 | W31_X44K5UT | 58C |
| ROC3 | W31_X44K5UT | 22B |
| ROC4 | W31_X44K5UT | 23C |
| ROC5 | W31_X44K5UT | 24B |
Inspected by Arndt Kirk on date 1/31/2007
| LR_dev | 0.086 |
| LL_dev | 0.113 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for testing on 1/31/2007 by Arndt Kirk
P_2x3B_149_Aon 2/2/2007 12:09 PM
P_2x3B_149_Aon 2/2/2007 12:09 PM
PLAQUETTE TESTED on 2007-02-02 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 122 | 142 | 132 | 130 | 122 | 144 | |
| Vana | 149 | 127 | 134 | 135 | 107 | 131 | |
| Cal_Del | 81 | 84 | 96 | 68 | 95 | 83 | |
| Vthrs_Comp | 84 | 74 | 73 | 70 | 56 | 76 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 2 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 2 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

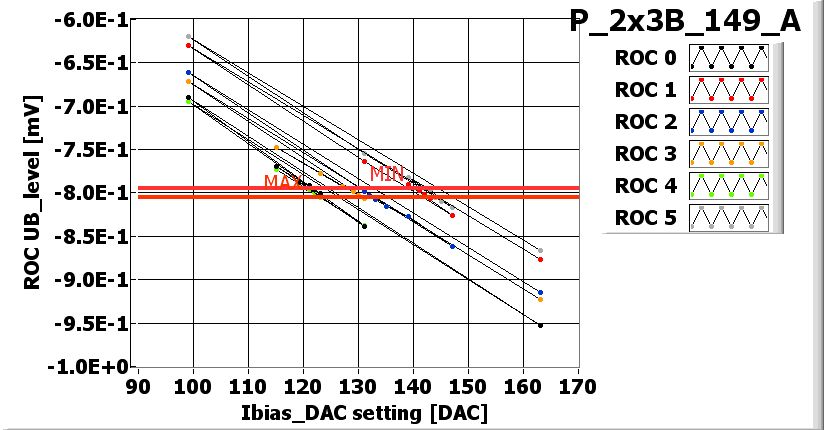

![[IMAGE] of](P_2x3B_149_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

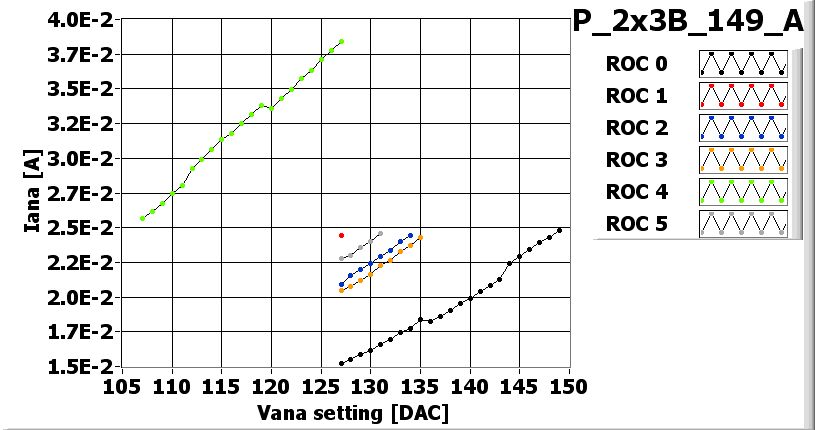

![[IMAGE] of](P_2x3B_149_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_149_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_149_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_149_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_149_Ano-bump-light.jpg) |
LIGHT_XML-File |

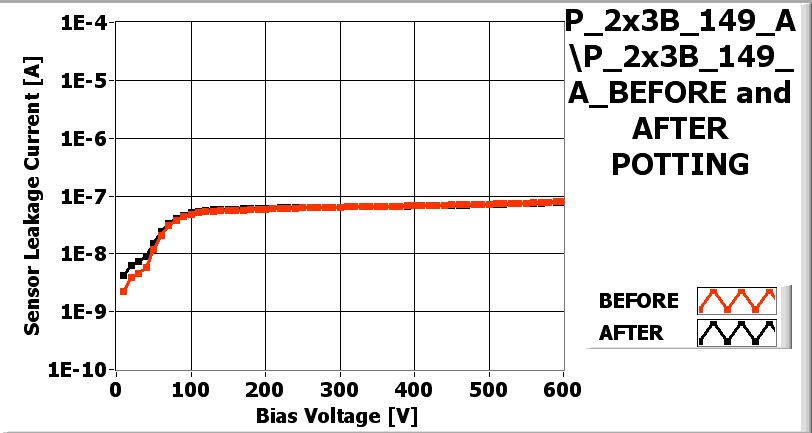

PLAQUETTE READY TO BE POTTED
