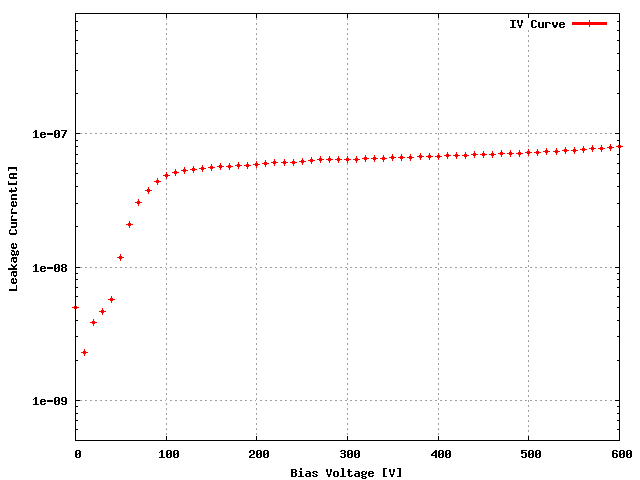

Sensor: S_2x3B_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W31_X44K5UT | 40D |
ROC1 | W31_X44K5UT | 58D |
ROC2 | W31_X44K5UT | 58C |
ROC3 | W31_X44K5UT | 22B |
ROC4 | W31_X44K5UT | 23C |
ROC5 | W31_X44K5UT | 24B |
Ibias_DAC, Ibias_DAC Data | 122 | 142 | 132 | 130 | 122 | 144 |
Vana, VanaData | 149 | 127 | 134 | 135 | 107 | 131 |
CalDelData and plots | 81 | 84 | 96 | 68 | 95 | 83 |
VthrCompData and plots | 84 | 74 | 73 | 70 | 56 | 76 | Depletion Voltage is -50 and suggested operational voltage is -90
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 3 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:28 PM
