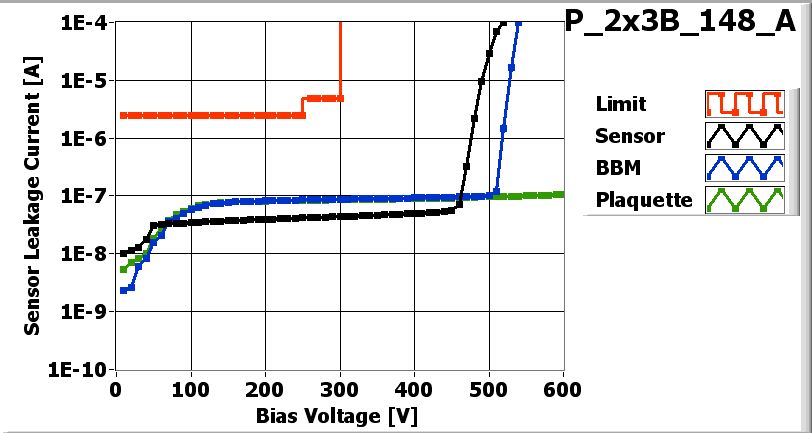

![[IMAGE] of](P_2x3B_148_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_148_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 2/15/2007
| Part | ID |
|---|---|
| BBM | BBM_148-2x3B |
| VHDI | 2x3_469 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W29_X64K5ST | 13A |
| ROC1 | W29_X64K5ST | 12D |
| ROC2 | W29_X64K5ST | 12C |
| ROC3 | W33_XC4K5LT | 61A |
| ROC4 | W33_XC4K5LT | 61C |
| ROC5 | W33_XC4K5LT | 61D |
Inspected by Lockwood Gale on date 2/20/2007
| LR_dev | 0.110 |
| LL_dev | 0.111 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. ROC 4, channel 35 and Roc 3 channel 1 two attempts to bond. No other problems. |
PLAQUETTE made READY for testing on 2/20/2007 by Lockwood Gale
PLAQUETTE encapsulated on 2/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/21/2007 by Ozhan Koybasi
P_2x3B_148_Aon 2/21/2007 11:55 AM
P_2x3B_148_Aon 2/21/2007 11:55 AM
PLAQUETTE TESTED on 2007-02-21 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 142 | 126 | 134 | 142 | 144 | 132 | |
| Vana | 134 | 134 | 131 | 127 | 129 | 127 | |
| Cal_Del | 70 | 93 | 82 | 85 | 66 | 92 | |
| Vthrs_Comp | 84 | 75 | 64 | 77 | 76 | 67 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

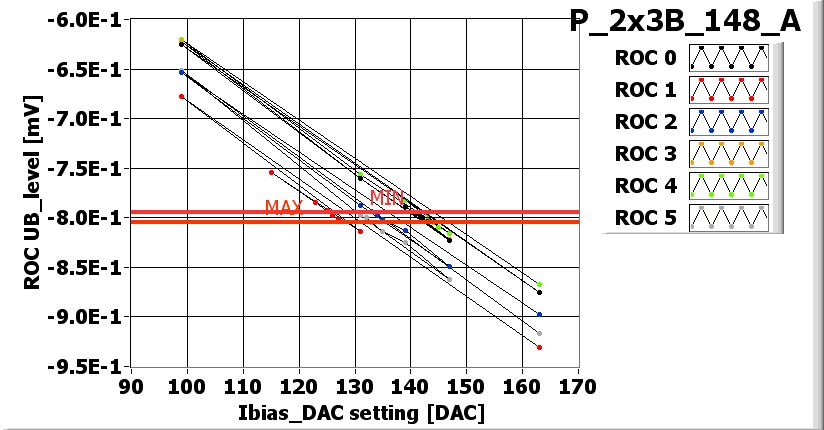

![[IMAGE] of](P_2x3B_148_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

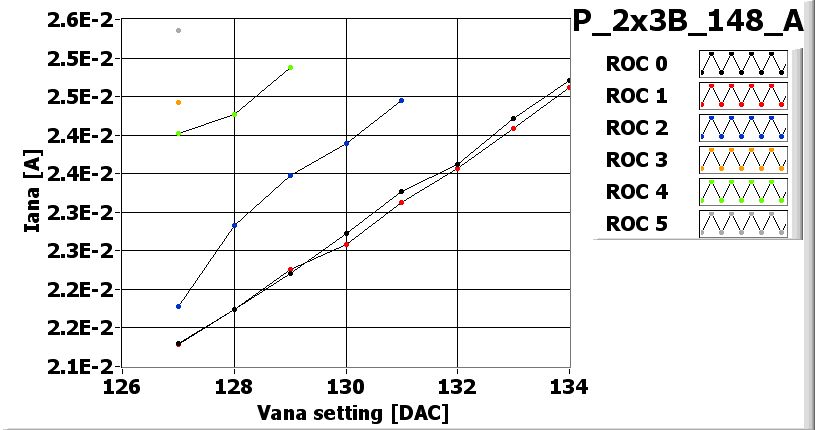

![[IMAGE] of](P_2x3B_148_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_148_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_148_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_148_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_148_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 130 | 100 | 120 | 110 | 130 | 95 |
| Vsf | 135 | 140 | 140 | 130 | 135 | 140 |
| VoffsetOp | 90 | 80 | 100 | 65 | 90 | 70 |
| VIbias_PH | 105 | 95 | 105 | 100 | 100 | 100 |

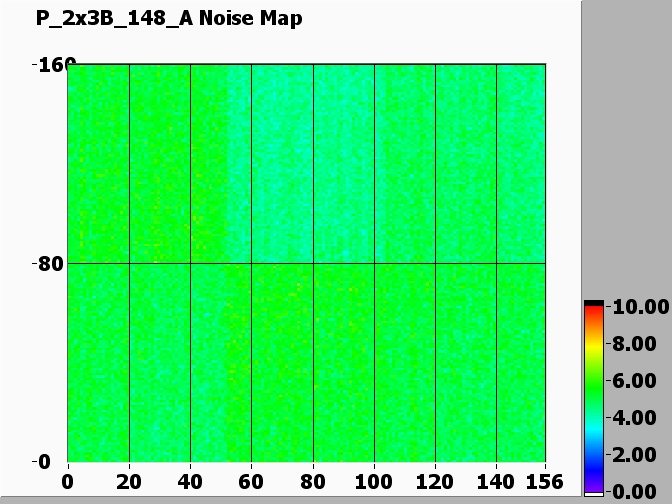

Noise MAP
![[IMAGE] of](P_2x3B_148_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_148_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
