P_2x3B_148

P_2x3B_148_A

Production testing

Date:2/21/2007

Operator: Cameron McKinney

start testing time:11:55 AM

Sensor: S_2x3B_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W29_X64K5ST 13A

ROC1 W29_X64K5ST 12D

ROC2 W29_X64K5ST 12C

ROC3 W33_XC4K5LT 61A

ROC4 W33_XC4K5LT 61C

ROC5 W33_XC4K5LT 61D

ROC	ROC wafer	Label
ROC0	W29_X64K5ST	13A
ROC1	W29_X64K5ST	12D
ROC2	W29_X64K5ST	12C
ROC3	W33_XC4K5LT	61A
ROC4	W33_XC4K5LT	61C
ROC5	W33_XC4K5LT	61D

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 142 126 134 142 144 132

Vana, VanaData 134 134 131 127 129 127

CalDelData and plots 70 93 82 85 66 92

VthrCompData and plots 84 75 64 77 76 67

TestDdata ,TestD Plots 0 0 0 0 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	130	100	120	110	130	95
Vsf	135	140	140	130	135	140
VoffsetOp	90	80	100	65	90	70
VIbias_PH	105	95	105	100	100	100

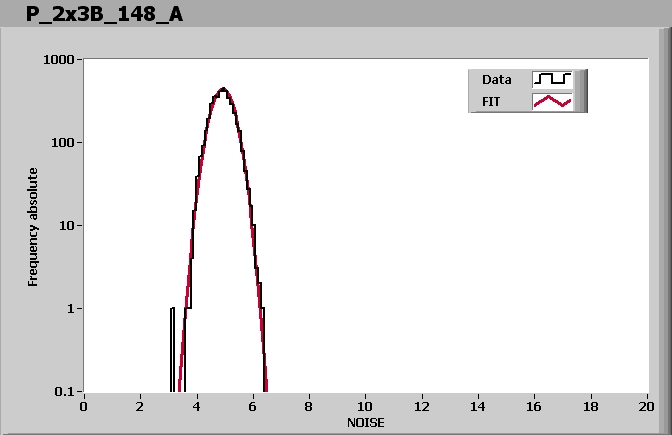

ROC0 NOISE			MEAN = 4.916953 SIGMA = 0.377837

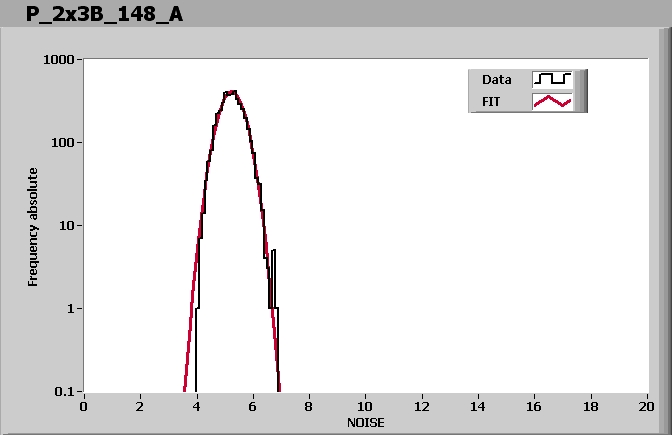

ROC1 NOISE			MEAN = 5.238328 SIGMA = 0.413295
ROC2 NOISE			MEAN = 4.986136 SIGMA = 0.378853
ROC3 NOISE			MEAN = 4.700148 SIGMA = 0.388856
ROC4 NOISE			MEAN = 4.383605 SIGMA = 0.349080
ROC5 NOISE			MEAN = 5.232073 SIGMA = 0.410540

Comment (if any): Good.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:15 PM

Ibias_DAC, Ibias_DAC Data	142	126	134	142	144	132
Vana, VanaData	134	134	131	127	129	127
CalDelData and plots	70	93	82	85	66	92
VthrCompData and plots	84	75	64	77	76	67
TestDdata ,TestD Plots	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
