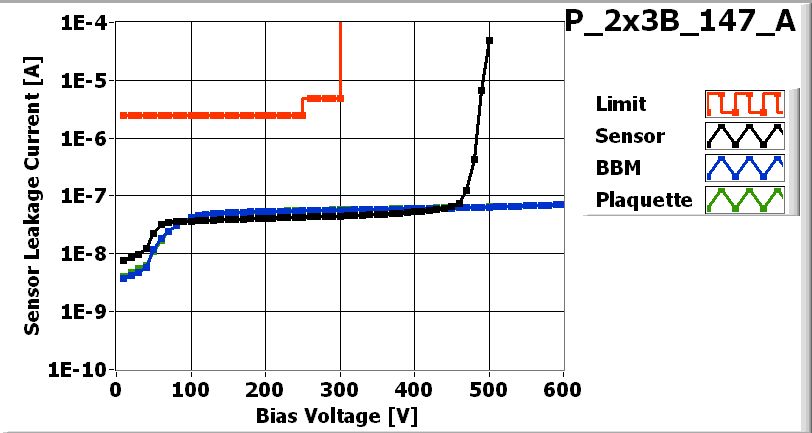

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_147_A_LASER.jpg)

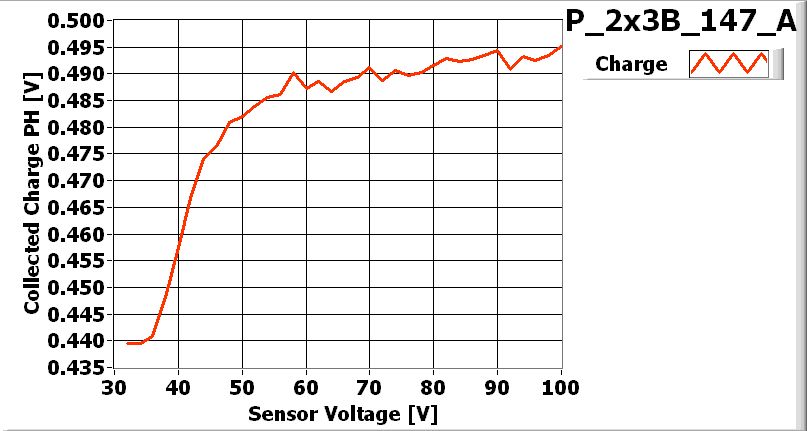

| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 1/19/2007
| Part | ID |
|---|---|
| BBM | BBM_147-2x3B |
| VHDI | 2x3_394 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W30_X74K5RT | 55C |
| ROC1 | W30_X74K5RT | 55A |
| ROC2 | W30_X74K5RT | 54D |
| ROC3 | W30_X74K5RT | 49B |
| ROC4 | W30_X74K5RT | 49C |
| ROC5 | W30_X74K5RT | 30A |
Inspected by Arndt Kirk on date 2/1/2007
| LR_dev | 0.100 |
| LL_dev | 0.098 |
| FINAL COMMENT by Arndt Kirk | Failed to release vacuum on sensor. No wirebond problem. |
PLAQUETTE made READY for testing on 2/1/2007 by Arndt Kirk
P_2x3B_147_Aon 2/1/2007 4:01 PM
P_2x3B_147_Aon 2/1/2007 4:01 PM
PLAQUETTE TESTED on 2007-02-01 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 146 | 144 | 142 | 142 | 148 | 142 | |
| Vana | 144 | 143 | 130 | 130 | 145 | 127 | |
| Cal_Del | 80 | 84 | 85 | 70 | 72 | 72 | |
| Vthrs_Comp | 78 | 83 | 86 | 90 | 89 | 86 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 1 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 1 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3B_147_A_Ibias-dac.jpg) |

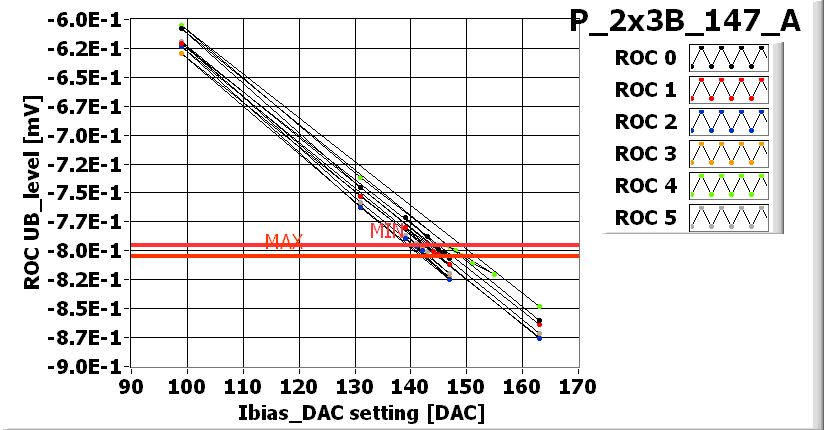

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3B_147_A_Vana.jpg) |

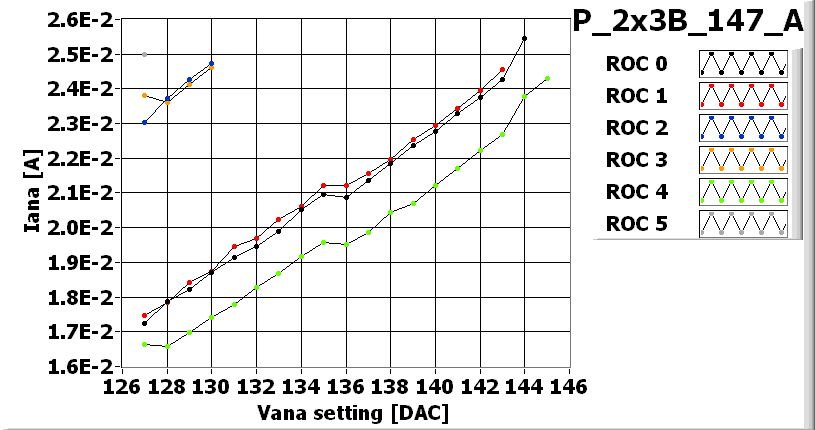

VANA_XML-File |
![[IMAGE] of](P_2x3B_147_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_147_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_147_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_147_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
