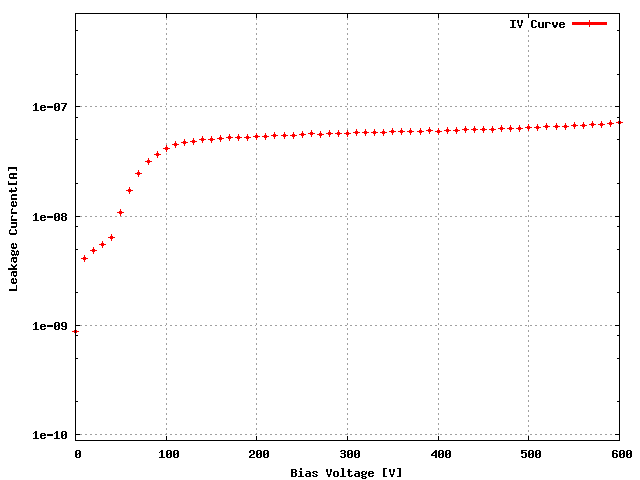

Sensor: S_2x3B_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W30_X74K5RT | 55C |
ROC1 | W30_X74K5RT | 55A |
ROC2 | W30_X74K5RT | 54D |
ROC3 | W30_X74K5RT | 49B |
ROC4 | W30_X74K5RT | 49C |
ROC5 | W30_X74K5RT | 30A |
Ibias_DAC, Ibias_DAC Data | 146 | 144 | 142 | 142 | 148 | 142 |
Vana, VanaData | 144 | 143 | 130 | 130 | 145 | 127 |
CalDelData and plots | 80 | 84 | 85 | 70 | 72 | 72 |
VthrCompData and plots | 78 | 83 | 86 | 90 | 89 | 86 | Depletion Voltage is -50 and suggested operational voltage is -90
TestDdata ,TestD Plots | 0 | 0 | 1 | 1 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 4:19 PM
